A CD2-Green Fluorescence Protein-Transgenic Mouse Reveals Very Late Antigen-4-Dependent CD8⁺ Lymphocyte Rolling in Inflamed Venules¹

T cells play a central role in immune responses to pathogens and in autoimmune disease (1, 2). Ag recognition by a T cell in the context of an appropriate MHC molecule on the surface of an APC leads to T cell activation and clonal expansion. Recruitment of Ag-specific T cells to sites of inflammation requires extravasation of these cells from the blood across the endothelial barrier into the inflamed tissue. Selectin and integrin adhesion molecules expressed on the surface of lymphocytes and endothelial cells (ECs)⁴ as well as chemokines and their receptors are thought to play an important role in effector lymphocyte-EC interactions (3, 4), but no such interaction has ever been observed in vivo.

The cellular and molecular mechanisms governing lymphocyte migration have been investigated in vitro for lymphocyte rolling and adhesion to plate-bound adhesion molecules or to tissue sections (5, 6). These assays have been extremely useful in defining adhesion molecules and their receptors. In vivo, cellular trafficking has been addressed using radiolabeled lymphocytes derived from the skin and the gut (7, 8).

Although the molecular mechanisms underlying the trafficking of naive lymphocytes to peripheral lymph nodes and Peyer’s patches has been studied in great detail (4, 9, 10), little is known about how CD8⁺ T cells get access to inflamed tissues. Based on evidence from homing of CD8⁺ T cell clones to the lung (11), islets of Langerhans (12), internal elastic lamina and lamina propria of the gut (13), and other inflamed tissues, it is clear that lymphocyte activation is required for recruitment of effector T cells. The sequence of events required is thought to encompass rolling, activation, arrest, and transmigration, akin to the paradigm known for neutrophil recruitment (10). However, it has not been possible to directly demonstrate the adhesion cascade for CD8⁺ effector T cells in vivo, nor is the adhesion molecule usage in different steps known.

In contrast to neutrophils, most lymphocytes express significant amounts of α₄ integrins, including α₄β₁ (very late Ag-4, VLA-4) and α₄β₇ (14). VLA-4 has been shown to mediate lymphocyte rolling (15, 16) and can be rapidly activated, which leads to enhanced adhesiveness (17). Beyond its role in lymphocyte trafficking, VLA-4 is important in the recruitment of monocytes (18), eosinophils (19), and hemopoietic progenitor cells (20). The avidity regulation of VLA-4 can be triggered by tethered chemokines binding to their receptors (17), but the molecular signaling mechanisms underlying increased α₄ integrin avidity are not known.

Direct observation of cellular movement in the microvasculature in real time has become possible using intravital microscopy (21). This technique has permitted analysis of leukocyte-EC interactions that occur before a leukocyte can extravasate from the circulation into the tissue (22, 23). One limitation of this technique is its inability to identify individual cell types under observation, with the exception of one report identifying rolling neutrophils (24). This limits assessment of cellular interaction of a specific cell type with the endothelium. Recently, a CD4-green fluorescence protein (GFP)-transgenic mouse has been described to study CD8⁺ T cell differentiation in vivo (25). However, activated T cells lose GFP expression in the CD4-GFP mouse, making it less suitable for in vivo studies of effector T cell trafficking. Here, we describe the development of a transgenic mouse expressing enhanced GFP (EGFP) in T cells under a CD2 promoter with GFP expression even in activated T cells. We demonstrate that this mouse is a useful research tool for selective analysis of T cell rolling and adhesion during inflammation in vivo.

An EcoRI/NotI (blunted) fragment of pEGFP-N1 (Clontech, Palo Alto, CA) was cloned into the EcoRI/SmaI sites between the human CD2 promoter and the CD2 locus control region of the pBS CD2 construct (26). The construct (see Fig. 1) was tested for GFP expression in transient transfection of cultured Jurkat cells. The construct was then prepared for pronuclear injection into fertilized B6CBA/F₁ eggs by removing the plasmid backbone by a KpnI/NotI digestion and subsequent agarose gel purification. Transgenic mice were generated using standard microinjection techniques at the University of Virginia Transgenic Mouse Core Facility (Charlottesville, VA). Tail DNA was analyzed for the transgene by PCR, and tail bleeds from transgene positive mice were analyzed for GFP expression by flow cytometry. Founder animals were backcrossed into C57BL/6J wild-type mice for six generations and maintained at the University of Virginia Center for Comparative Medicine. Mice were used between 7 and 12 wk of age. EGFP⁻ littermates served as controls. All experiments were conducted according to protocols approved by the University of Virginia Institutional Animal Care and Use Committee.

To characterize surface Ag expression of EGFP⁺ cells, peripheral blood leukocytes, lymph node cells, and splenocytes from EGFP⁺ mice were labeled with PE-conjugated anti-mouse Abs (all obtained from BD Phar Mingen, San Diego, CA): anti-CD2 (clone RM2-5), anti-CD4 (clone RM4-5), anti-CD8α (clone 53-6.7), anti-CD8β (clone 53-5.8), anti-CD3 (clone 17A2), anti-TCR-β (clone H57-597), anti-NK1.1 (clone PK136), anti-CD45RA/B220 (clone RA3-6B2), anti-CD19 (clone 1D3), anti-CD11b (clone M1/70), anti-Ly-6G (clone RB6-8C5). After RBC lysis with a 1.5 M NH₄Cl solution, all samples were run on a FACScan flow cytometer (BD Biosciences, San Jose, CA). Data analysis was performed using CellQuest software (BD Biosciences). Activated splenocytes were labeled with PE-conjugated anti-mouse Abs to activation markers CD25 (clone M-A251), CD69 (clone FN50), and CD44 (clone C26) and analyzed as described above.

Splenocytes were plated at 4 × 10⁵ cells per well in 96-well flat-bottom plates after RBC lysis and were stimulated with graded doses of Con A (Sigma, St. Louis, MO), anti-CD3ε Ab clone 145-2C11 (BD PharMingen), or with 10 ng/ml PMA (Sigma) plus 500 ng/ml ionomycin (Sigma) for 48 h. Controls were run in parallel without any stimulation. Plates were pulsed with 1 μCi of ³H per well for the last 12 h of the assay, and thymidine incorporation was analyzed by liquid scintillation spectroscopy (LKB Pharmacia, Uppsala, Sweden). Data are expressed as mean values of triplicate measurements ± SD. For the IL-2 assay, culture supernatants were harvested 24 h poststimulation, and IL-2 levels in the supernatant were estimated using an IL-2 ELISA kit (BD PharMingen) as per manufacturer’s instructions.

Before surgery, mice were injected with an intrascrotal injection of 250 ng murine rTNF-α (Genzyme, Cambridge, MA) for 3–6 h, 2.5 μg murine rIFN-γ (Sigma) for 6 h, and 10 U hirudin (Sigma) in 220 μl isotonic saline. Mice were anesthetized with i.p. injections of ketamine (125 μg/g body weight; Ketalar; Parke-Davis, Morris Plains, NJ), xylazine (12.5 μg/g body weight; Phoenix Scientific, St. Joseph, MO), and atropine sulfate (0.025 μg/g body weight; Elkins-Sinn, Cherry Hill, NJ), placed on a heating pad to maintain body temperature, and prepared for intravital microscopy (27). The cremaster muscle was prepared as described and superfused with thermocontrolled (35°C) HCO₃-buffered saline (22). Microscopy of the cremaster muscle was performed using an intravital microscope (Axioskop; Carl Zeiss, Thornwood, NY) with a ×40 saline immersion objective (SW 40/0.75). Vessels to be analyzed were chosen on the basis of video image clarity and resolution. Using stroboscopic (30 flashes/s) epifluorescence, intravital microscopy allowed for a clear differentiation between EGFP^high and EGFP^low cells (see Fig. 2). Vessels were recorded on videotape (S-VHS recorder; Panasonic, Osaka, Japan) with a SIT camera (SIT 66; DAGE-MTI, Michigan City, IN). Mean blood flow velocity, based on centerline RBC velocity (Circusoft; www.circusoft.com), and wall shear rates were calculated as described elsewhere (28). The flux fraction of EGFP^high cells was calculated by dividing the counted number of EGFP^high cells passing a line perpendicular to the vessel by the total leukocyte (white blood cell) flux in the same vessel.

Rolling velocities of single leukocytes along a venule segment were determined for several leukocytes in postcapillary venules (diameter 30–90 μm). All leukocyte displacements and velocities were measured on a Macintosh computer (Apple Computer, Cupertino, CA) using the public domain NIH Image program (developed at the National Institutes of Health and available on the internet at http://rsb.info.nih.gov/nih-image/). The rolling velocity was calculated as displacement in micrometers per second.

Individual rolling EGFP^high cells were tracked from the time entering a large postcapillary venule (diameter >50 μm) until the cells were lost. Displacements of tracked EGFP^high cells were measured offline every tenth frame for the entire observation period. After tracking two to four EGFP^high cells per vessel observed, animals were injected with 30 μg mAb PS/2 directed against murine α₄ integrin intra-arterially; 10 min later, the tracking experiments were continued studying one to four EGFP^high cells in the same vessel. In separate experiments, P-selectin mAb RB40.34 (a gift from D. Vestweber, Münster, Germany), E-selectin mAb 9A9 (a gift from B. Wolitzky, Hoffman-La Roche, Nutley, NJ), L-selectin mAb MEL-14 (American Type Culture Collection, Manassas, VA), or CD44 mAb KM81 (American Type Culture Collection) were injected at 30 μg/mouse i.v. Blood samples for white blood cell counts were taken immediately before and 5 min after Ab injection.

All data are given as mean ± SEM. Statistical analysis was performed using Student’s t test, Mann-Whitney rank sum test, and ANOVA on ranks test. Differences were considered statistically significant if p < 0.05.

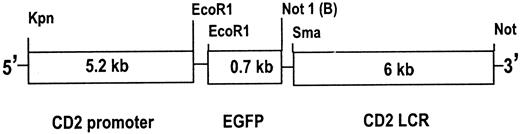

To generate CD2-EGFP⁺-transgenic mice, the EGFP coding sequence was placed under control of the human CD2 promoter and locus control region (Fig. 1). This strategy has been shown to result in a position-independent, copy number-dependent T cell-specific expression of the desired gene product (26). Microinjection of the construct into B6CBA/F₁ fertilized eggs resulted in two positive founders, identified by PCR, tail bleeding, and subsequent flow cytometry. These mice were backcrossed into C57BL/6 wild-type mice. Whereas offspring from one founder lost EGFP expression past N3, offspring from founder two revealed a stable EGFP expression throughout (N7 today).

Using intravital microscopy of the cremaster muscle, we sought to visualize EGFP⁺ cell trafficking in vivo. However, in two well-known models of inflammation in the cremaster muscle, with or without TNF-α pretreatment (22), no or only short, transient interactions between EGFP⁺ cells and the endothelium could be observed. No stable rolling of EGFP⁺ cells was seen in either model. Because pretreatment of ECs with both TNF-α and IFN-γ has been shown to lead to firm adhesion of activated T lymphocytes in vitro (29), cremaster muscles were pretreated with a combination of TNF-α for 3–6 h and IFN-γ for 6 h. This resulted in stable of EGFP⁺ cells rolling at a median velocity similar to that of neutrophils (11 μm/s), as well as occasional adhesion and transmigration. Intravital microscopy was able to distinguish between EGFP^high and EGFP^low cells (Fig. 2). EGFP^high cells accounted for 0.7% of all leukocytes.

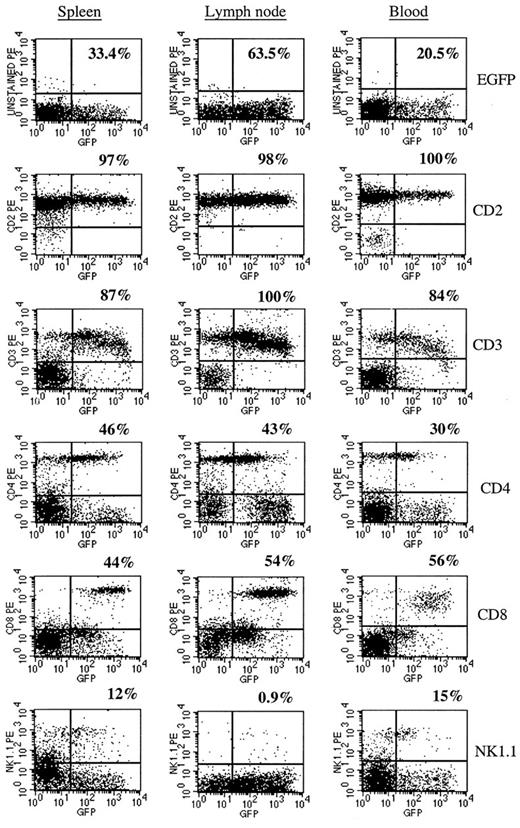

Analysis of EGFP expression in splenocytes, peripheral lymph node cells, and leukocytes in peripheral blood shows 33.4, 63.5, and 20.5% of cells positive for EGFP in the spleen, lymph node, and peripheral blood, respectively (Fig. 3). Ninety-seven to 100% of all EGFP⁺ cells express CD2. Both CD4 as well as CD8 T cells in all three tissues express EGFP. CD4 T cells are predominantly EGFP^low, whereas CD8 T cells are EGFP^high. Between 0.9 and 15% of EGFP^low cells express NK1.1 in these tissues (Fig. 3). B cells, macrophages, and granulocytes do not express EGFP (data not shown). Because intravital microscopy uses an epifluorescent microscope to visualize cells, we looked at the intensity of EGFP in these two T cell subsets under the epifluorescent microscope after sorting the EGFP^low CD4 T cells and EGFP^high CD8 T cells. Clearly, CD4 T cells show very poor fluorescence, whereas CD8 T cells appear to be very bright (Fig. 4 A).

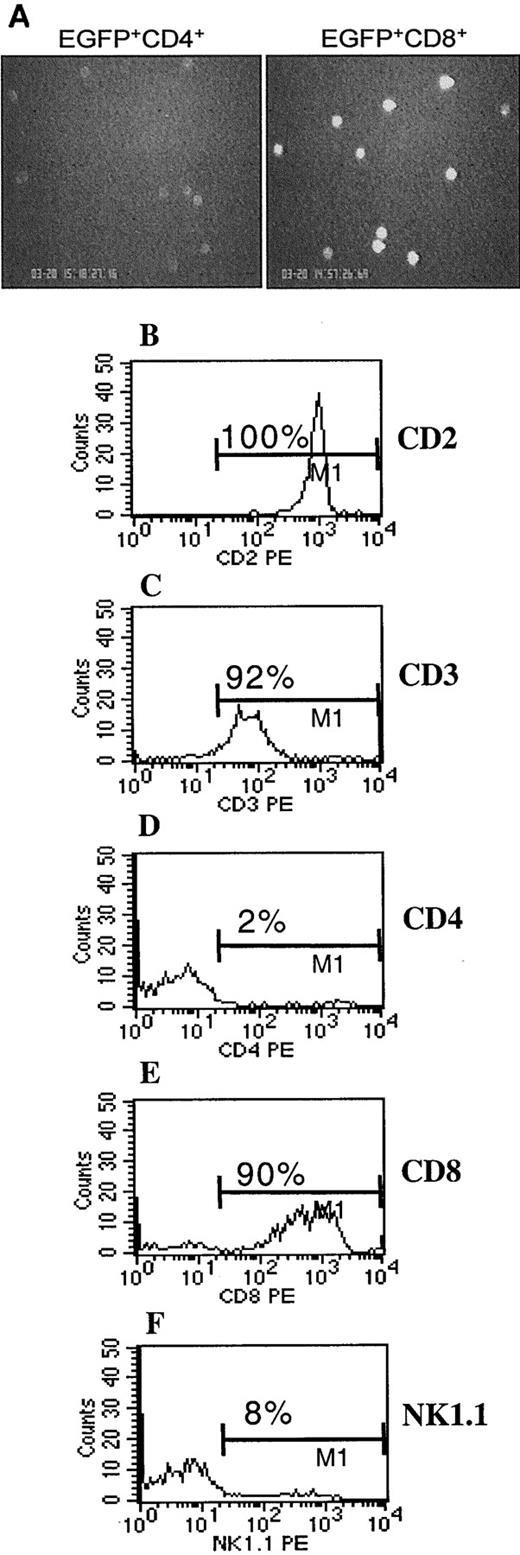

EGFP^high cells in peripheral blood accounted for ∼0.7% of all leukocytes as determined by intravital microscopy. The brightest 1.0% of all analyzed cells were CD2⁺, 90% of the EGFP^high cells were CD8 T cells, 2.5% were CD4 T cells, and 8% stained positive for the NK1.1 marker (Fig. 4 B). These findings identify peripheral blood EGFP^high cells in our EGFP-transgenic mouse as predominantly CD8⁺ lymphocytes.

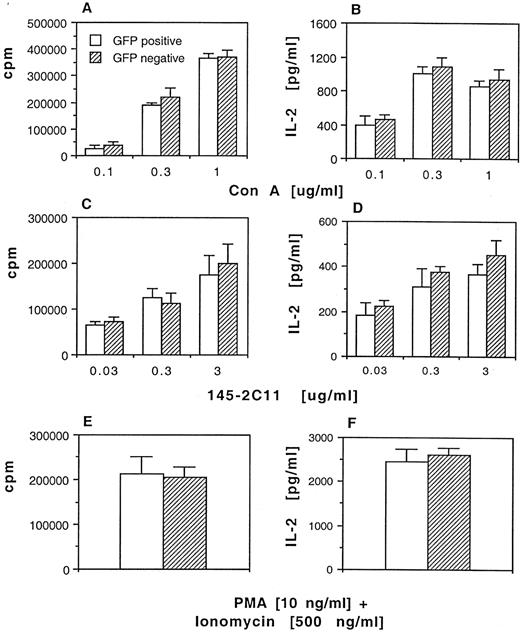

Stimulation of splenocytes from EGFP⁺ and EGFP⁻ mice with anti-CD3ε Ab, Con A, or PMA showed similar rates of proliferation (Fig. 5, A, C, and E) and IL-2 secretion (Fig. 5, B, D, and F). These data suggest that the transgene did not impair lymphocyte function.

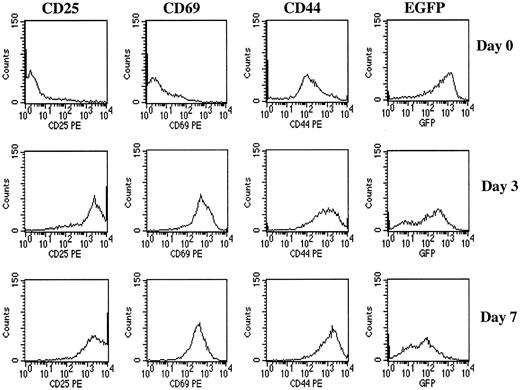

Upon stimulation with an anti-CD3 Ab, all EGFP⁺ cells expressed cell surface activation markers CD25, CD69, and increased levels of CD44 on day 3 and 7 postactivation (Fig. 6). In a previously reported GFP-transgenic mouse (25), anti-CD3 Ab-activated CD8⁺ T cells showed loss of GFP expression by day 7. In our mice, the activated CD8⁺ T cells continued to express EGFP, albeit at lower levels, even on day 7 (Fig. 6), thereby indicating that EGFP expression is not lost postactivation.

To address the molecular mechanisms of rolling of CD8⁺ T cells in inflamed venules in vivo, we blocked several endothelial and leukocyte adhesion molecules using mAbs. Injection of blocking concentrations of Abs to P-selectin, E-selectin, or L-selectin failed to alter the rolling velocities of EGFP^high cells (Fig. 7,A and data not shown) as well as total leukocytes in the transgene-negative littermate controls (Fig. 8,A). Although the rolling velocities did not change after blocking P- or E-selectin, the rolling flux fraction was altered significantly after blocking both P- and E-selectin in the transgene-negative littermate controls (Fig. 8,B). After injection of the α₄ integrin mAb PS/2, the average rolling velocity of EGFP⁺ cells was significantly elevated from 11 to 24 μm/s (Fig. 7,B and Table I). This indicates that α₄ integrin is required to stabilize rolling of these CD8⁺ T cells in inflamed venules in vivo. We also investigated the role of CD44 in CD8 T cell rolling as a candidate other than α₄ integrin. As shown in Fig. 7 C, CD44 does not contribute to CD8 T cell rolling in our model, as blocking CD44 with an anti-CD44 Ab, KM81, did not alter the rolling velocity. Unknown selectin- and CD44-independent mechanisms prevent EGFP^high cells from detaching even when α₄ integrins are blocked.

Intravital microscopy is as a powerful tool for real-time analysis of inflammatory cell rolling, adhesion, and migration in vivo (21). However, this technique does not permit identification of individual cell types during observation. Currently, for this purpose, cells are purified in vitro, labeled with fluorescent dyes, and reinjected in the host for analysis. Handling of cells in vitro during the isolation procedure could lead to perturbation of cell surface molecules and change the activation status of a cell (30). To avoid this, it would be desirable to identify cells in vivo, without having to handle them in vitro, before analysis. To address this issue, we generated transgenic mice that express EGFP in T cells for direct observation in vivo.

Using intravital microscopy, it was possible to identify EGFP^high and EGFP^low cells in the peripheral blood (Fig. 2) of untreated, EGFP-transgenic mice. EGFP^high cells are most readily detected by intravital microscopy and accounted for ∼0.7% of peripheral blood leukocytes. Ninety percent of these cells are comprised of CD8 T cells, 2% of CD4 T cells, and 8% of NK cells, with no B cells, monocytes, or neutrophils. The fluorescence intensity of EGFP was at least one decade higher in CD8⁺ T cells compared with CD4⁺ T cells as analyzed by flow cytometry (Fig. 3) and by epifluorescent microscopy (Fig. 4 A). Taken together, these data show that almost all EGFP ^high cells are CD8 T cells.

Introduction of the transgene did not perturb T cell function, because the T cells from EGFP⁺ mice were comparable to those from transgene-negative littermates, as assessed by T cell proliferation and IL-2 production. In a previously reported GFP-transgenic mouse (25), anti-CD3 Ab-activated CD8⁺ T cells showed loss of EGFP expression by day 7. In the transgenic mice reported here, although activation of T cells using an anti-CD3 Ab led to a down-regulation of EGFP expression in CD8⁺ T cells, the majority of these activated cells (∼80%) continue to express EGFP even on day 7 postactivation (Fig. 6).

Recruitment of neutrophils is known to be achieved through a series of well-defined interactions between the neutrophil and EC that encompass rolling, activation, and arrest followed by transmigration (10). Lymphocytes are thought to be recruited through a similar mechanism (31), and a multistep process has clearly been shown for homing of naive lymphocytes to secondary lymphatic organs (4, 32), but not for effector T cells. Selectin and integrin molecules appear to play an important role in migration of T cells to sites of inflammation. E- and P-selectin are involved in CD4⁺ T cell migration into inflamed skin (33, 34), whereas migration of activated CD8⁺ T cells to sites of viral infection appears to be selectin independent (35). Integrins like VLA-4, LFA-1, and Mac-1 and their ligands ICAM-1 and VCAM-1 appear to be important for CD8⁺ T cell recruitment in a lymphocyte choriomeningitis virus infection model (36, 37, 38, 39). Another integrin, α₄β₇, plays an important role in entry of T cells into the lamina propria and Peyer’s patches (40). Despite this information, it has not been possible to directly demonstrate the adhesion cascade for CD8⁺ effector T cells in vivo, nor is the adhesion molecule usage in different steps known.

Using the CD2-EGFP-transgenic mouse, we have begun to address the adhesion cascade for CD8⁺ T cells in vivo. In the present study, we analyzed the role for P-, E-, and L-selectin, CD44, and VLA-4 in rolling and adhesion of EGFP^high T cells to inflamed endothelium in vivo. Blocking P-, E-, or L-selectin alone or in combination did not change the rolling velocities of these cells (Fig. 7,A and data not shown). Although the CD44 ligand, hyaluronate, is known to be up-regulated by TNF-α treatment (41), blocking CD44 did not alter the rolling velocity (Fig. 7,C) indicating CD44-independent rolling of EGFP^high T cells on the inflamed endothelium in our model. Injection of anti-α₄ Ab increased the rolling velocity of EGFP^high cells significantly from 11 to 24 μm/s (Fig. 7,B and Table I). This 2-fold increase indicates a dependence on α₄ integrin for slow rolling of T cells on inflamed endothelium. Surface expression of α₄ integrin appears to be important in T cell recruitment as the presence of this molecule has been shown to enhance the pathogenicity of T cell clones by virtue of their ability to transmigrate through the endothelium in the experimental autoimmune encephalomyelitis model (42), and the levels of VLA-4 on the cell surface have been correlated to the degree of protection conferred by CD8⁺ T cell clones in an animal model of malaria (43).

Interestingly, pretreatment with either TNF-α alone or IFN-γ alone failed to induce any stable rolling of the EGFP^high cells. Pretreatment with TNF-α alone is sufficient for rolling and arrest of neutrophils (27). In this model, the data suggests that IFN-γ plus TNF-α produces conditions not induced by TNF-α alone. It is possible that IFN-γ-dependent chemokine up-regulation may contribute to CD8 T cell rolling and/or adhesion. For example, IFN-γ alone or in combination with TNF-α is known to up-regulate the CXCR3 ligand IFN-inducible T cell α chemoattractant in human ECs (44). However, the present study does not address the potential role of chemokines.

In conclusion, we use a novel CD2-EGFP-transgenic mouse to show that CD8⁺ T cells use α₄ integrins to roll on inflamed endothelium in vivo. This mouse will be very useful in elucidating the adhesion cascade involved in recruitment of CD8 T cells to sites of inflammation in vivo.

We thank Dr. Lou Hammarskjold for the CD2 construct, Jennifer Bryant and Michele Kirkpatrick for animal husbandry, William Ross for flow cytometry, and Dr. Sonia Pearson-White for microinjections. We also thank Dr. Larry Karns for assistance with transfection assays.
