Prostaglandin D₂ Causes Preferential Induction of Proinflammatory Th2 Cytokine Production through an Action on Chemoattractant Receptor-Like Molecule Expressed on Th2 Cells

Cytokine production from CD4⁺ Th2 cells plays an important role in orchestrating allergic responses. High local concentrations of IL-4, IL-5, and IL-13 are detected in both airway and bronchoalveolar lavage fluids from patients with inflammatory diseases such as asthma and are present at increased levels following allergen challenge (1, 2, 3). It has been reported that IL-4 plays a key role in driving the differentiation of CD4⁺ Th precursors into Th2 cells. IL-4 and IL-13 are potent activators of B cell Ab production, particularly IgE (4). IL-5 stimulates eosinophil release from bone marrow, and is chemotactic for eosinophils (5, 6). It also activates mature eosinophils and prolongs their survival (7). IL-13 has additional roles in hypersecretion of mucus and regulation of airway hypersensitivity (8). In contrast, IL-10 seems to have anti-inflammatory and immunosuppressive activities (9). How the production of Th2 cytokines is regulated in asthmatic patients is still thus far unclear. In this report, we will discuss the effect of PGD₂ on Th2 cytokine production.

PGD₂ is the major arachidonic acid metabolite released from mast cells during an allergic response (10, 11, 12). Two distinct G protein-coupled receptors have been identified as PGD₂ receptors. They are D prostanoid receptor (DP)⁴ and chemoattractant receptor-like molecule expressed on Th2 cells (CRTH2; also named DP2) (13). Although the precise mechanism through which PGD₂ manifests its proinflammatory effects in human airways is still under investigation, it has been reported that PGD₂ is capable of inducing the chemotaxis of eosinophils, basophils, and Th2 cells (13, 14, 15) and can elicit eosinophilic inflammation when instilled into the airways of rats through a CRTH2-dependent mechanism (16, 17). A significant contribution of PGD₂ to the late-phase allergic reaction is suggested by enhanced eosinophilic lung inflammation and cytokine release in transgenic mice overexpressing PGD₂ synthase (18). It is not clear from these in vivo experiments the mechanism by which PGD₂ enhances Th2 cytokine production during allergic reactions. It has been suggested from an in vitro study that PGD₂ can enhance Th2 cytokine production in the presence of anti-CD3 and anti-CD28 costimulation (19), but the effect of PGD₂ in the absence of costimulation is unknown.

In this study, we have investigated the mechanism by which PGD₂ exerts its proinflammatory effect on human Th2 cytokine production. Interestingly, PGD₂ alone elicited the production of IL-4, IL-5, and IL-13 by Th2 cells without affecting the production of IL-10. Ramatroban (BAY u 3405), original defined as a thromboxane-like prostanoid receptor (TP) antagonist and recently identified to also be a potent CRTH2 antagonist (20, 21), abolished Th2 cell responses to PGD₂. This inhibition was mediated by CRTH2 because SQ29548, a specific TP antagonist, did not mimic the effect of ramatroban. This study illustrates a key mechanism whereby PGD₂ may contribute to Th2-mediated diseases through activation of CRTH2.

Recombinant human IL-2 and IL-4 were purchased from Sigma-Aldrich and R&D Systems Europe, respectively. [³H]PGD₂ was from Amersham Biosciences. PGD₂, 13,14-dihydro-15-keto-PGD₂ (DK-PGD₂), BW245C, BW868C, and SQ29548 were obtained from Cayman Chemical. Ramatroban was synthesized by Evotec-OAI. MACS CD4⁺ T cell isolation kit II and anti-human CRTH2 MicroBead kit were purchased from Miltenyi Biotec. QuantiGlo Human IL-4 Chemiluminescent Immunoassay kit, QuantiGlo Human IL-10 Chemiluminescent Immunoassay kit, Quantikine Human IL-5 Immunoassay kit, and Quantikine Human IL-13 Immunoassay kit were purchased from R&D Systems Europe. RNeasy Mini kit, Omniscript RT kit, and HotStar PCR kit were obtained from Qiagen. HitHunter Cyclic AMP II CL kit was obtained from DiscoverX. Other chemicals were from Sigma-Aldrich.

Th2 cells were prepared using a modified method described previously (22). Briefly, PBMC were isolated from buffy coats (National Blood Service) by Ficoll-Hypaque (Amersham Biosciences) density gradient centrifugation, followed by CD4-positive cell purification using MACS CD4⁺ T cell isolation kit II. After a 7-day culture in X-VIVO 15 medium (Cambrex BioScience) containing 10% human serum, 50 U/ml rhIL-2, and 100 ng/ml rhIL-4, CRTH2-positive cells were isolated from the CD4⁺ culture by positive selection using anti-human CRTH2 MicroBead kit. The harvested CD4⁺/CRTH2⁺ cells were treated as Th2 cells and were further amplified in X-VIVO 15 medium containing 10% human serum and 50 U/ml rhIL-2 before use.

Membranes of human Th2 cells were prepared for the binding assay. The cells were harvested by centrifugation at 300 × g for 10 min. After washing, the cells with a homogenizing buffer (1× HBSS supplemented with 10 mM HEPES (pH 7.3)), the cells were resuspended in the same buffer and centrifuged at 16,000 × g for 1 h at 4°C. The resulting pellet was resuspended in ice-cold buffer, homogenized with an Ultra Turrax homogenizer (setting 4–5), and aliquots of 200–500 μl were stored at −80°C until use. The protein concentration was determined by the Bradford method.

[³H]PGD₂ (160 Ci/mmol) binding experiments were performed as described previously (22). Cell membranes (30–40 μg) were preincubated at room temperature with varying concentrations of competing ligand for 15 min in 80 μl of 1× HBSS buffer supplemented with 10 mM HEPES (pH 7.3). Twenty microliters of [³H]PGD₂ (5 nM, final concentration) was then added, and the incubation continued for an additional 1 h at room temperature. Reactions were terminated by the addition of 200 μl of ice-cold assay buffer to each well, followed by rapid filtration through Whatman GF/B glass fiber filters using a Unifilter Cell harvester (PerkinElmer Life Sciences). The filters were washed six times with 300 μl/well ice-cold buffer. The Unifilter plates were dried at room temperature for at least 1 h, and the radioactivity retained on the filters was determined using a Beta Trilux counter (PerkinElmer Life Sciences), following addition of 40 μl of Optiphase Hi-Safe 3 (PerkinElmer Life Sciences) liquid scintillation. Nonspecific binding was defined in the presence of 10 μM unlabeled PGD₂.

The medium of Th2 cell cultures were collected after certain periods of treatment with various concentrations of agonists (PGD₂, DK- PGD₂, or BW245C) of PGD₂ receptors in the presence or in the absence of inhibitor at 37°C and 5% CO₂ as indicated in the results. The concentrations of IL-4, IL-5, IL-10, and IL-13 in the medium were assayed using ELISA kits according to the manufacturer’s instructions. The results were measured in a Victor² V-1420 multilabel HTS Counter (PerkinElmer Life Sciences).

Total RNA of Th2 cells after different treatments were extracted using a RNeasy Mini kit. The DNA-free total RNA samples were quantitated using a GeneQuant Pro (Biochrom). cDNA of the samples was prepared from the same starting amount of RNA using a Omniscript RT kit. PCR products were separated on an agarose gel and detected with a Fluor-S MAX2 Multimager (Bio-Rad). The intensity of ethidium bromide-stained bands was quantified using Quantity One software (Bio-Rad). mRNA level of cytokines was normalized with the level of GAPDH.

Primers used were as follows: IL-4, 5′-GCTGCCTCCAAGAACACAAC-3′ and 5′-CTCTGGTTGGCTTCCTTCAC-3′ generating a 221-bp fragment; IL-5, 5′-CTGCCTACGTGTATGCCATC-3′ and 5′-CTTTCCACAGTACCCCCTTG-3′ generating a 217-bp fragment; IL-10, 5′-CGAGATGCCTTCAGCAGAGT-3′ and GCCTTGATGTCTGGGTCTTG-3′ generating a 188-bp fragment; IL-13, 5′-CCTCAATCCTCTCCTGTTGG-3′ and 5′-GTCAGGTTGATGCTCCATACC-3′ generating a 206-bp fragment; and GAPDH, 5′-GCCACTCAGAAGACTGTGGATGGCC-3′ and 5′-GCAATGCCAGCCCCAGCATCAAAGG-3′ generating a 350-bp fragment.

Th2 cells were washed and resuspended in HBSS buffer. After pretreatment with 10 μM rolipram, the cells were incubated with various concentrations of compounds (PGD₂, BW245C, or PGE₂) in the presence of 0.5 mM IBMX for 30 min at 37°C. The cAMP level in the cells was determined using HitHunter Cyclic AMP II CL kit. The results were measured in a Victor² V-1420 multilabel HTS Counter.

Data were analyzed using Student’s one-tailed t test or one-way ANOVA followed by the Newman-Keuls test. Values of p < 0.05 were considered as statistically significant.

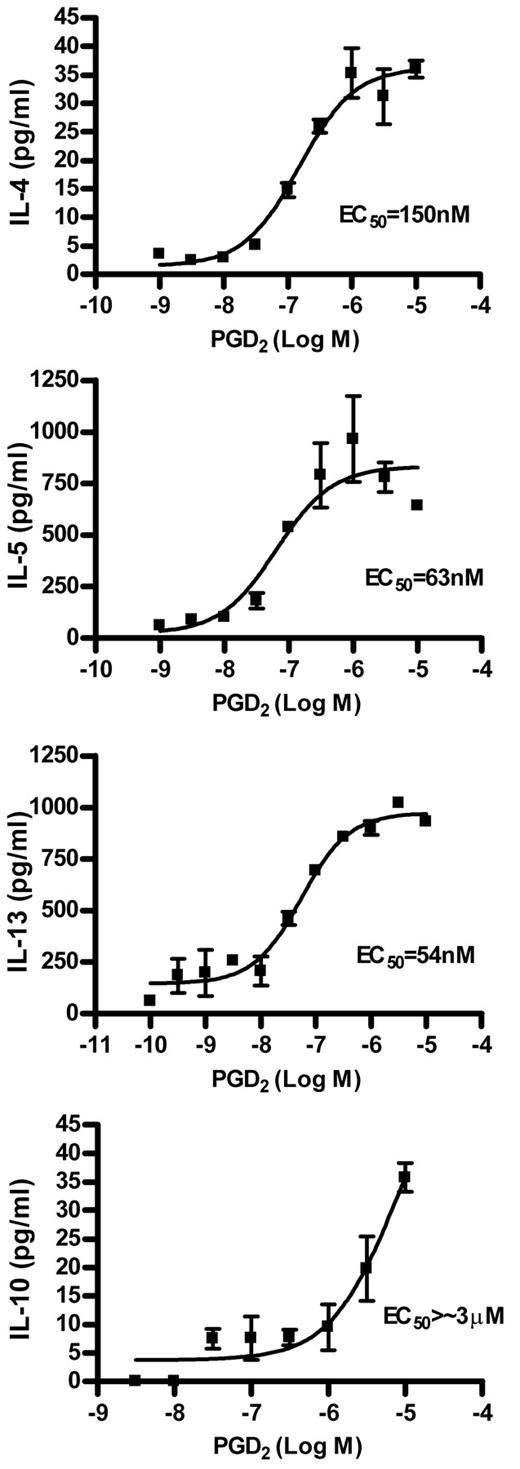

To test the effect of PGD₂ on cytokine production from human Th2 cells, the cells were stimulated with increasing concentration of PGD₂ for 4 h as indicated in Fig. 1. The treatment increased IL-4, IL-5, and IL-13 levels in the culture medium in a dose-dependent manner (Fig. 1). The EC₅₀ of PGD₂ for IL-4, IL-5, and IL-13 productions was 150, 63, and 54 nM, respectively. Interestingly, much higher concentrations of PGD₂ were required to trigger production of IL-10 (EC₅₀ > ∼3 μM). A time course of Th2 cytokine production responding to a single dose of PGD₂ (100 nM) was also investigated (Fig. 2). No cytokine increase in the culture medium was detectable after 1-h stimulation. The levels of IL-4, IL-5, and IL-13 increased with time and peaked at 4 h (for IL-4) or 8 h (for IL-5 and IL-13) (Fig. 2,B). The IL-4 level dropped quickly after 4 h, while the levels of IL-5 and IL-13 were much more stable for at least 48 h. PGD₂ did not trigger IL-10 production over the time course (Fig. 2,B). The mRNA levels of the cytokines in the same Th2 cell samples were analyzed (Fig. 2,A). As expected, the mRNA of IL-4, IL-5, and IL-13 in the cells was markedly elevated after PGD₂ stimulation, and the up-regulation of the mRNA preceded that of the protein. The mRNA encoding IL-4 peaked at 1 h declining toward baseline level at 8 h. However, the mRNA of IL-5 and IL-13 was only modestly increased at 1 h with maximal increase at 2 h and was maintained at higher levels than the baseline (∼1.5-fold) after 24 h. There was no significant up-regulation of IL-10 mRNA under the same treatment (Fig. 2 A), although a late weak increase (<2-fold peaked at 8 h) was detected at 1 μM PGD₂ challenge (data not shown).

To elucidate the receptor mediating the effects of PGD₂ on Th2 cytokine production, we examined the effects of DK-PGD₂, a specific CRTH2 agonist, and BW245C, a specific DP agonist (Fig. 3). Both mRNA levels in the Th2 cells and cytokine levels in the medium were assayed after 4 h of treatment. DK-PGD₂ played the same role as PGD₂, triggering IL-4, IL-5, and IL-13 but not IL-10 gene transcription and protein secretion, although the potency of DK-PGD₂ is slightly lower than that of PGD₂. In contrast, 1 μM BW245C showed no effect on cytokine production (Fig. 3).

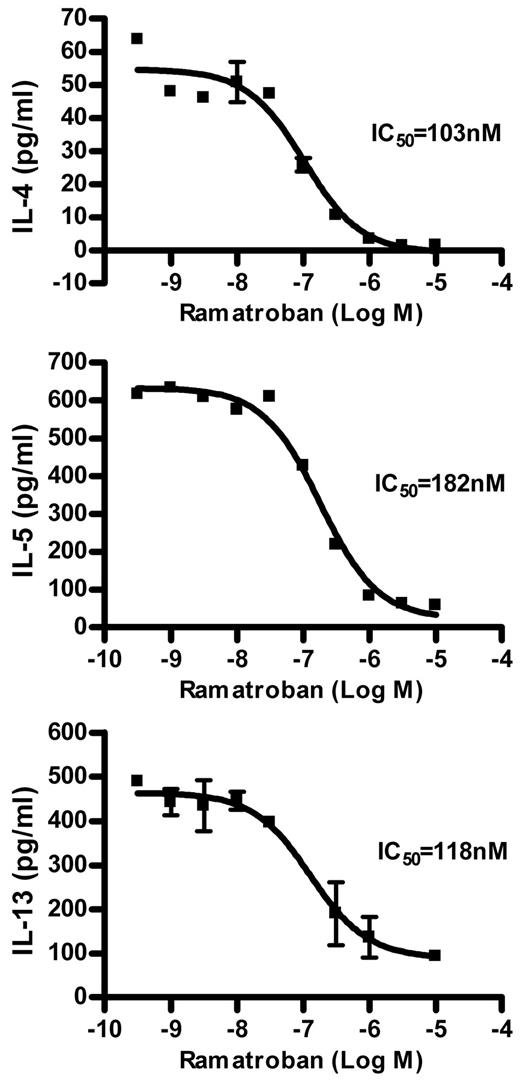

To determine whether the effect of PGD₂ on Th2 cytokine production is mediated by CRTH2, the effect of PGD₂ was studied in the presence of ramatroban, a dual CRTH2/TP antagonist. Th2 cytokine production in response to PGD₂ was markedly inhibited by ramatroban in a dose-dependent manner (Fig. 4). The IC₅₀ of ramatroban for the inhibition of IL-4, IL-5, and IL-13 production induced by PGD₂ (100 nM) was 103, 182, and 118 nM, respectively. The inhibition was also observed at the level of gene transcription (Fig. 5). In contrast to ramatroban, application of SQ29548, a selective TP antagonist, or BW868C, a selective DP antagonist, did not inhibit the effect of PGD₂ on Th2 cytokine production at either mRNA or protein levels (Fig. 5).

To further confirm the receptor targeted by PGD₂ in human Th2 cells, we measured the expression of CRTH2, DP, and TP in human Th2 cells. Although as reported by Tanaka et al. (19), both DP and CRTH2 receptors were detectable at mRNA level in human Th2 cells (data not shown), a competition binding assay using Th2 cell membranes revealed CRTH2 to be the dominant receptor for PGD₂ binding in Th2 cells (Fig. 6,A). PGD₂ and DK-PGD₂ competed with high affinity with [³H]PGD₂ to bind to Th2 cell membranes with Ki values of 12 ± 2 nM (n = 9) and 36 ± 6 nM (n = 4), respectively. In contrast, BW245C did not displace [³H]PGD₂ binding at concentrations up to 10 μM (n = 3) (Fig. 6,A). Ramatroban displaced [³H]PGD₂ binding with a value of Ki = 35 ± 8 nM (n = 4), while SQ29548 did not show any effect on binding to the Th2 membranes at concentration up to 10 μM (Fig. 6 A).

Because the DP receptor is Gαs-coupled and the CRTH2 receptor is Gαi-coupled, we conducted calcium mobilization and cAMP assays to verify the dominant bioactive receptor for PGD₂ in Th2 cells. Calcium mobilization in human Th2 cells was stimulated by CRTH2 agonists (PGD₂ and DK-PGD₂) but not by the DP selective agonist (BW245C) (22). PGD₂ and BW245C both demonstrated low efficacy on cAMP signaling in Th2 cells (Fig. 6 B). The level of cAMP in Th2 cells was not affected by PGD₂ or BW245C at concentrations up to 1 μM.

Although it has been shown previously that PGD₂ can enhance Th2 cytokine production in the presence of costimulation (15, 19), our study has revealed that PGD₂ alone has the remarkable ability to elicit cytokine production by Th2 cells in the absence of Ag or any other costimulation. Interestingly, PGD₂ induced the production of the proinflammatory cytokines (IL-4, IL-5, and IL-13) preferentially with only modest effects on the anti-inflammatory cytokine (IL-10). The effect of PGD₂ was mimicked by the selective CRTH2 agonist DK-PGD₂ but not by the selective DP agonist BW245C. Further evidence for the involvement of CRTH2 in this response comes from the use of ramatroban, which has been shown recently to be a potent CRTH2 antagonist (21). This compound blocked the effects of PGD₂ on Th2 cytokine production at similar concentrations required to inhibit CRTH2 (21), and this blockade is unlikely to be related to its TP activity because the selective TP antagonist SQ29548 was without effect. Furthermore, ligand binding studies with [³H]PGD₂ on Th2 membranes and measurements of cAMP production established the functional presence of CRTH2 but not TP or DP. Taken together, these data lead us to the conclusion that the effect of PGD₂ in causing Th2 cell activation is solely CRTH2 dependent. It has been suggested that DP is expressed by Th2 cells at low levels and may have a suppressive effect on Th2 activation (19), but we have found no evidence that the DP receptor on Th2 cells is functionally active at physiological concentrations of PGD₂. Our RT-PCR data confirmed the presence of DP mRNA in Th2 cells, but the ligand binding studies suggested that CRTH2 expression at the functional level dominates that of DP quantitatively. Tanaka et al. (19) detected the ability of the DP agonist BW245C to inhibit Th2 function in CD3/CD28-stimulated Th2 cells, suggesting that there may be low levels of expression of functional DP. However, it is unclear whether DP plays a physiological role in regulating activation of Th2 cells because the DP antagonist BW868C did not enhance the ability of PGD₂ to increase Th2 cytokine production (19). Furthermore, the function of DP could be amplified in CD3/CD28-stimulated Th2 cells because the CD3/CD28 stimulation down-regulates the expression of CRTH2 in Th2 cells (19).

It is well established that PGD₂ is produced by mast cells at the sites of allergic inflammation, including the asthmatic lung (23) at sufficient concentrations to cause chemotaxis of eosinophils, basophils, and Th2 cells (24, 25). Our data suggest that the physiological concentration of PGD₂ can also act as an independent trigger for production of Th2 cytokines. These cytokines in turn play a proinflammatory role in the pathophysiology of allergic disease (26). IL-4 and IL-13, especially, are potent for IgE isotype switching to promote mast cell-mediated inflammatory processes (27). IL-4, IL-5, and IL-13 alone also exert their inflammatory effects through various leukocytes, such as eosinophils, mast cells, and Th2 cells (28). In recent years, accumulating evidence from mice and humans has identified these three Th2 cytokines as major contributors to allergic inflammation (29). However, IL-10 has been defined previously as a cytokine synthesis inhibiting factor and represents one of the important immune-regulating cytokines (30). It is capable of inhibiting the synthesis of several cytokines from different cells and the function of several types of immune cells (31, 32, 33). In IL-10 gene-deficient mice, an overproduction of inflammatory cytokines and development of chronic inflammatory disease have been observed (34, 35). Our discovery of preferential up-regulation of IL-4, IL-5, and IL-13 but not IL-10 from human Th2 cells further supports the proinflammatory effect of PGD₂ on Th2-mediated inflammatory responses. It has been reported that IL-10 may not be coordinately expressed with IL-4, IL-5, and IL-13 during Th2 differentiation and could be expressed by a special subset of T cells (36, 37). However, the Th2 cells used in the present study are capable of IL-10 production, although a nonphysiological concentration of PGD₂ is required, suggesting that PGD₂ is unlikely to be an important trigger for IL-10 production by human Th2 cells.

Our RT-PCR results indicate that CRTH2 signaling targets the gene transcription of proinflammatory Th2 cytokines, although the signal pathway downstream of the receptor is still unclear. It has been found that the genes encoding IL-4, IL-5, and IL-13 are closely linked within a 160-kb genomic region of human chromosome 5 and could be regulated as a single transcriptional locus (38). Takemoto et al. (39) recently showed in a mouse model that ectopic activation of Stat6 or GATA-3 induces remodeling of this gene cluster region into an accessible chromatin conformation during Th cell differentiation. This mechanism might be used by PGD₂/CRTH2 for the coordinate up-regulation of Th2 cytokines.

Ramatroban was developed initially as a potent TP receptor antagonist (20). Recent studies revealed that this drug is also a CRTH2 antagonist and capable of inhibiting CRTH2-mediated eosinophil migration (21). In this study, we have demonstrated for the first time that ramatroban blocks CRTH2-mediated Th2 activities, including cytokine production and chemotaxis (data not shown). The potency of ramatroban in Th2 cells (Ki = 35 nM for binding, IC₅₀ = ∼100–180 nM for cytokine production) is similar to that in eosinophils reported previously (Ki = 100 nM for binding, IC₅₀ = 30 nM for Ca²⁺ mobilization, IC₅₀ = 170 nM for chemotaxis) (21).

In summary, the present study shows that PGD₂ can elicit Ag-independent activation of Th2 cytokine production mediated by the cell surface receptor CRTH2. These observations are consistent with CRTH2 playing a central role in mediating mast cell-Th2 interactions in allergic diseases.

We thank Sally Lees and Caroline Sell for their help on cell isolation and culture.

The authors have no financial conflict of interest.
