Unlike conventional αβ T cells, which preferentially reside in secondary lymphoid organs for adaptive immune responses, various subsets of unconventional T cells, such as the γδ T cells with innate properties, preferentially reside in epithelial tissues as the first line of defense. However, mechanisms underlying their tissue-specific development are not well understood. We report in this paper that among different thymic T cell subsets fetal thymic precursors of the prototypic skin intraepithelial Vγ3+ T lymphocytes (sIELs) were selected to display a unique pattern of homing molecules, including a high level of CCR10 expression that was important for their development into sIELs. In fetal CCR10-knockout mice, the Vγ3+ sIEL precursors developed normally in the thymus but were defective in migrating into the skin. Although the earlier defect in skin-seeding by sIEL precursors was partially compensated for by their normal expansion in the skin of adult CCR10-knockout mice, the Vγ3+ sIELs displayed abnormal morphology and increasingly accumulated in the dermal region of the skin. These findings provide definite evidence that CCR10 is important in sIEL development by regulating the migration of sIEL precursors and their maintenance in proper regions of the skin and support the notion that unique homing properties of different thymic T cell subsets play an important role in their peripheral location.

Unlike conventional αβ T cells, which preferentially reside in secondary lymphoid organs for adaptive immune responses, various subsets of unconventional T cells, such as the γδ T cells with innate properties, preferentially reside in epithelial tissues covering the external and internal surface of the body, including the skin, reproductive tract, lungs, and intestines, where they function as the first line of defense (1).

The γδ T cells of different epithelial tissues use different γδ TCRs and originate from thymi of specific ontogenic stages (2). In mice, skin intraepithelial γδ T lymphocytes (sIEL; also referred to as dendritic epidermal T cells) express canonical Vγ3/Vδ1+ γδTCRs, and their precursors are generated only in early fetal thymi. Vγ4+ cells of later fetal thymi contribute as the dominant γδ T cell population in other epithelial tissues, such as the reproductive tract, tongue, and nasal mucosa (2, 3). In contrast, γδ T cells located in the secondary lymphoid organs (SLO) are preferentially Vγ2 or Vγ1.1+ and originate from the adult thymus. Although it is well established that the waved generation of γδ T cell subsets is primarily due to the genomically programmed rearrangement of specific Vγ genes at different ontogenic stages (4), mechanisms regulating their tissue-specific development are poorly understood.

Recent studies found that a selection process is involved in the tissue-specific development of Vγ3+ sIELs, the dominant epidermal T cell population in mice. The Vγ3+ sIELs play an important role in protection of the skin through various functions such as immune surveillance against tumors (5), regulation of local inflammatory responses (6), and promotion of wound healing (7). In genetically modified mice whose production of the Vγ3+ γδ T cells is impaired in the fetal thymus, the Vγ3+ γδ T cells are still the dominant subset of sIELs in adults, suggesting that the Vγ3+ cells are selected over other T cell subsets to develop into sIELs (8). In the absence of native Vγ3/Vδ1+ sIELs, such as in Vγ3 or Vδ1 knockout mice, other γδ T cell subsets could substitute in the skin. However, the substitute sIELs have a restricted TCR configuration (911). In TCRδ6.3 transgenic mice, transgenic sIELs were absent unless an endogenously encoded TCRδ chain, preferentially TCRδ1, was coexpressed (11), supporting the involvement of selection.

The selection process for sIEL development starts within the fetal thymus. We previously reported that fetal thymic γδ T cell populations that display activated or memory phenotypes correlated with their development into sIELs (12). In wild-type mice, the fetal thymic Vγ3+ sIEL precursors are a predominant population that displays the activated phenotypes, including the upregulation of CD122 (IL-15Rβ), suggesting that they are selected. In a substrain of FVB mice (Taconic Farms, Germantown, NY) that bears the mutated Skint1 molecule, a selecting ligand for the Vγ3+ sIEL precursors, the Vγ3+ fetal thymic γδ T cells were found to remain at an immature status and could not develop into sIELs efficiently (13, 14), confirming that positive selection is critical for the development of sIELs. Furthermore, a subset of transgenic fetal thymic γδ T cells developed into sIELs if they were positively selected as the Vγ3+ cells (12, 15).

The positive selection of fetal thymic Vγ3+ sIEL precursors might endow them with a unique homing property to migrate in the skin. Compared with unselected fetal thymic γδ T cells, positively selected Vγ3+ sIEL precursors had a coordinate switch in the expression of multiple homing molecules, including the upregulation of CCR10 (G protein-coupled receptor 2) and sphingosine 1-phosphate receptor 1 (S1PR1), as well as the downregulation of CCR6, which might be important for their peripheral location (12). S1PR1 is known to be critical for thymus exiting of mature T cells (16). In contrast, considering the high-level expression of chemokine CCL27, a ligand for CCR10, in the skin (17), CCR10 may serve as a skin-homing receptor for positively selected Vγ3+ cells. However, a recent publication found no apparent sIEL defect in adult CCR10-knockout mice, leaving the role of CCR10 in sIEL development unclear (18).

Using a newly generated strain of CCR10-knockout mice with a knocked-in enhanced GFP (EGFP) as a reporter for CCR10, we systematically analyzed the regulation of CCR10 expression in cells at different stages of sIEL development and its role in sIEL development. We report in this paper that CCR10 is involved in multiple aspects of sIEL development.

CCR10-knockout/EGFP-knockin mice were generated as outlined in Fig. 1. First, a targeting construct was assembled that included a 3.6-kb DNA fragment exactly 5′ of the start codon of the CCR10 gene (5′ arm), followed by a coding sequence for EGFP, a loxP-flanked neo gene cassette, and a 0.5-kb DNA fragment consisting of a 0.2-kb 3′ portion of the CCR10 coding region and a 0.3-kb 3′ noncoding region (3′ arm). The 3.6-kb 5′ and 0.5-kb 3′ arms were PCR amplified from genomic DNA from 129 svJ mice and confirmed by sequencing. The linearized targeting construct was then transfected into mouse embryonic stem (ES) cells (the J1 line) (19), of which the G418/gancyclovir-resistant clones were screened for knockout recombinants by genomic PCR with a primer set that amplifies a 0.9-kb band from the 3′ end of the targeted CCR10 allele (Fig. 1A, 1B). The knockout clones were further confirmed by a Southern blot with a probe specific for a region 5′ upstream of the targeted region (Fig. 1A, 1C). The targeted allele (neo+) deletes a 1.7-kb DNA fragment coding for N-terminal extracellular and all of the seven trans-membrane domains of the CCR10 gene and replaces it with an EGFP coding sequence and a loxP-flanked neo cassette. The neo+ CCR10-knockout clones were microinjected into blastocysts of C57BL/6 (B6) mice to generate chimera mice. The male chimera mice were crossed with female EIIa-Cre transgenic mice to delete the loxP-flanked neo gene cassette from the CCR10 targeted allele to generate heterozygous CCR10-knockout/EGFP-knockin mice (CCR10+/EGFP) (Fig. 1A, 1C). The CCR10+/EGFP mice were backcrossed to wild-type B6 mice for eight to nine generations and intercrossed to generate homozygous CCR10-knockout/EGFP-knockin (CCR10EGFP/EGFP) mice. B6 and transgenic EIIa-Cre mice were purchased from The Jackson Laboratory (Bar Harbor, ME). All animal experiments were approved by Pennsylvania State University Institutional Animal Care and Use Committee.

FIGURE 1.

Generation of CCR10-knockout mice with a knocked-in EGFP reporter. A, Targeting and screening strategies for generation of CCR10-knockout/EGFP-knockin mice. B, The screening for CCR10-knockout ES cell clones by a genomic PCR with primers P1 and P2 (A) that would amplify a 0.8-kb band from the CCR10-knockout allele, but not the wild-type CCR10 allele or CCR10-knockout construct inserted into the genome. C, Southern blot analysis of CCR10-knockout ES cells or mice. Genomic DNAs of the cells and mice were digested with restriction enzyme SacI and probed with a 0.8-kb DNA fragment located 5′ upstream of the 5′ arm in the CCR10 allele (A, 5′ Probe). The Southern blot gave bands of 6.9, 7.9, and 10 kb of the wild-type, neo+ CCR10 targeted allele (neo+), and neo-deleted targeted CCR10 allele (neo), respectively. D, Identification of heterozygous and homozygous CCR10-knockout mice by a genomic PCR with primers P3, P4, and P5 (A), which amplifies a 330-bp wild-type and a 280-bp knockout band. E, Flow cytometric (FACS) analysis of EGFP expression in fetal thymic Vγ3+ γδ T cells before and after the positive selection. A total of 31 CCR10+/EGFP fetuses were analyzed. F, Correlated expression of the knocked-in EGFP and endogenous CCR10 genes. Different fetal thymic Vγ3+ cell populations were purified from CCR10+/EGFP and CCR10+/+ mice based on their EGFP or CD122 expression (as indicated) by cell sorters. Levels of CCR10 and EGFP transcripts in the sorted populations were analyzed by semiquantitative RT-PCR. GAPDH was used as loading controls. n = 2. +/+, wild-type ES cells and mice; neo+, recombinant CCR10-knockout ES cells with the neo cassette; neo/neo, homozygous CCR10-knockout/EGFP-knockin mice with the neo cassette deleted; +/neo, heterozygous CCR10-knockout/EGFP-knockin mice with the neo cassette deleted; −RT, no reverse transcription; S, SacI.

FIGURE 1.

Generation of CCR10-knockout mice with a knocked-in EGFP reporter. A, Targeting and screening strategies for generation of CCR10-knockout/EGFP-knockin mice. B, The screening for CCR10-knockout ES cell clones by a genomic PCR with primers P1 and P2 (A) that would amplify a 0.8-kb band from the CCR10-knockout allele, but not the wild-type CCR10 allele or CCR10-knockout construct inserted into the genome. C, Southern blot analysis of CCR10-knockout ES cells or mice. Genomic DNAs of the cells and mice were digested with restriction enzyme SacI and probed with a 0.8-kb DNA fragment located 5′ upstream of the 5′ arm in the CCR10 allele (A, 5′ Probe). The Southern blot gave bands of 6.9, 7.9, and 10 kb of the wild-type, neo+ CCR10 targeted allele (neo+), and neo-deleted targeted CCR10 allele (neo), respectively. D, Identification of heterozygous and homozygous CCR10-knockout mice by a genomic PCR with primers P3, P4, and P5 (A), which amplifies a 330-bp wild-type and a 280-bp knockout band. E, Flow cytometric (FACS) analysis of EGFP expression in fetal thymic Vγ3+ γδ T cells before and after the positive selection. A total of 31 CCR10+/EGFP fetuses were analyzed. F, Correlated expression of the knocked-in EGFP and endogenous CCR10 genes. Different fetal thymic Vγ3+ cell populations were purified from CCR10+/EGFP and CCR10+/+ mice based on their EGFP or CD122 expression (as indicated) by cell sorters. Levels of CCR10 and EGFP transcripts in the sorted populations were analyzed by semiquantitative RT-PCR. GAPDH was used as loading controls. n = 2. +/+, wild-type ES cells and mice; neo+, recombinant CCR10-knockout ES cells with the neo cassette; neo/neo, homozygous CCR10-knockout/EGFP-knockin mice with the neo cassette deleted; +/neo, heterozygous CCR10-knockout/EGFP-knockin mice with the neo cassette deleted; −RT, no reverse transcription; S, SacI.

Close modal

Anti-CD3, CD122, CD62L, and γδTCR Abs were purchased from eBioscience (San Diego, CA); anti-CD24, CCR7, and αE from BioLegend (San Diego, CA); anti-Vγ2, Vγ3, β7, and α4β7 from BD Biosciences (San Diego, CA); and anti-CCR9 from R&D Systems (Minneapolis, MN). The 17D1 Ab was previously described (9). CCL27 was purchased from PeproTech (Rocky Hill, NJ).

Thymocytes were isolated from mice as described (12). To isolate lymphocytes from epidermal and dermal regions, the dorsal and ventral skin was treated with 20 mM EDTA, to be separated into the epidermis and dermis. The epidermis was minced and digested with a 0.3% trypsin solution for 20 min at 37°C to dissociate the cells (20). The dermis was minced and digested with collagenase for 1–2 h with gentle shaking to dissociate the cells (21). Mononucleocytes were enriched from the cell preparations, using Percoll gradients (40%/80%), and then subjected to flow cytometric analysis.

Cells were incubated with fluorescently labeled Abs for 30 min at 4°C (or 37°C for CCR7 staining) and analyzed on the flow cytometer FC500 (Beckman Counter, Miami, FL).

E17 fetal thymocytes of CCR10+/EGFP mice were stained and sorted for EGFP+ and EGFP Vγ3+ cells with an Influx sorter (Cytopeia, San Jose, CA). E17 fetal thymocytes of wild-type mice were stained and sorted for CD122+ and CD122 Vγ3+ cells. Vγ3+ sIELs were purified by the sorter from epidermal cell preparations based on Vγ3/CD3 expression. Purities of the sorted populations were ≥95%.

The experiment was performed similarly, as described (22). The epidermal sheets were peeled from the ear skin of adult mice or the back skin of 2- to 3-d-old newborns after the skins were incubated in a 20 mM EDTA/PBS solution for 1 h. The sheets were fixed with acetone and then stained with FITC-conjugated anti-Vγ3 Abs (or biotin-conjugated anti-Vγ3 Abs/streptavidin-Alexa 568) overnight and analyzed on a fluorescence microscope—Olympus BX61 (Olympus, Melville, NY) or Nikon Eclipse TE300 (Nikon, Melville, NY).

In this procedure, 10-μm cryosections of the back skin were fixed in methanol for 30 min at −20°C and costained with Alexa 647-conjugated anti-CD3 and FITC-conjugated anti-Vγ3 Abs in the Antibody Amplifier Eclipse (ProHisto, Columbia, SC) at 4°C overnight. The stained sections were covered with Vectashield mounting medium containing DAPI (Vector Laboratories, Burlingame, CA) and analyzed on an Olympus BX61 fluorescence microscope or an Olympus Fluoview 1000 confocal microscope (Olympus America, Center Valley, PA).

The experiment was performed as described (12). Briefly, 5 × 105 E17 fetal thymocytes of wild-type or CCR10-knockout mice suspended in DMEM/10% FBS were placed into the upper chamber of a Transwell plate containing 5-μm pore filters (Corning Costar, Corning, NY) and incubated with CCL27 (R&D Systems) or a conditioned medium of E18 fetal skin in the bottom chamber for 4 h. Cells migrating into the bottom chamber were collected and analyzed by flow cytometry for Vγ3+ γδT cells.

The experiment was performed as previously described (12). Primer sequences are CCR7f: 5′-CTCGGCAACGGGCTGGTGATACTG-3′ and CCR7r: 5′-CGTGTCCTCGCCGCTGTTCTTCTG-3′ for CCR7; CCR10-5′: 5′-AGAGCTCTGTTACAAGGCTGATGTC-3′ and CCR10-3′: 5′-CAGGTGGTACTTCCTAGATTCCAGC-3′ for CCR10; S1PR1-5′: 5′-GTACTTCCTGGTTCTGGCTGTGC-3′ and S1PR1-3′: 5′-CGTTTCCAGACGACATAATGG-3′ for SIPRI; L3: 5′-CCAGCAGCCACTAAAATGTC-3′ and J1: 5′-CTTACCAGAGGGAATTACTATGAG-3′ for TCRγ3; GAPDH-5′: 5′-CTGACGTGCCGCCTGGAGAAA-3′ and GAPDH-3′: 5′-TGTTGGGGGCCGAGTTGGGATAG-3′ for GAPDH; EGFP-5′: 5′-ACTACCTGAGCACCCAGTCCGCCCTG-3′ and EGFP-3′: 5′-GCTCTAGATTTACTTGTACAGCTCGT-3′ for EGFP. Primers for tubulin have been described (23).

All data are expressed as means ± SD. Statistical significance was determined by two-tailed student t tests; p < 0.05 is considered significant.

To study the role of CCR10 in sIEL development, we generated CCR10-knockout/EGFP-knockin mice. The CCR10 coding sequence was replaced with an EGFP coding sequence that serves as a reporter for CCR10 expression (Fig. 1A–D). The neo gene cassette was removed from the targeted CCR10 allele by the Cre/LoxP-mediated deletion, to get “clean” CCR10-knockout/EGFP-knockin mice because the neo gene cassette, with its own strong promoter, interfered with regulation of knocked-in EGFP gene expression by the endogenous regulatory machinery (24).

The knocked-in EGFP in CCR10-knockout/EGFP-knockin mice faithfully reports the expression of CCR10. Of the E17 fetal thymocytes of heterozygous CCR10+/EGFP mice, significantly higher percentages of CD122+ Vγ3+ γδ T cells expressed much higher levels of EGFP than did CD122 Vγ3+ γδ T cells or earlier progenitors (Fig. 1E). This correlates with our previous findings that the positively selected Vγ3+ fetal thymic sIEL precursors had higher CCR10 transcripts than did the unselected γδ T cell population (12). Furthermore, in purified EGFP+ and EGFP populations of the E17 fetal thymic Vγ3+ γδ T cells of CCR10+/EGFP mice, levels of CCR10 and EGFP transcripts were correlated (Fig. 1F). EGFP expression was also correlated with CCR10 transcription between different thymic T cell and sIEL populations, as demonstrated in several experiments throughout this paper (Fig. 2A, 2B). In addition, nearly all IgA+ cells, but few other cells, of the intestine had high EGFP signals (not shown), also correlating with previous findings (25). These results indicate that the knocked-in EGFP is a reliable reporter for CCR10 expression and, to the best of our knowledge, provide the first direct evidence that CCR10 is expressed on the majority of positively selected CD122+ Vγ3+ fetal thymic γδ T cells.

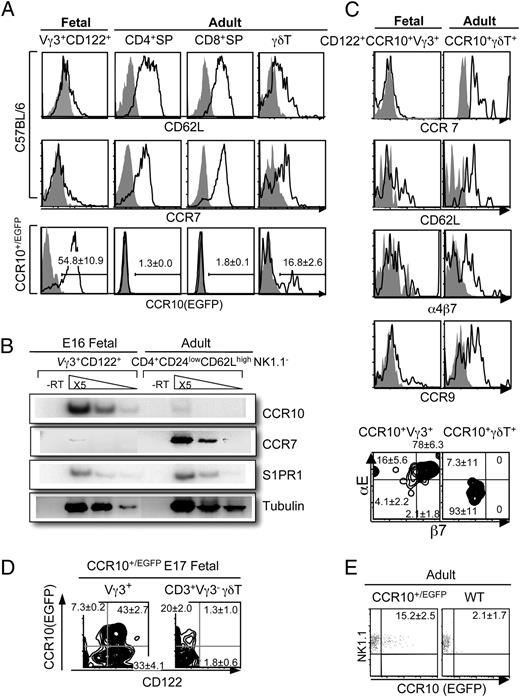

FIGURE 2.

Differential expression of CCR10 and other homing molecules among positively selected fetal thymic Vγ3+ and other thymic T cell subsets. A, FACS analysis of CCR10 (EGFP), CD62L, and CCR7 expression on positively selected E16 fetal thymic Vγ3+ (n = 8) versus adult (n = 3) thymic CD4+, CD8+, or γδ T cells. The CCR10 (EGFP) analysis was on CCR10+/EGFP mice (n ≥ 4). B, Semiquantitative RT-PCR determination of CCR7, CCR10, and S1PR1 expression in mature E16 fetal thymic CD122+ Vγ3+ and adult thymic CD24lowCD62LhighNK1.1 CD4+ cells of C57BL/6 mice. The experiments were repeated twice. C, FACS analysis of α4β7, CCR9, CCR7, CD62L, αE, and β7 expression on CCR10 (EGFP)+ E16 fetal (n = 10) thymic Vγ3+ versus adult (n = 2) thymic γδT cells. D, Comparison of CCR10 (EGFP) and CD122 expression on E16 fetal thymic Vγ3+ versus Vγ3 γδT cells of CCR10+/EGFP mice. More than five mice were analyzed. E, Expression of CCR10 (EGFP) on the gated adult NK1.1+ CD3+ thymocytes. The experiments were repeated twice.

FIGURE 2.

Differential expression of CCR10 and other homing molecules among positively selected fetal thymic Vγ3+ and other thymic T cell subsets. A, FACS analysis of CCR10 (EGFP), CD62L, and CCR7 expression on positively selected E16 fetal thymic Vγ3+ (n = 8) versus adult (n = 3) thymic CD4+, CD8+, or γδ T cells. The CCR10 (EGFP) analysis was on CCR10+/EGFP mice (n ≥ 4). B, Semiquantitative RT-PCR determination of CCR7, CCR10, and S1PR1 expression in mature E16 fetal thymic CD122+ Vγ3+ and adult thymic CD24lowCD62LhighNK1.1 CD4+ cells of C57BL/6 mice. The experiments were repeated twice. C, FACS analysis of α4β7, CCR9, CCR7, CD62L, αE, and β7 expression on CCR10 (EGFP)+ E16 fetal (n = 10) thymic Vγ3+ versus adult (n = 2) thymic γδT cells. D, Comparison of CCR10 (EGFP) and CD122 expression on E16 fetal thymic Vγ3+ versus Vγ3 γδT cells of CCR10+/EGFP mice. More than five mice were analyzed. E, Expression of CCR10 (EGFP) on the gated adult NK1.1+ CD3+ thymocytes. The experiments were repeated twice.

Close modal

Taking advantage of the knocked-in EGFP reporter, we analyzed the expression of CCR10 (EGFP) in fetal thymic Vγ3+ and other thymic T cell subsets that are known to have different preferential peripheral locations. First, we compared the expression of CCR10 (EGFP) between the Vγ3+ sIEL precursors and conventional thymic CD4+ and CD8+ αβ T cells that preferentially localize in SLOs. In contrast to fetal thymic CD122+ Vγ3+ cells, few conventional thymic αβ T cells expressed CCR10 (EGFP) (Fig. 2A). Instead, the conventional αβ T cells expressed higher levels of CCR7 and CD62L, molecules involved in their localization to SLOs (26, 27), than did the Vγ3+ sIEL precursors (Fig. 2A). The differential expression of CCR10 versus CCR7 between the positively selected CD122+ Vγ3+ and conventional CD4+ αβ T cell populations was further confirmed by semiquantitative RT-PCR, whereas both populations expressed similar levels of S1PR1 (Fig. 2B), a molecule involved in T cell egress from the thymus (16).

The majority of adult thymic γδT cells expressed patterns of homing molecules similar to those of the αβT cells (Fig. 2A, right panels), consistent with their preferential location in SLOs. However, a small but notable portion of adult thymic γδ T cells expressed CCR10 (EGFP) (Fig. 2A); but the CCR10 (EGFP)+ adult thymic γδ T cells displayed expression profiles of many other homing molecules that were different from those of the CCR10 (EGFP)+ Vγ3+ sIEL precursors that, apart from expressing low CD62L and CCR7, were also low in the expression of CCR9 and integrin α4β7, molecules involved in homing to the gut, and high in αEβ7, an integrin involved in epidermal localization of sIELs (Fig. 2C) (28).

We also analyzed the expression of CCR10 (EGFP) on Vγ3 γδ T cells in fetal thymi of CCR10+/EGFP mice. Compared with the Vγ3+ fetal thymic cells, a smaller portion of the Vγ3 fetal thymic γδ T cells expressed lower levels of CCR10 (Fig. 2D).

The CCR10 (EGFP)+ Vγ3 fetal thymic γδ T cells did not express CD122, indicating that they were not selected as the Vγ3+ sIEL precursors, and, like the CCR10 (EGFP)+ adult thymic γδ T cells, expressed other homing molecules differently than did the CCR10+ Vγ3+ sIEL precursors (Supplemental Fig. 1).

A sizable portion of NK1.1+ adult thymic T cells, similar to the thymic γδ T cells, also expressed CCR10 (EGFP) (Fig. 2E). However, the CCR10 (EGFP)+ NKT cells were mainly αβ T cells (Supplemental Fig. 2), suggesting that they are a distinct population. Interestingly, the CCR10 (EGFP)+ NKT cells displayed an expression pattern of homing molecules that was more similar to patterns of CCR10+ Vγ3+ fetal thymocytes than to those of other CCR10+ γδ T cells, including high-level integrin αE but low-level α4β7 expression (Supplemental Fig. 2).

Together, these data demonstrate that the Vγ3+ sIEL precursors and other thymic T cell populations express different patterns of homing molecules that might determine their specific peripheral localizations. In particular, CCR10 (EGFP) is expressed on various thymic γδ T cell subsets known to localize preferentially into different epithelial tissues that abundantly express ligands for CCR10, including CCL27 and CCL28 (29, 30, 31), but not on the conventional αβ T cells that preferentially localize into SLOs. In addition, the expression of CCR10 (EGFP)+ on one NKT subset might be associated with their preferential localization in nonlymphoid peripheral tissues, including the skin (32). Most notably, the high level of CCR10 (EGFP) expression on the majority of positively selected Vγ3+ fetal thymic T cells suggests a potentially important role of CCR10 in their development into sIELs.

To dissect the involvement of CCR10 in sIEL development, we first analyzed the generation and selection of the Vγ3+ sIEL precursors in fetal thymi of CCR10-knockout mice. Compared with wild-type littermates, homozygous CCR10EGFP/EGFP mice had essentially the same number of fetal thymic Vγ3+ cells that also expressed the positive selection and maturation markers CD122 and CD24 (Fig. 3A). In addition, there was only a slight, if any, difference in percentages of EGFP+ Vγ3+ fetal thymocytes between CCR10EGFP/EGFP and CCR10+/EGFP mice (Fig. 3B). These results indicate that CCR10 is not involved to any great extent in the intrathymic development processes of Vγ3+ sIEL precursors or their egress from the thymus, which is likely mediated by different homing molecules, such as S1PR1 (16).

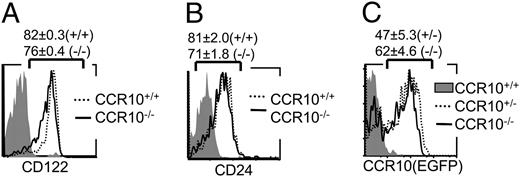

FIGURE 3.

Normal development of Vγ3+ sIEL precursors in fetal thymi of CCR10-knockout mice. A and B, Comparison of CD24 and CD122 expression on E16 fetal Vγ3+ thymocytes of CCR10EGFP/EGFP (CCR10−/−) and wild-type (CCR10+/+) littermates by flow cytometry. More than five mice of each genotype were analyzed. C, FACS analysis of EGFP expression on gated Vγ3+ γδ T cells of CCR10EGFP/EGFP mice versus CCR10+/EGFP (CCR10+/−) mice. The staining of wild-type cells was used as a negative control for EGFP expression.

FIGURE 3.

Normal development of Vγ3+ sIEL precursors in fetal thymi of CCR10-knockout mice. A and B, Comparison of CD24 and CD122 expression on E16 fetal Vγ3+ thymocytes of CCR10EGFP/EGFP (CCR10−/−) and wild-type (CCR10+/+) littermates by flow cytometry. More than five mice of each genotype were analyzed. C, FACS analysis of EGFP expression on gated Vγ3+ γδ T cells of CCR10EGFP/EGFP mice versus CCR10+/EGFP (CCR10+/−) mice. The staining of wild-type cells was used as a negative control for EGFP expression.

Close modal

Although there was no defect in the generation and selection of Vγ3+ sIEL precursors in the fetal thymus of CCR10EGFP/EGFP mice, their seeding into the skin was severely impaired. Transcripts for Vγ3+TCRs were much lower (>10-fold) in the skin of E18 fetal CCR10EGFP/EGFP mice than in their wild-type littermates (Fig. 4A). In addition, the direct immunofluorescent microscopic analysis of epidermal sheets for Vγ3+ cells revealed that there were significantly fewer (2.2-fold reduction) sIELs in 2- to 3-d-old newborn CCR10EGFP/EGFP mice than in their wild-type littermates (Fig. 4B, 4E). Compared with their corresponding wild-type littermates, CCR10-knockout mice also showed significantly reduced numbers of sIELs in young (5- to 6-wk-old) and mature (10- to 12-wk-old) adults, although the extent of reduction was slightly smaller in the mature than in the young adult mice (1.6- versus 2-fold reduction) (Fig. 4C, 4E; Supplemental Fig. 3). This finding differs from a recent report (18). The epidermal layers of adult CCR10-knockout mice had an uneven distribution of sIELs (Fig. 4C; Supplemental Fig. 3), consistent with reduced skin-seeding by sIEL precursors at earlier stages. In addition, sIELs in the adult CCR10EGFP/EGFP mice did not have the typical dendritic morphology seen in normal sIELs (Fig. 4D), suggesting a role of CCR10 in sIEL morphogenesis. As a control, Langerhans cells, the other major type of epidermal immune cells, developed normally in CCR10EGFP/EGFP mice (Supplemental Fig. 4).

FIGURE 4.

Impaired sIEL development in CCR10EGFP/EGFP mice. A, Comparison of TCRγ3 transcripts in fetal skin of CCR10EGFP/EGFP and wild-type mice by semiquantitative RT-PCR. Skin RNAs of E18 fetal CCR10EGFP/EGFP and wild-type mice were subjected to semiquantitative RT-PCR analysis for rearranged TCRγ3. GAPDH was used as a loading control. The experiments were repeated twice. B, Immunofluorescent microscopic analysis of epidermal sheets of the 2- to 3-d-old newborn CCR10EGFP/EGFP and wild-type mice for Vγ3+ sIELs. Epidermal sheets of the back skin were stained with biotin-conjugated anti-Vγ3 Abs followed with Alexa 647-conjugated streptavidin. C, Immunofluorescent microscopic analysis of epidermal sheets of 5- to 6-wk-old adult CCR10EGFP/EGFP and wild-type mice for Vγ3+ sIELs. Ear epidermal sheets were costained with FITC-conjugated anti-Vγ3 Ab and DAPI. The tissue in the image on the right was stained with DAPI and used as a control for endogenous EGFP signals. D, High-magnification immunofluorescent microscopy of ear epidermal sheets of adult CCR10EGFP/EGFP and wild-type mice for morphology of Vγ3+ sIELs. Images of three pairs of littermates are shown. Original magnification ×200. E, Quantitative comparison of numbers of Vγ3+ sIELs in CCR10EGFP/EGFP and wild-type mice of different ages. The number of Vγ3+ sIELs was calculated from the immunofluorescent microscopy of epidermal sheets, with at least five fields counted for each mouse. One dot represents the average number of Vγ3+ sIELs per field from one mouse.

FIGURE 4.

Impaired sIEL development in CCR10EGFP/EGFP mice. A, Comparison of TCRγ3 transcripts in fetal skin of CCR10EGFP/EGFP and wild-type mice by semiquantitative RT-PCR. Skin RNAs of E18 fetal CCR10EGFP/EGFP and wild-type mice were subjected to semiquantitative RT-PCR analysis for rearranged TCRγ3. GAPDH was used as a loading control. The experiments were repeated twice. B, Immunofluorescent microscopic analysis of epidermal sheets of the 2- to 3-d-old newborn CCR10EGFP/EGFP and wild-type mice for Vγ3+ sIELs. Epidermal sheets of the back skin were stained with biotin-conjugated anti-Vγ3 Abs followed with Alexa 647-conjugated streptavidin. C, Immunofluorescent microscopic analysis of epidermal sheets of 5- to 6-wk-old adult CCR10EGFP/EGFP and wild-type mice for Vγ3+ sIELs. Ear epidermal sheets were costained with FITC-conjugated anti-Vγ3 Ab and DAPI. The tissue in the image on the right was stained with DAPI and used as a control for endogenous EGFP signals. D, High-magnification immunofluorescent microscopy of ear epidermal sheets of adult CCR10EGFP/EGFP and wild-type mice for morphology of Vγ3+ sIELs. Images of three pairs of littermates are shown. Original magnification ×200. E, Quantitative comparison of numbers of Vγ3+ sIELs in CCR10EGFP/EGFP and wild-type mice of different ages. The number of Vγ3+ sIELs was calculated from the immunofluorescent microscopy of epidermal sheets, with at least five fields counted for each mouse. One dot represents the average number of Vγ3+ sIELs per field from one mouse.

Close modal

Surprisingly, despite the defects in sIEL development in the absence of CCR10, we could not detect EGFP signals in the sIELs of adult CCR10+/EGFP or CCR10EGFP/EGFP mice under the fluorescent microscope (Fig. 4C, right panel; and data not shown). This was not due to leakage of the highly soluble EGFP proteins out of the sIELs during the preparation process of epidermal sheets because we did not treat the epidermal sheets with any permeabilizing reagents. In addition, with the more quantitative flow cytometric analysis, we detected only very weak EGFP signals of Vγ3+ sIELs isolated from adult CCR10+/EGFP mice, in clear contrast to those of CCR10+/EGFP fetal thymic Vγ3+ sIEL precursors (Fig. 5A). These results suggest that the expression of CCR10 on sIELs of adult mice is downregulated from the expression level of their fetal thymic precursors. In direct confirmation of this, the level of CCR10 transcripts in purified Vγ3+ sIELs of wild-type adult mice was much lower than that of purified CD122+ Vγ3+ fetal thymocytes (Fig. 5B). Considering that keratinocytes are in direct contact with sIELs and express high levels of the ligand CCL27 for CCR10, the temporally regulated CCR10 expression on sIELs and their precursors is likely involved in calibration of the CCR10/ligand interaction strength for the migration and distribution of sIELs within the skin.

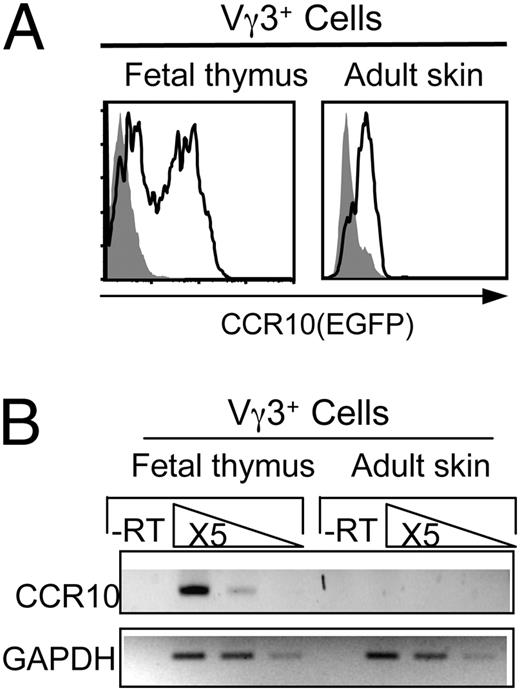

FIGURE 5.

Regulated CCR10 expression in sIELs and their thymic precursors. A, FACS analysis of CCR10 (EGFP) expression on adult Vγ3+ sIELs and fetal thymic CD122+ Vγ3+ T cells of CCR10+/EGFP mice. B, Comparison of levels of CCR10 transcripts in adult sIELs and positively selected fetal thymic sIEL precursors. RNAs of purified adult Vγ3+ sIELs and E16 fetal thymic CD122+Vγ3+ cells of wild-type mice were analyzed by semiquantitative RT-PCR for CCR10 transcripts. The experiments were repeated twice.

FIGURE 5.

Regulated CCR10 expression in sIELs and their thymic precursors. A, FACS analysis of CCR10 (EGFP) expression on adult Vγ3+ sIELs and fetal thymic CD122+ Vγ3+ T cells of CCR10+/EGFP mice. B, Comparison of levels of CCR10 transcripts in adult sIELs and positively selected fetal thymic sIEL precursors. RNAs of purified adult Vγ3+ sIELs and E16 fetal thymic CD122+Vγ3+ cells of wild-type mice were analyzed by semiquantitative RT-PCR for CCR10 transcripts. The experiments were repeated twice.

Close modal

To test whether CCR10 is involved in maintaining the proper distribution of sIELs within the skin, we isolated cells from epidermal and dermal regions of the skin separately and analyzed them for Vγ3+ T cells by flow cytometry. There were ∼2-fold lower percentages of epidermal Vγ3+ T cells in CCR10EGFP/EGFP mice than in wild-type controls (Fig. 6A), confirming that sIEL development is impaired in CCR10-knockout mice. In contrast, there was more than a 3-fold increase in the percentage of Vγ3+ γδ T cells in cells isolated from the dermis of CCR10EGFP/EGFP mice compared with wild-type mice (Fig. 6B), demonstrating that CCR10 is important for the proper distribution of Vγ3+ cells within the skin. In addition, we consistently observed lower percentages of Vγ3 γδ T cells in the dermis of CCR10-knockout mice `compared with wild-type mice, suggesting that the absence of CCR10 might affect other T cell populations within the dermis.

FIGURE 6.

Abnormal accumulation of Vγ3+ γδ T cells in dermal regions of CCR10-knockout mice. A, FACS analysis for Vγ3+ sIELs in cells isolated from epidermis of CCR10EGFP/EGFP and wild-type mice. B, FACS analysis for Vγ3+ T cells in cells isolated from the dermal regions of the CCR10EGFP/EGFP and wild-type mice. A set of representative plots of at least three experiments is shown. C, Immunofluorescent microscopy of skin sections of CCR10EGFP/EGFP and wild-type mice costained with FITC-conjugated anti-Vγ3 and Alexa 647-conjugated anti-CD3 Abs. The dashed lines run along borders of the epidermis and dermis. Isotype controls are shown at the bottom. Original magnification ×100. D, Quantification of epidermal and dermal Vγ3+ cells of CCR10EGFP/EGFP and wild-type mice based on the immunofluorescent microscopic analyses in C. Five mice of each genotype were analyzed, with more than 10 fields counted for each mouse.

FIGURE 6.

Abnormal accumulation of Vγ3+ γδ T cells in dermal regions of CCR10-knockout mice. A, FACS analysis for Vγ3+ sIELs in cells isolated from epidermis of CCR10EGFP/EGFP and wild-type mice. B, FACS analysis for Vγ3+ T cells in cells isolated from the dermal regions of the CCR10EGFP/EGFP and wild-type mice. A set of representative plots of at least three experiments is shown. C, Immunofluorescent microscopy of skin sections of CCR10EGFP/EGFP and wild-type mice costained with FITC-conjugated anti-Vγ3 and Alexa 647-conjugated anti-CD3 Abs. The dashed lines run along borders of the epidermis and dermis. Isotype controls are shown at the bottom. Original magnification ×100. D, Quantification of epidermal and dermal Vγ3+ cells of CCR10EGFP/EGFP and wild-type mice based on the immunofluorescent microscopic analyses in C. Five mice of each genotype were analyzed, with more than 10 fields counted for each mouse.

Close modal

We then performed immunofluorescent microscopic analysis of skin sections to directly visualize Vγ3+ T cells in the epidermis and dermis. In wild-type mice, a majority of Vγ3+ T cells reside in the epidermis, although many were also found in the dermis, specifically in the epithelia surrounding hair follicles (Fig. 6C, 6D; Supplemental Fig. 5). Compared with wild-type controls of corresponding compartments, CCR10-knockout mice showed fewer Vγ3+ cells in the epidermis but more Vγ3+cells in the dermis (Fig. 6C, 6D). As a result, CCR10-knockout mice, on average, had many more Vγ3+ cells in the dermis than in the epidermis (Fig. 6D), confirming that CCR10 is indeed important in maintaining the proper distribution of Vγ3+ cells within the skin. In addition, a majority of Vγ3+ cells in the dermis of CCR10-knockout mice still resided in the epithelia surrounding the hair follicles, although some could be found outside the hair follicles (Fig. 6C).

Considering the dominant expression of the CCR10 ligand CCL27 by keratinocytes, the most likely underlying mechanism for the number, morphology, and distribution of Vγ3+ γδ T cells in the skin of CCR10-knockout mice is due to the defective homing and positioning of the Vγ3+ sIEL precursors in(to) the skin in the absence of the CCR10/ligand interaction. In contrast, the CCR10/ligand interaction is unlikely to be involved in the survival/proliferation of sIELs in the skin, because sIELs expanded in CCR10-knockout mice as much as in wild types from the newborn to adult stages and the reduction in numbers of sIELs in CCR10-knockout mice is, in fact, less evident when the mice become older (Fig. 4E). This observation suggests that the CCR10-deficient sIEL precursors are capable of a homeostatic expansion. Therefore, we performed in vitro migration assays to test directly whether the CCR10-deficient Vγ3+ fetal thymocytes were defective in migration to the skin. As expected, the CCR10EGFP/EGFP Vγ3+ thymocytes were unable to migrate toward CCL27 at all, indicating that CCR10 is the only chemokine receptor expressed by sIEL precursors for CCL27 (Fig. 7A). Importantly, the CCR10EGFP/EGFP Vγ3+ thymocytes also had defects in the migration toward culture media of the fetal skin (Fig. 7B), suggesting that they have impaired ability in CCL27-mediated skin homing.

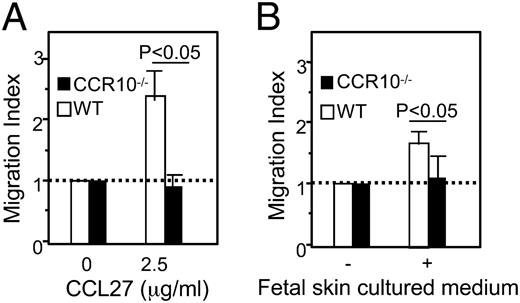

FIGURE 7.

Defective migration of CCR10EGFP/EGFP fetal thymic Vγ3+ cells toward CCL27 and skin in the in vitro chemotaxis assay. The migration index is calculated as the ratio of numbers of Vγ3+ cells migrating into the bottom chamber in the presence of CCL27 (A), conditioned medium of fetal skin culture (B) versus medium only. The experiments were repeated twice.

FIGURE 7.

Defective migration of CCR10EGFP/EGFP fetal thymic Vγ3+ cells toward CCL27 and skin in the in vitro chemotaxis assay. The migration index is calculated as the ratio of numbers of Vγ3+ cells migrating into the bottom chamber in the presence of CCL27 (A), conditioned medium of fetal skin culture (B) versus medium only. The experiments were repeated twice.

Close modal

Complementing the SLO-residing conventional T cells, various populations of nonclassical, innate-like T cells predominantly localize in specific nonlymphoid tissues as the first line of defense. However, development of tissue-specific T cells is not well understood. Our study on murine sIELs found that compared with other thymic T cell subsets, the fetal thymic Vγ3+ sIEL precursors had a unique skin-homing property (CCR10highαEβ7highCCR7lowCD62LlowCCR9lowα4β7low) that plays an important part in their peripheral localization. Using a newly generated strain of CCR10-knockout/EGFP-knockin mice, we demonstrate that the positive selection-associated upregulation of CCR10 on the fetal thymic Vγ3+ sIEL precursors is important for their seeding into the skin. In addition, we also show that CCR10 is important for maintaining the proper morphology and epidermal distribution of Vγ3+ γδ T cells within the skin.

The skin-seeding, dendritic morphology, and proper epidermal distribution of sIELs are likely linked events mediated by the CCR10/ligand interaction. In the skin, keratinocytes of the epidermis highly express CCL27, a ligand for CCR10 (17, 33). In the absence of CCR10/CCL27 signals, fetal thymic Vγ3+ T cells could not migrate into the epidermis efficiently and might end up in other regions of the skin and possibly other tissues. However, we did not find Vγ3+ cells in several tissues we tested in adult CCR10-knockout mice, including the spleen, lymph node, and female reproductive tract (data not shown). This finding suggests that even if the CCR10-knockout fetal thymic Vγ3+ cells migrate into tissues other than the skin, they might not be able to survive and proliferate.

Because sIELs are in direct contact with keratinocytes in the epidermis, CCL27 secreted by keratinocytes likely acts on CCR10 expressed on sIELs in a concentrated fashion to help maintain the morphology and location of Vγ3+ cells within the epidermal region. Therefore, in the absence of CCR10/CCL27 signals, the Vγ3+ cells could neither maintain their dendritic shape nor attain the epidermal location properly, resulting in their redistribution in the dermal region of the skin. Interestingly, the Vγ3+ cells in dermal regions of CCR10-knockout mice were still predominantly localized in the hair follicle regions, as in wild-type mice (34), suggesting that they are specifically attracted to these sites. It will be interesting to determine what other molecules are involved in their positioning in the follicles. It was previously reported that sIELs rounded up in response to the local stimulation and moved away from the epidermis (35). It is possible that the morphological changes of sIELs due to absence of CCR10-mediated signals are analogous to the induced morphological changes during their activation.

The effects of CCR10 on the migration, morphology, and in-skin distribution of Vγ3+ sIELs are associated with the regulated expression of CCR10 in the sIELs and their precursors. This is likely involved in the calibration of the interaction strength between sIELs and neighboring keratinocytes for their proper distribution and functions. A high level of CCR10 expression is likely needed for the efficient migration of sIEL precursors in(to) the skin, but not for their retention once they are inside. In contrast, continuous strong CCR10/ligand interaction could break the homeostasis balance of sIELs and other skin cells and might affect functions of sIELs, especially considering that the skin can upregulate the expression of CCL27 during inflammation (36). Although the sIELs had downregulated CCR10 expression from the level expressed by their precursors, they seemed to upregulate the expression of other chemokine receptors. A recent report found that although very few fetal thymic sIEL precursors expressed CCR4, nearly all the adult sIELs of the skin did, suggesting that CCR4 is upregulated on the sIELs or that CCR4+ sIELs selectively expanded in the skin (18). These findings indicate that there is a dynamic switch in the expression of chemokine receptors on sIELs from their fetal thymic precursors that might be important for their proper maintenance and functions in the skin.

Despite the severely impaired skin-seeding of CCR10-deficient sIEL precursors at the fetal stage, the number of sIELs in adult CCR10EGFP/EGFP mice was only mildly reduced from that in wild-type mice, whereas the number of Vγ3+ γδ T cells in the dermal region was even higher in CCR10EGFP/EGFP mice. This finding suggests that besides CCR10, other homing molecules are able to direct their localization in the skin. Possible candidate homing molecules for this include E- and P-selectin ligands (18). In addition, the results also suggest that CCR10 is not critical for survival or proliferation of sIELs in the skin. In fact, the severe early defect in skin-seeding by CCR10EGFP/EGFP sIEL precursors is gradually compensated for during the phase of sIEL expansion in the skin when the mice become older. Therefore, given time, the fewer CCR10EGFP/EGFP sIEL precursors that made it to the skin could expand efficiently to reach the level found in the wild-type mice. This might explain why an earlier report using a different strain of CCR10-knockout mice found no defect of sIELs in adult CCR10EGFP/EGFP mice (18). Although local factors in the skin responsible for the survival and expansion of sIELs are not fully elucidated, one possible explanation is IL-15 produced by certain skin cells, which could act on IL-15Rs expressed by the sIELs. Reports show that no sIELs developed in IL-15 knockout mice or CD122 (IL-15Rβ) knockout mice (37, 38).

Besides providing direct evidence that CCR10 is dynamically expressed by the sIELs and their precursors, our studies with the CCR10-knockout/EGFP-knockin mice also revealed that CCR10 is expressed on significant percentages of several other nonconventional thymic T cell subsets but rarely on conventional CD4+ or CD8+ αβ T cells. Although the biological importance of these observations requires further investigation, the expression pattern is consistent with the fact that many of the nonconventional T cells preferentially localize into epithelial tissues, such as intestines, reproductive tracts, and skin, that express the ligands for CCR10. This observation supports the notion that different thymic development and selection processes of the specific T cell subsets might endow them with specific homing properties for unique peripheral localizations. This is particularly intriguing, considering that the various nonclassical, tissue-specific lymphocyte populations, such as MALT, CD8αα+ T cells, NKT cells, and even B1 B cells, all undergo unique developmental processes in the thymus (or bone marrow) that are different from those of conventional T or B cells (1, 3945). The CCR10-knckout/EGFP-knockin mouse would be a useful tool to study how the development processes of specific thymic T cell subsets are involved in CCR10 expression and to determine how the expression of CCR10 is involved in their peripheral localization. In addition, it will be interesting to understand how the regulated expression of CCR10 occurs in local skin tissue. Like the upregulation of CCR10 in positively selected fetal thymic sIEL precursors, its downregulation in sIELs likely depends on the local environment. Although yet to be addressed, this downregulation is not due to a negative feedback mechanism associated with the CCR10/ligand interaction in the skin, because the EGFP signal was downregulated on sIELs of CCR10EGFP/EGFP mice that did not express CCR10. Instead, this might be a process associated with the expansion, maintenance, and function of sIELs in the skin.

We thank Drs. Joonsoo Kang, David Wiest, David Raulet, Jianke Zhang, and Avery August for discussion and comments and Thomas Salada for the ES cell microinjection.

Disclosures The authors have no financial conflicts of interest.

This work was supported by grants from the National Institutes of Health (to N.X.) and, in part, under a grant with the Pennsylvania Department of Health using Tobacco Settlement Funds (to N.X.). The department specifically disclaims responsibility for any analyses, interpretations, or conclusions.

The online version of this article contains supplemental material.

Abbreviations used in this paper:

EGFP

enhanced GFP

ES cell

embryonic stem cell

neo+

recombinant CCR10-knockout ES cells with the neo cassette

neo/neo

homozygous CCR10-knockout/EGFP-knockin mice with the neo cassette deleted

+/neo

heterozygous CCR10-knockout/EGFP-knockin mice with the neo cassette deleted

−RT

no reverse transcription

S

SacI

sIEL

skin intraepithelial Vγ3+ T lymphocyte

SLO

secondary lymphoid organ

S1PR1

sphingosine 1-phosphate receptor 1.
