Induction of Th17 Cells in the Tumor Microenvironment Improves Survival in a Murine Model of Pancreatic Cancer

The role of CD4⁺ T cells in tumor immunity is poorly understood. Naive CD4⁺ T cells differentiate into mature Th1, Th2, Th17, or T regulatory cells (Tregs). We and others (1–9) have shown that Tregs suppress immune responses and induce tolerance at tumor sites. Treg and Th17 cells share a common lineage, and terminal differentiation of suppressor versus effector cells at the tumor site may tip the balance between tolerance and tumor rejection. Moreover, recent evidence suggests that mature Tregs can be reprogrammed into competent Th17 effector cells, and the plasticity of T cell lineage may be an important mechanism by which immune homeostasis is maintained (10, 11). Efforts to manipulate Treg function to release immune effector cells from immunosuppressive regulatory controls have become of increasing interest to tumor immunologists.

Th17 cell lineage commitment is initiated by TGF-β and IL-6, and the lineage is maintained by IL-23 and amplified by the autocrine release of IL-21 (12–18). The transcription factors retinoic acid-related orphan receptor (ROR) γt and STAT3 are essential for the differentiation of Th17 cells and IL-17 cytokine expression (19–21). IL-17 is a potent inflammatory cytokine that works on a variety of cell types including fibroblasts, endothelial cells, and epithelial cells to induce the expression of other inflammatory cytokines, such as IL-6, TNF, G-CSF, chemokines, and matrix metalloproteases, all of which coordinate to produce a robust inflammatory response (22–27).

Th17 cells have been implicated in many autoimmune diseases, but their role in cancer has not been fully elucidated and remains controversial (22, 28–33). Increased levels of Th17 cells have been detected in many human cancers, including ovarian, pancreatic, renal cell, and gastric cancer (34, 35). Some studies report that the presence of higher levels of Th17 cells in tumor tissues or peripheral blood correlate with advanced cancer (36). Other studies describe the opposite and suggest that Th17 cells may have a potent antitumor effect, being found in patients with limited disease or long-term survivors (37, 38). In murine models, tumor-specific Th17-polarized cells that recognized an Ag expressed by both normal melanocytes and B16 melanoma eradicated the established melanoma tumors and improved survival (39). Also, inflammatory killing induced in the normal prostate through an IL-6/IL-17–mediated autoimmune response was shown to be effective at rejecting established metastatic murine prostate tumors (40). These studies suggest Th17 cells may play a vital role in tumor rejection based on the intimate relationship between autoimmunity and antitumor immunity for tissue-specific Ags.

Tregs, in contrast, maintain immune homeostasis by inhibiting effector T cell proliferation and autoimmune responses (41, 42). Interestingly, Tregs are upregulated in the peripheral blood and tumor microenvironment in many cancers including pancreatic cancer (1–9). High serum levels of TGF-β have also been found in many types of cancer, especially pancreatic cancer, in which elevation of TGF-β in the serum may drive Treg differentiation and is correlated to tumor cell dissemination and poor survival (1, 3, 43). Likewise, an increased prevalence of Tregs correlates with more advanced cancer and is a marker of poor prognosis (5–7). When Tregs are blocked or depleted, a more effective antitumor effect is seen in mouse models of cancer (9, 44–46).

Recent evidence has shown that there exists an intricate and reciprocal regulation between Th17 cells and Tregs (10, 11, 14, 47). IL-6 plays a pivotal role in the CD4⁺ T cell lineage differentiation. Although TGF-β induces the differentiation of Tregs via Foxp3 transcription, IL-6 inhibits the differentiation of Tregs and, along with TGF-β, drives the differentiation of naive CD4⁺ T cells into Th17 cells (12–14, 48–52). Thus, we hypothesized that the addition of IL-6 to the pancreatic tumor microenvironment rich in TGF-β may promote Th17 cell differentiation, which may lead to an improved antitumor response. To test this hypothesis, we genetically engineered the murine pancreatic cancer cell line Pan02, which naturally secretes TGF-β, to also produce IL-6. By changing the cytokine profile in the tumor microenvironment, we aimed to alter the balance of CD4⁺ T cells in favor of Th17 cells to produce a more effective antitumor response.

Human T cell leukemia virus–mIL6 encoding DNA sequence form pORF9-mIL6 (InvivoGen, San Diego, CA) was subcloned into lentiviral vector pSicoR-puro with added XhoI-NheI restriction sites. For lentivirus generation, HEK-293T cells were transfected with pSicoR-mIL6 vector and VSVG in Opti-MEM media using Fugene-6 (Roche Diagnostics, Indianapolis, IN). After overnight culture, serum containing media was added, and the incubation was allowed to continue for an additional 48 h. The first and second viral harvests, performed at 48 and 72 h posttransfection, respectively, were used to transduce the murine pancreatic adenocarcinoma Pan02 cell line (also known as Panc-02) (53). Viral supernatants were filtered through a 0.45-μm Millipore filter (Millipore, Billerica, MA) and used directly to infect cells with protamine sulfate (Sigma-Aldrich, St. Louis, MO) at a concentration of 6 μg/ml. Puromycin-resistant cells were selected. Pan02 cells transduced with empty vector (EV) were used as a control. IL-6 transcript was confirmed by quantitative RT-PCR with primers: IL-6 sense: 5′-CCGGAGAGGAGACTTCACAG-3′ and IL-6 antisense: 5′-TCCACGATTTCCCAGAGAAC-3′. Protein expression of IL-6 was confirmed by ELISA.

Pan02 is a murine pancreatic adenocarcinoma cell line syngeneic to C57BL/6 and was obtained from the Division of Cancer Treatment Tumor Repository (National Cancer Institute-Frederick Cancer Research and Development Center, Frederick, MD). All tumor cell lines, including wild-type (nontransduced) Pan02 cells (WT Pan02), empty control vector Pan02 cells (EV Pan02), and IL-6 transduced Pan02 cells (IL-6 Pan02), were maintained in culture at 37°C in humidified air (5% CO₂) in complete media consisting of 1× high-glucose DMEM (Life Technologies, Carlsbad, CA) supplemented with 10% FBS (Hyclone, Logan, UT), 1% penicillin/streptomycin (Cellgro, Manassas, VA), and 10 mM HEPES buffer (Cellgro). Puromycin was added to the media at a concentration of 2 μg/ml bimonthly to ensure that transduced cell lines were stable.

Single-cell suspensions of each of the tumor cell lines were stained with 5 μM CFSE (1 μl/1 × 10⁷ cells) in PBS for 10 min at 37°C. After washing, cells were plated in six-well plates at 2 × 10⁵ cells/well in complete media. Cells were incubated at 37°C for 40 h before being washed and fixed. Proliferation was detected by reduction of CSFE fluorescence. Cells stained, washed, and fixed at time 0 were included in the experiment as control. The samples were analyzed with FlowJo 7.2.4 software (Tree Star, Ashland, OR). Triplicate samples were analyzed for each of the independent experiments.

Young (6–8 wk) female C57BL/6 mice were purchased from either the National Cancer Institute (Frederick, MD) or The Jackson Laboratory (Bar Harbor, ME) and maintained in our animal care facility with ad libitum access to water and mouse chow. Per experiment, 30 C57BL/6 mice were divided into three groups of 10 mice each and were given s.c. injections into the right hind leg of either 1 × 10⁴ or 5 × 10⁴ WT Pan02 cells, EV Pan02 cells, or IL6 Pan02 cells in a total volume of 0.1 ml. Tumor growth was measured every 5 d, and palpable tumors were measured in two perpendicular axes with a Vernier caliper. Mean tumor size was calculated by multiplying the two size measurements together. Mice were allowed to die spontaneously or sacrificed when tumor size was >2 cm in one direction (in accordance with institutional guidelines) or when there was severe ulceration of the leg from the tumor that affected ambulation. All measurements were performed in a blinded fashion. Tumor growth and survival experiments were repeated independently three times with similar results. All experimental protocols were approved by the institutional Animal Studies Committee, and all murine experiments were conducted in compliance with institutional guidelines for the use of research animals.

Cytokine amounts in tissue-culture supernatants were assayed with ELISA Ab pairs for IL-6 (eBioscience, San Diego, CA) and TGF-β (BD Pharmingen, San Jose, CA) in accordance with the manufacturer’s recommendations. For IL-6 and TGF-β cytokine measurements, 2 × 10⁵ tumor cells were plated in six-well plates in 2 ml complete media. After 2 h, supernatants were assayed for cytokine amounts. For detecting TGF-β, culture supernatants were activated by acid treatment for measurement of total TGF-β. For serum IL-6 cytokine measurement, blood from mice was obtained by retro-orbital bleed. All experiments were run in triplicate.

For functional studies, 30 C57BL/6 mice were divided into three groups of 10 mice each and were given s.c. injections into the right hind leg of 5 × 10⁴ of WT Pan02 cells, EV Pan02 cells, or IL-6 Pan02 cells in a total volume of 0.1 ml. Tumors that were ∼1 cm in diameter were harvested after mice had been sacrificed. Tumors were mechanically dissociated into 1 mm³ pieces and then placed into the gentleMACS Dissociator (Miltenyi Biotec, Auburn, CA) with 10 ml enzyme digest consisting of collagenase (0.1 g/100 ml), DNase (0.01 g/100ml), and hyaluronidase (2.5 U/ml) (all from Sigma-Aldrich) in RPMI 1640 (Sigma-Aldrich) and dissociated on a preset protocol. Tumor digest was then placed on a neutator and incubated at 37°C for 30 min before dissociating in the gentleMACS again (Miltenyi Biotec). The cells were then washed with complete media and passed through 40-μm nylon mesh to obtain single-cell suspensions. CD4⁺ cells were isolated using BD IMag anti-CD4 magnetic particles according to the manufacturer’s instructions (BD Biosciences, San Jose, CA) and used for the functional assays.

A section of each murine pancreatic adenocarcinoma was embedded in disposable base molds containing Tissue-Tek OCT Compound (Sakura Finetek USA, Torrance, CA), then snap frozen over liquid nitrogen and stored at −80°C. Embedded tumor tissue was sectioned on a Leica CM1900 cryostat (Leica Microsystems, Bannockburn, IL) at 10 μm, placed on SuperFrost Plus slides (Fisher Scientific, Pittsburgh, PA), and then stored at −80°C until use.

For CD4⁺IL-17⁺ and CD4⁺Foxp3⁺ double staining, frozen tissue sections were fixed for 10 min in 1% paraformaldehyde in PBS. Sections were then permeabilized with 0.05% saponin in distilled H₂O for 15 min. For CD4⁺IL-23R⁺ double staining, frozen sections were fixed in cold acetone for 10 min at −20°C and then dried at room temperature. All sections were blocked in Serum-Free Protein Block (Dako, Carpinteria, CA) for 30 min. Primary Abs for IL-17 (Santa Cruz Biotechnology, Santa Cruz, CA), Foxp3 (Abcam, Cambridge, MA), IL-23R (Abcam), or CD4 (eBioscience) were diluted at 1:100, 10 μg/ml, 1:250, or 1:30, respectively, in Ab Diluent (Dako) and added for 1 h at room temperature.

For CD4⁺IL-17⁺ and CD4⁺Foxp3⁺ staining, Alexa Fluor 647 donkey anti-rabbit IgG and Alexa Fluor 555 goat anti-rat IgG secondary Abs (Invitrogen, Carlsbad, CA) were diluted at 1:200 in Ab Diluent and added for 30 min at room temperature in the dark. For CD4⁺IL-23R⁺ staining, Alexa Fluor 555 donkey anti-goat IgG (Invitrogen) and biotinylated rabbit anti-rat IgG (Vector Laboratories, Burlingame, CA) secondary Abs were diluted 1:200 in Ab Diluent and added for 30 min at room temperature in the dark. Alexa Fluor 647 strepavidin conjugate (Invitrogen) was diluted at 1:200 in Ab Diluent and added for 30 min at room temperature in the dark.

Confocal images were taken at ×400 magnification on an Axiovert 100M microscope equipped with an LSM 510 confocal microscopy system (Zeiss, Jena, Germany).

RNA was isolated from CD4⁺ tumor-infiltrating lymphocytes (TILs) using the RNeasy Protect Mini Kit (Qiagen, Valencia, CA) according to the manufacturer’s instructions. A total of 500 ng total RNA was reverse transcribed into cDNA in a 20 μl reaction containing the following reagents (Invitrogen): 200 U Superscript II, 1× First Strand Buffer, 10 mM DTT, 250 ng random primers, 0.5 mM 2′-deoxynucleoside 5′-triphosphates, and 40 U RNaseOUT. Reactions were performed according to the manufacturer’s instructions.

For real-time quantitative PCR, the following predesigned mouse TaqMan Gene Expression Assays from Applied Biosystems (Carlsbad, CA) were used: Foxp3, IL-17, IL-23R, and the endogenous control GAPDH. In addition, the following primers and probe for mouse RORγt were synthesized by Applied Biosystems: forward: 5′-CCGCTGAGAGGGCTTCAC-3′, reverse: 5′-TGCAGGAGTAGGCCACATTACA-3′, probe: 5′-FAM-AAGGGCTTCTTCCGCCGCAGCCAGCAG-MGBNFQ-3′ (20). For RORγt, a ready-to-use 20× stock primer/probe mixture was made (primers: 18 μM each; probe: 5 μM). Each sample was run in triplicate. Reactions were initially denatured at 95°C for 20 s, then a two-step amplification was performed at 95°C for 3 s and 60°C for 30 s for 40 cycles. For quantitative analysis, relative expression levels were determined with 7500 Fast Real-Time System Sequence Detection Software (v1.3.1, Applied Biosystems). Target gene expression levels were normalized to GAPDH. Relative RNA expression levels were determined using the 2^−ΔΔCT method.

CD4⁺ lymphocytes were harvested from WT Pan02, EV Pan02, or IL-6 Pan02 tumors when the tumor was ∼1 cm in diameter (as described above). The CD4⁺ lymphocytes were assessed for their ability to produce IL-17 using a commercially available murine IL-17A ELISPOT (eBioscience). In precoated wells, 0.75 × 10⁵ or 1.5 × 10⁵ CD4⁺ tumor-derived lymphocytes were plated in duplicate wells with medium containing 50 ng/ml PMA plus 500 ng/ml ionomycin. After ∼20 h, the plate was developed according to the manufacturer’s instructions except for the substitution of avidin-alkaline phosphatase for avidin-HRP followed by the alkaline phosphatase substrate BCIP/NBT, and the spots were counted with an ImmunoSpot Series I analyzer (Cellular Technology, Cleveland, OH). Results are presented as the average number of spot-forming cells per 5 × 10⁵ cells plated and corrected for the background medium.

Tumors were harvested from both WT and IL-6 tumor-bearing mice when tumors were ∼1 cm in greatest diameter. Tumors were weighed before creating single-cell suspensions using a combination of mechanical and enzymatic digestion per the mPAC tumor protocol provided by Miltenyi Biotec (as described above). Tumor cell suspensions were passed over 70-μm and 40-μm filters in succession in sterile RPMI 1640 before being resuspended in complete RPMI 1640 and counted for absolute number of cells. Cells were then incubated for 6 h at 37°C in complete RPMI 1640 in the presence of 5 ng/ml PMA and 10 uM ionomycin (Invitrogen) with brefeldin A (BioLegend, San Diego, CA). Poststimulation, cells were washed and used for flow cytometry.

To determine the frequency of Tregs and Th17 cells within the TIL population, flow cytometry was used to analyze TILs after brief stimulation (as described above). After washing, cells were stained with CD45, CD4, CD8, and NK1.1 (all from BioLegend) for cell-surface analysis. After cell-surface staining, cells were stained for intracellular IFN-γ, Foxp3, and IL-17A (all from eBioscience) using the Foxp3 staining kit from eBioscience per manufacturer protocol. After gating on CD45⁺ cells, cells were gated for either CD4⁺ or CD8⁺ cells. CD4⁺ cells were subsequently analyzed for Foxp3 or IL-17. Tregs were identified as being CD45⁺CD4⁺Foxp3⁺, and Th17 cells were identified as CD45⁺CD4⁺IL-17⁺ cells. CD8⁺ cells were further analyzed for IFN-γ secretion.

To correct for variation in tumor size, cells of interest (i.e., Th17 cells and Tregs) were quantified per gram of tumor tissue (cells/g). The ratio of Th17 and Tregs could then be calculated for both tumor types. All flow cytometry was analyzed using the LSRII (BD Biosciences) and FlowJo analysis software (Tree Star). Pooled samples were used for the analysis.

Kaplan-Meier survival curves were generated to compare differences in survival probabilities with the log-rank test. Tumor growth over a period of time was analyzed by using linear trend analysis. Data from ELISA and ELISPOTs were analyzed by the Student t test. All tests were two sided, and p < 0.05 was considered statistically significant.

WT Pan02 cells were genetically modified to express the mIL6 gene (IL-6 Pan02) or EV Pan02. IL-6 secretion was confirmed by ELISA for the IL-6 Pan02, whereas no IL-6 was produced by WT Pan02 or EV Pan02 (Fig. 1A). The transduced IL-6 Pan02 cells retained their ability to produce and secrete IL-6 in vivo as determined by detection of IL-6 in the serum of IL-6 Pan02 tumor-bearing mice (Supplemental Fig. 1) and by in vitro analysis of IL-6 Pan02 tumors grown ex vivo (data not shown). ELISA confirmed that all three cell lines produced similar amounts of TGF-β, ensuring that the gene for TGF-β had not been disrupted by the transduction with the lentiviral vector (Fig. 1B). All three cell lines had nearly identical in vitro growth characteristics (proliferative rate, doubling time) as determined by CFSE fluorescence (Fig. 1C).

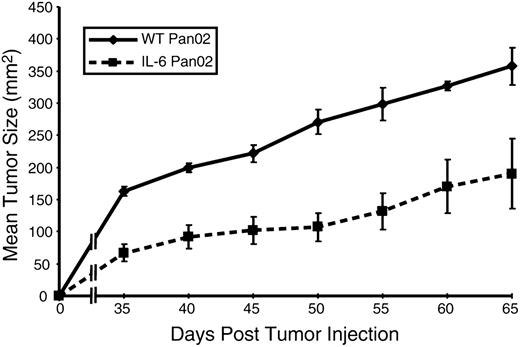

To investigate the impact of IL-6 in the TGF-β-rich pancreatic tumor microenvironment, 1 × 10⁴ IL-6 Pan02 cells or WT Pan02 cells were injected s.c. into the right hind leg of C57BL/6 mice. Tumors were measured every 5 d. Mice injected with IL-6 Pan02 developed significantly smaller tumors compared with mice injected with WT Pan02 tumors (p < 0.05; Fig. 2). Of the mice injected with IL-6 Pan02 tumors, 3 of the 10 mice never developed palpable tumor. This experiment was repeated three times with similar results. In contrast, all mice injected with WT Pan02 tumor grew tumors and eventually died of disease. Therefore, the production of IL-6 and TGF-β in the Pan02 tumor microenvironment caused a significant reduction in tumor growth.

To determine if the reduction in tumor growth also translated into a survival advantage, mice were followed until death. Mice bearing IL-6 Pan02 tumors showed a significant survival advantage compared with mice bearing WT Pan02 tumors (Fig. 3). The median survival of mice bearing IL-6 Pan02 tumors was 80 d (range 60–110 d) compared with 55 d (range 40–65 d) for WT Pan02 tumors (p < 0.001). Thus, the secretion of IL-6 in the tumor microenvironment significantly reduced tumor growth and prolonged survival.

To perform mechanistic studies, mice were inoculated with a greater number of tumor cells so that sufficient numbers of CD4⁺ TILs could be obtained from both IL-6 Pan02 tumors and control tumors. Tumor growth analysis in mice injected with 5 × 10⁴ tumor cells showed that there was a significant reduction in growth of IL-6 Pan02 tumors compared with either EV Pan02 tumors or WT Pan02 tumors (p < 0.05; Fig. 4). Analysis of tumor weights at 5 wk also confirmed that IL-6 Pan02 tumors were smaller than either WT or EV Pan02 tumors. IL-6 Pan02 tumors had an average weight of 0.94 g compared with WT Pan02 tumors with an average weight of 1.74 g or EV Pan02 tumors with an average weight of 2.12 g (p < 0.05 for IL-6 tumor weights compare with WT or EV tumor weights).

By modifying the tumor cytokine environment with the addition of IL-6 and showing an antitumor effect, we hypothesized that there was either a downregulation of Tregs or an induction of Th17 cells. Immunohistochemistry was initially performed to analyze the tumor-immune infiltrate when tumor sizes were, on average, 1 cm in diameter. IL-6 Pan02 tumors qualitatively showed increased staining for the cell surface IL-23R and intracellular IL-17 (both markers for Th17 cells) when compared with WT Pan02 tumors (Fig. 5A, 5B). Of note, there also appeared to be a greater CD4⁺ infiltrate in the IL-6 Pan02 tumors. Intracellular staining for Foxp3 was observed in both the IL-6 Pan02 tumors and WT Pan02 tumors (Fig. 5C). Thus, it appeared that there was an induction of Th17 cells in the tumors secreting IL-6 and TGF-β.

Freshly isolated CD4⁺ TILs from tumors ∼1 cm in diameter were lysed, and mRNA was purified. cDNA was synthesized from this mRNA and used in a real-time PCR assay as described in the 1Materials and Methods section. RT-PCR for all of the markers of interest was first normalized to the internal control GAPDH. mRNA from CD4⁺ TILs of WT Pan02 tumor cells was used as a reference to compare EV and IL-6 Pan02 CD4⁺ TIL marker profiles, expressed as a fold difference. Markers of interest included IL-17, RORγt, IL-23R (for Th17 cells), and Foxp3 (for Tregs). Expression levels of all markers were similar between the WT Pan02 tumors and EV Pan02 tumors (i.e., no fold difference), as expected. However, expression of IL-17, RORγt, and IL-23R in CD4⁺ TIL from IL-6 Pan02 tumors was significantly higher than in CD4⁺ TIL from either WT Pan02 tumors or EV Pan02 tumors, further demonstrating that Th17 cells are upregulated in the tumor microenvironment of tumors secreting IL-6 and TGF-β (Fig. 6). A small increase in expression of Foxp3 was also noted in the CD4⁺ TIL from the IL-6 Pan02 tumors.

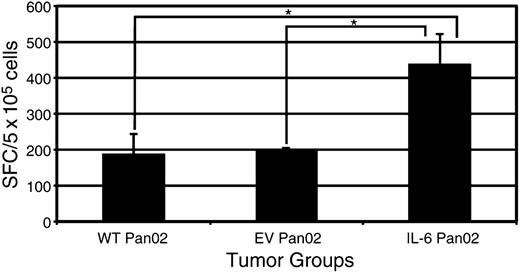

To obtain further confirmation that there was an upregulation of Th17 cells in the tumor microenvironment of mice bearing IL-6 Pan02 tumors, ELISPOT assay was used to detect IL-17 secreting CD4⁺ TILs. CD4⁺ TILs were isolated from IL-6 Pan02, WT Pan02, and EV Pan02 tumors and stimulated with PMA and ionomycin in IL-17 Ab-coated ELISPOT plates for ∼20 h. The ELISPOT assay depicted a significantly higher number of IL-17–secreting CD4⁺ TILs from the IL-6 Pan02 tumors compared with the EV Pan02 or WT Pan02 CD4⁺ TILs (Fig. 7). This result again supports the hypothesis that Th17 cells are being induced in the tumor microenvironment rich in IL-6 and TGF-β.

To assess if the Treg/Th17 ratio was altered by the addition of IL-6 in the tumor microenvironment, flow cytometry was used to quantify the Th17 and Treg infiltration in both tumors (as described in the 1Materials and Methods). Both the WT and IL-6 Pan02 tumors contained similar absolute number of cells per gram of tumor tissue (3.1 × 10⁷ cells/g versus 3.0 × 10⁷ cells/g, respectively), but the ratio of Th17 cells to Tregs were different between the two tumors. The WT Pan02 tumor contained 5.0 × 10⁴ Tregs/g and 8.5 × 10⁴ Th17 cells/g. The ratio of Th17 cells to Tregs in the TIL population of the WT tumor was 1.7. In contrast, the IL-6 Pan02 tumor contained 3.0 × 10⁴ Tregs/g and 2.5 × 10⁵ Th17 cells/g. So, for the IL-6 Pan02 tumor, the ratio of Th17 cells to Tregs was 8.3. In addition, the absolute number of Tregs in IL-6 Pan02 tumors was 1.7 times lower than in the WT Pan02 tumors, whereas the number of Th17 cells was 2.9 times higher in IL-6 tumors compared with WT tumors, suggesting that Th17 cells are most likely induced from naive CD4⁺ T cells. Gated CD45⁺CD4⁺ cells and percentage of Foxp3⁺ and IL-17⁺ cells for the WT and IL-6 Pan02 tumor are depicted in Fig. 8A and 8B. Thus, the addition of IL-6 to the tumor microenvironment induced Th17 cells and altered the balance of Th17 and Tregs in the tumor.

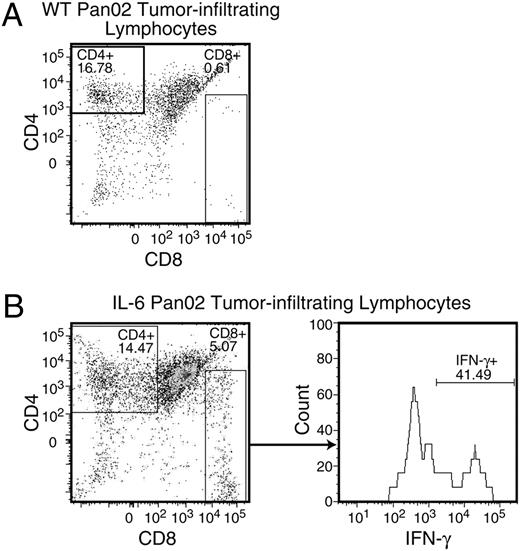

Because both IL-6 and TGF-β may affect other effector cells, flow cytometry was used to analyze the tumor suspensions for IFN-γ⁺CD8⁺ T cells and NK cells. Single tumor cell suspensions were again stimulated briefly, and flow cytometry was used to analyze the effector cells. In the WT tumor, there were too few CD8⁺ cells in the TIL population to analyze for IFN-γ secretion (Fig. 9A). However, there were considerably more CD8⁺ cells in the IL-6 Pan02 TIL population, with 41.5% secreting IFN-γ (Fig. 9B). Cells were also stained for NK1.1, the cell surface marker for NK cells, and analyzed by flow cytometry. In both the WT and IL-6 Pan02 TIL population, there were <2% NK cells (data not shown). Thus, there was a greater population of IFN-γ⁺CD8⁺ T cells in the TILs of the IL-6 Pan02 tumor, and NK cells were not predominant effector cells in either the WT or IL-6 Pan02 TILs.

In this study, we showed that induction of Th17 and altering the Treg/Th17 balance in the tumor microenvironment improves survival. Previous research has shown that Tregs are increased in the tumor microenvironment of patients and mice with pancreatic cancer (1, 6–9). By genetically engineering the murine Pan02 pancreatic adenocarcinoma cell line to express IL-6 cytokine, a Th17 cell population was induced compared with the WT Pan02 or control EV Pan02 tumors as shown by the increase in Th17 cell markers, especially IL-17 and RORγt. Mice injected with the IL-6–expressing Pan02 tumor cells demonstrated significantly delayed tumor growth and improved survival compared with mice bearing WT or EV Pan02 tumors. The different in vivo proliferation was not a direct effect of the IL-6 transduction because in vitro proliferation kinetics were the same among the WT, EV, and IL-6–transduced Pan02 tumors. Thus, the induction of Th17 cells in the tumor microenvironment appeared to mediate an antitumor response to the weakly immunogenic Pan02 pancreatic adenocarcinoma.

The few recently published studies on Th17 cells and cancer did not clearly define a protumor or antitumor role for Th17 cells. One study found an increased prevalence of Th17 cells in ovarian, renal, and pancreatic cancer, and another study found there was a higher percentage of Th17 cells in more advanced gastric cancer (34–36). More specifically, Zhang et al. (36) noted an increased prevalence of Th17 cells in tumor draining lymph nodes of patients with advanced gastric cancer and reported an association between higher gastric cancer stages and increasing percentages of Th17 cells in tumor tissues and peripheral blood. Although this may suggest an association between advancing cancer and Th17 cells, it does not take into account the ratio of Tregs to Th17 cells. It is not surprising that the cytokines in the tumor microenvironment would support the differentiation of both Th17 cells and Tregs, especially because high levels of both IL-6 and TGF-β are found in late stage tumors (54). Kryczek et al. (34) noted that most of the Th17 cell differentiation in advanced cancers occurred within the tumor and not within the tumor draining lymph nodes, suggesting the importance of cytokine expression in the tumor microenvironment for immune cell differentiation. Also, Kryczek et al. (34) showed that the ratio of Tregs to Th17 cells was significantly higher throughout murine B16 melanoma growth. Finally, the increased prevalence of Th17 cells in advanced cancers does not clarify Th17 cell function or how the larger percentage of Tregs may influence Th17 cell function. Thus, it may be more important to look at Treg to Th17 cell ratio in tumors to better elucidate the role of Th17 cells and how their function may be compromised by Tregs.

There are also recent studies that have shown an antitumor effect for Th17 cells. One study showed an inverse correlation between Th17 prostate-infiltrating lymphocytes and Gleason tumor grade in prostate cancer (37). Another study reported a larger percentage of Th17 cells in long-term survivors of small cell lung cancer and patients with limited disease, whereas patients with extended disease small cell lung cancer had more Tregs compared with effector CD4⁺ cells, including Th17 cells (38). Again, the balance between effector CD4⁺ cells and Tregs appears to reflect the disease progression, suggesting that a Treg-dominant, Treg/Th17 balance is associated with advanced cancer. Further support of Th17 cells in antitumor immunity has come from murine models looking at the impact of tumor-specific Th17 cells. Muranski et al. (39) reported Th17-polarized cells specific for a shared self- (melanocyte) and tumor Ag, tyrosinase-related protein 1, could eradicate established B16 murine melanoma tumors and improve survival, suggesting a potent antitumor effect. Even more convincingly, Kottke et al. (40) used a murine model to show that induced inflammatory killing of normal prostate, enhanced through an Hsp70 immune adjuvant and IL-6 expression, was mediated by a Th17 cell response. That Th17 cell autoimmune effector response was also found to reject established metastatic prostate tumors but not tumors of another histiologic type (B16 melanoma) suggests that the resultant antitumor response was against tissue-specific Ags. The data presented in this paper show that mice bearing Pan02 tumors that secreted IL-6 also induced the differentiation of Th17 cells in the tumor microenvironment, which resulted in delayed tumor growth and improved survival. Thus, it is likely that Th17 cells play some role in immune defense against tumor cells and that there may be an intimate connection between the Th17 cell response in autoimmune disease and antitumor immunity.

The skewing of TILs in the Pan02 murine model was dependent on the secretion of the IL-6 cytokine. As mentioned above, the skewing of TILs toward Treg dominance implies immune suppression and cancer progression, whereas T effector cell dominance (including Th17 cells) supports tumor rejection. The addition of IL-6 to the TGF-β–rich tumor microenvironment from our transduced cells skewed the TILs toward Th17 cells. We also anticipated inhibition of Treg differentiation because IL-6 has been shown to inhibit Tregs in vitro (14). Interestingly, there appeared to be similar, if not slightly lower, absolute numbers of CD4⁺Foxp3⁺ cells in the IL-6 Pan02 tumors compared with controls. Although the quantity of Tregs remained almost unchanged, the skewing of TILs toward Th17 cells appeared to overcome the function of the Tregs. There has been much research demonstrating that the blockade or depletion of Tregs slowed tumor growth and improved survival (9, 44–46). We have now discovered a way to suppress Treg function to promote a tumor-specific immune response.

The question that remains is how the upregulation of Th17 cells in the tumor microenvironment mediates its antitumor effect. Th17 cells secrete many cytokines that allow for the bridging of innate and adaptive immunity. IL-17 cytokine alone has been implicated in both impairing and promoting tumor immunity (55–58). IL-17 promotes dendritic cell maturation and may allow for better tumor Ag presentation and, consequently, a stronger T cell response. Th17 cells also secrete IL-6, which has been shown to have strong antitumor immunity and may activate tumor-specific cytotoxic T lymphocytes (59–61). Our results, with the greater population of IFN-γ⁺CD8⁺ T cells in the TILs of the IL-6 Pan02 tumor, support that thought. Finally, there may also be a neutrophil or NK cell recruitment to the tumor site that cooperates with other effector cells for a tumor-specific immune response. However, NK cells were not a large part of the lymphocyte infiltrate in either the WT or IL-6 Pan02 tumor. Therefore, the downstream effects of Th17 cells and the cytokines secreted need to be more fully investigated to illuminate the antitumor effects.

In conclusion, these findings provide evidence that altering the cytokines in the tumor microenvironment can shift the balance between Treg and Th17 cells in TILs. In this murine model of pancreas cancer, the addition of IL-6 to a TGF-β–rich tumor microenvironment allowed for the differentiation of Th17 cells and a greater population of IFN-γ⁺CD8⁺ T cells. This skewing of the TILs toward effector Th17 cells resulted in significantly delayed tumor growth and improved survival. This suggests that Th17 cells may play an important role in antitumor immunity, and strategies aimed at improving Th17 recruitment or differentiation in the tumor microenvironment may improve the efficacy of cancer treatments.

Disclosures The authors have no financial conflicts of interest.
