Herpes Simplex Virus Type 2 Infection of Human Epithelial Cells Induces CXCL9 Expression and CD4⁺ T Cell Migration via Activation of p38-CCAAT/Enhancer-Binding Protein-β Pathway

Herpes simplex virus type 2 (HSV-2) is a large dsDNA virus belonging to the herpesviridae family (1, 2). HSV-2 is the main cause of genital herpes, and its infection is common in the lower genital tract (3, 4). Although neuronal and immune cells can be infected, epithelial cells and keratinocytes are the primary HSV-2 target cells (5). It has been well documented from epidemiological studies that HSV-2 infection increases the risk of HIV-1 acquisition and transmission (6–9). Several mechanisms for this increased susceptibility have been proposed. For instance, the formation of pustules and ulcers by genital herpes may facilitate HIV-1 entry into mucosal tissues (10, 11). Analyses of biopsies of HSV-2 lesions from patients revealed that HSV-2 reactivation resulted in an influx of activated CD4⁺ T cells, which may facilitate HIV-1 infection and subsequent dissemination (12, 13). Immune activation of HIV-1 target cells, including dendritic cells and CD4⁺ T cells by HSV-2 infection, also likely enhances HIV-1 susceptibility (14). However, because HSV-2 preferentially infects epithelial cells, the molecular mechanisms underlying immune cell activation and migration after HSV-2 infection remain to be determined.

Based on previous findings that intact human cervicovaginal epithelium provides a significant barrier to HIV-1 infection (15–17), we hypothesized that HSV-2 infection of mucosal epithelium might recruit CD4⁺ T cells, the main target cells in early HIV-1 infection (18, 19), to infection areas and facilitate HIV-1 transmission via perturbation of epithelial integrity. Chemokines constitute a family of small, secretory proteins that are expressed constitutively or in an inducible manner. Their main functions are to recruit leukocytes to sites of infection and inflammation and to contribute to the homeostatic circulation of leukocytes (20, 21). Most chemokines share four cysteine residues that are thought to be crucial for the tertiary structure of the proteins. The four subfamilies of chemokines, CXC, CC, C, and CX3C, are characterized by the position of the N-terminal cysteine residues (20, 21). Recent study indicates that chemokine CXCL9 can be induced in mice after HSV-2 infection and its expression is crucial for control of genital HSV-2 infection (22), although the mechanism remains to be addressed. The receptor for CXCL9, CXCR3, is functionally expressed on activated T and B cells, NK cells, and endothelial cells (23, 24). CXCL9, mainly induced by IFN-γ in macrophages, is implicated in chronic inflammation and viral infections as well as in T cell trafficking, chemotaxis, and activation (25). Because the infiltration of inflammatory cells in genital tissues in turn may increase the frequency of HIV-1 transmission, it is important to understand whether HSV-2 can promote CXCL9 expression in human epithelial cells.

In the current study, we observed that CXCL9 expression was elevated in cervical mucus samples of HSV-2–positive women. By using human cervical epithelial cells as a model, we demonstrated a direct induction of CXCL9 expression induced by HSV-2 infection. We further explored the molecular mechanisms underlying HSV-2–induced CXCL9 expression and CD4⁺ T cell migration. Our findings indicate that HSV-2 infection directly induces the expression of CXCL9, and that a C/EBP-β binding site in CXCL9 core promoter region is critical for transcriptional activation of CXCL9 by HSV-2. Further study identified a critical role played by p38-C/EBP-β pathway in the HSV-2–induced CXCL9 expression and CD4⁺ T migration. Our study provides a potential new mechanism underlying the enhancement of HIV-1 acquisition and transmission by HSV-2 infection.

Cervical mucus samples of women aged 20–59 y were obtained from Renming Hospital at Wuhan, with 45 samples serologically HSV-2 positive and 41 HSV-2 negative, as confirmed by ELISA and PCR.

Human cervical tissues were obtained from women undergoing planned therapeutic hysterectomy in the absence of any cervical pathology at Hubei Hospital of Traditional Chinese Medicine. Primary human cervical epithelial cells were isolated, as described previously (26, 27). Briefly, tissues were cut into 3-mm × 3-mm size and digested by collagenase for 30 min. The separated cells were filtered through a stainless steel strainer (0.5–1.0 mm) and cultured in complete medium for 3 h, and then the inflammatory cells were discarded.

PBMCs were isolated from healthy donors by using a Ficoll-Hypaque density gradient. CD4⁺ T cells were separated from PBMCs using CD4⁺ T Cell Negative Isolation Kit, according to the manufacturer’s protocol (Miltenyi Biotec). PBMCs and CD4⁺ T cells were activated by stimulating with 1 μg/ml PHA (Sigma-Aldrich) for 3 d. Subsequent cultures were in the presence of 20 U/ml IL-2 (R&D Systems).

All protocols involving human subjects were reviewed and approved by the local Research Ethics Committee. Informed written consents from the human subjects were obtained in this study.

HSV-2 (G strain) was obtained from Laboratory of the Government Chemist standards and propagated in Vero cells. Virus stock was stored at −80°C before used for infection. Vero cells and human cervical epithelial cell lines HeLa and ME-180 were cultured in DMEM supplemented with 10% FBS, 100 μg/ml penicillin, and 100 μg/ml streptomycin at 37°C in a 5% CO₂ incubator. Abs against C/EBP-β, p38, p-p38, and β-actin, respectively, were purchased from Santa Cruz Biotechnology. Ab against p-C/EBP-β was from Cell Signaling Technology. Ab against CXCL9 was from R&D Systems. Inhibitors specifically against ERK (PD98059), JNK (SP600125), and p38 (SB203580), respectively, were purchased from Merck. C/EBP-β and control small interfering RNA (siRNA) consist of pools of three to five target-specific 19- to 25-nt siRNAs purchased from Santa Cruz Biotechnology.

The approach for constructing CXCL9 promoter mutants (−495/+33)CXCL9, (−185/+33)CXCL9, and (−129/+33)CXCL9, and for site-directed mutagenesis of the NF-κB and C/EBP sites was described previously (28). Construct (−495/+33)CXCL9 in pGI3-Basic was used as a template to generate (−67/+33)CXCL9 using primers 5′-TTGTGAGCTCAGAAATGAATATCCTAAAT-3′ (forward) and 5′-TCGCAAGCTTAGAATGGAGTTCCAAGTCAC-3′ (reverse). The full open reading frame of C/EBP-β was purchased from ORIGENE, and amplified using primers 5′-TTGTGAATTCATGCAACGCCTGGTG-3′ (forward) and 5′-TGTTCTCGAGTGCCCCAGTGCCAAAG-3′ (reverse). The PCR products were subcloned into pcDNA3.1(+) between the EcoRI and XhoI sites.

Human cervical epithelial cells were cultured in 24-well plates to 90–95% subconfluent monolayer. Prior to HSV-2 infection, culture was replaced with fresh medium. One to five multiplicities of infection (MOI) of virus stocks were added to culture medium and incubated for 1 h in a 5% CO₂ incubator. Culture medium was changed, and cells were cultured for the indicated time before next assay. UV-inactivated virus was obtained by exposure of HSV-2 to UV irradiation for 15 min, as described previously (29). To separate virus particles from the cytokines secreted by Vero cells, virus stocks were added to 100-kDa centrifugal filter unit (Millipore) and centrifuged for 30 min at 1000 × g. Membrane-retained HSV-2 was diluted and used to infect ME-180 cells.

Total RNA was extracted using TRIzol (Invitrogen), according to the manufacturer’s protocol. RNase-free DNase (Promega) was used to eliminate the contamination of genomic DNA. cDNA was synthesized, as described previously (30). The newly synthesized cDNA was amplified by PCR. The primer pairs for CXCL9 were 5′-GGCATCATCTTGCTGGTTCT-3′ and 5′-TCACATCTGCTGAATCTGG-3′. β-actin was used as an internal control amplified with primers 5′-CTGGGGCGCCCCAGGCACCA-3′ and 5′-CTCCTTAATGTCACGCACGATTTC-3′.

Cervical mucus samples and culture supernatants of HSV-2–infected epithelial cells were assayed for CXCL9 expression with a commercial ELISA kit, according to the manufacturer's instructions (R&D Systems). For HSV-2–infected epithelial cells, cells were infected with HSV-2 (1–5 MOI) for the indicated time and supernatants were collected. The concentration of CXCL9 was determined using a standard curve obtained with rCXCL9 (R&D Systems).

Each promoter construct together with the pRL-TK plasmid were cotransfected into subconfluent (80–90%) monolayer cells using Lipofectamine 2000 (Invitrogen), according to the manufacturer’s instructions. Five hours posttransfection, cells were cultured alone or infected with HSV-2 (1–5 MOI) in fresh medium. Twenty-four hours postinfection, cells were lysed and luciferase activity was assayed using the Dual Luciferase Assay Kit (Promega), according to the manufacturer’s instructions. The relative luciferase activity was determined in a Modulus Microplate Luminometer (Turner Biosystems), and transfection efficiency was normalized by Renilla activity. Transfection of primary cervical epithelial cells was performed by using Amaxa Nucleofector Kit for primary epithelial cells, according to the manufacturer’s instructions (Amaxa).

Cells were lysed with lysis buffer (50 mM Tris [pH 7.2], 1% Triton X-100, 0.5% sodium deoxycholate, 0.1% SDS, 500 mM NaCl, 10 mM MgCl₂ with protease inhibitor) (Roche). Proteins were separated by SDS-PAGE and transferred onto nitrocellulose membranes. Nonspecific binding sites were blocked with 5% nonfat milk in TBST (120 mM Tris-HCl [pH 7.4], 150 mM NaCl, and 0.05% Tween 20) for 1 h at room temperature. Blots were incubated with Ab against C/EBP-β, p38, p-p38, β-actin (Santa Cruz), or p-C/EBP-β (Cell Signaling Technology) overnight at 4°C. Membranes were washed three times, incubated with HRP-conjugated secondary Ab, and visualized with Dura SuperSignal Substrate (Pierce).

Nuclear extracts from ME-180 cells were prepared, as described previously (31). Biotin end-labeled oligonucleotides were synthesized and annealed to obtain dsDNA fragments. The oligonucleotide sequences were as follows: 5′-GCTAAAGATACTAGCCAATCAGAGTTTAGG-3′ and 5′-CCTAAACTCTGATTGGCTAGTATCTTTAGC-3′. EMSA was performed using LightShift Chemiluminescent EMSA Kit (Pierce), according to the manufacturer's protocol. Briefly, DNA-binding reactions were performed in 20 μl samples containing 20 fmol biotin-labeled oligonucleotides, 4 mg nuclear extracts, 2 mg d(I-C), 2 μl 10× binding buffer, 0.1 mM EDTA, and 10% glycerol at room temperature for 20 min. For supershift assay, 2 μl polyclonal Ab against C/EBP-β (Santa Cruz Biotechnology) was also added. For competitor EMSA, 100-fold unlabeled oligonucleotides were added into the first incubation prior to the addition of labeled probe. The mixture was incubated for 20 min at room temperature. Samples were run on 6% nondenaturing polyacrylamide gels with 0.5× TBE buffer (25 mM Tris [pH 8.3], 190 mM glycine, 1 mM EDTA) and transferred onto a nylon membrane (Amersham Biosciences, Pharmacia) at 380 mA (∼100 V) for 30 min. A chemiluminescent detection method containing luminal/enhancer solution and stable peroxide solution was used, as described by the manufacturer. Membranes were scanned by Multimage Light Cabinet (Alpha Innotech).

Cells growing in T25 flasks alone or infected with HSV-2 were cross-linked using 1% formaldehyde at 37°C for 10 min. After washes with PBS, cells were resuspended in 300 μl lysis buffer (50 mM Tris [pH 8.1], 10 mM EDTA, 1% SDS) containing protease inhibitor. DNA was sheared to small fragments by sonication. Supernatants were precleared using herring sperm DNA/protein G-Sepharose slurry (Sigma-Aldrich). The recovered supernatants were incubated with either anti-C/EBP-β Ab (Santa Cruz) or an isotype control IgG for 2 h in the presence of herring sperm DNA and protein G-Sepharose beads. The immunoprecipitated DNA was retrieved from the beads with 1% SDS and 1.1 M NaHCO₃ solution at 65°C for 6 h. The extracted DNA was used for PCR with CXCL9 promoter-specific primers, as follows: 5′-CAAGTTTGTGGTCAATTTAG-3′ and 5′-CTTTAGAGAACACATTTTGG-3′.

Migration assay was performed using 24-well Transwell plates (Costar). A total of 600 μl supernatants from human cervical epithelial cells alone or infected with HSV-2 was added to the lower chamber. Activated PBLs (5 × 10⁵) or CD4⁺ T cells (5 × 10⁵) in 100 μl RPMI 1640 medium were placed in the upper chamber. Chambers were separated by a 3-μm pore-size polycarbonate membrane. The chambers were incubated for 2 h at 37°C in 5% CO₂ incubator, and the Transwell inserts were then removed. Cells migrated to lower chambers were collected and counted using disposable hemocytometers (KOVA), according to the manufacturer’s instructions. To investigate the role of CXCL9 in cell migration, 10 μg anti-CXCL9 neutralizing Ab (R&D Systems) per milliliter or isotype-matched control Ab was added 30 min prior to the onset of migration assay. To investigate the role of p38-C/EBP-β pathway in HSV-2–induced migration, ME-180 cells or primary human cervical epithelial cells were pretreated with p38 inhibitor SB202538 or transfected with C/EBP-β siRNA or control siRNA, and migration assay was then performed.

Data shown are presented as mean ± SD. The difference of mean value was analyzed by one-way ANOVA (least significant difference method), unless otherwise specified. A p value <0.05 was considered statistically significant. All analyses were performed with SPSS software (version 11.0).

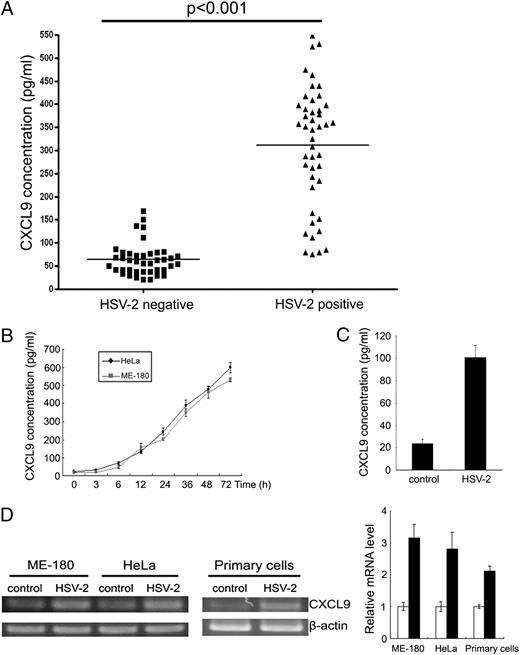

CXCL9 is a chemokine that recruits activated T cells to infection area. Recently, it has been reported that the expression of CXCL9 was enhanced in HSV-2–infected mice (22), although the underlying mechanism remains to be addressed. CXCL9 levels in cervical mucus from HSV-2–negative (n = 41) and HSV-2–positive (n = 45) women were determined by ELISA. We observed that CXCL9 levels in cervical mucus from HSV-2–positive women were significantly higher than those from HSV-2–negative women (Fig. 1A), suggesting that CXCL9 may play an important role during HSV-2 infection.

The primary targets for HSV-2 are epithelial cells. To investigate whether HSV-2 infection can promote CXCL9 expression in human cervical epithelial cells, HeLa and ME-180 cells were infected with HSV-2. The protein level of CXCL9 in supernatants collected at different time points postinfection was measured. The level of CXCL9 protein significantly increased in cells infected with HSV-2, and its expression was elevated as the time of infection increased (Fig. 1B). Because HSV-2 significantly induced CXCL9 expression at 24 h postinfection and there were barely dead cells at this time point, subsequent experiments were performed at 24 h postinfection. We next investigated the mRNA level of CXCL9 after HSV-2 infection. Semiquantitative RT-PCR assay demonstrated that HSV-2 infection also enhanced the level of CXCL9 mRNA in infected cells (Fig. 1D).

To further confirm the effect of HSV-2 on the induction of CXCL9, primary epithelial cells were isolated from human cervical tissues and infected with HSV-2, and the mRNA and protein levels of CXCL9 were examined. In agreement with the results from human cervical epithelial cell lines, HSV-2 infection significantly induced CXCL9 expression in primary human cervical epithelial cells at both mRNA and protein levels (Fig. 1C, 1D).

To determine whether HSV-2–induced CXCL9 expression is mediated through transactivation of CXCL9 promoter, a reporter plasmid containing the sequence from −495 to +33 (relative to the transcriptional start site) of 5′-flanking region of human CXCL9 gene was transfected into ME-180 or HeLa cells prior to HSV-2 infection. CXCL9 promoter activity was significantly enhanced after HSV-2 infection (Fig. 2A, 2B). Furthermore, the level of luciferase activity correlated with the concentration of HSV-2 used for infection, indicating that the activation of CXCL9 promoter by HSV-2 infection is concentration dependent.

To exclude the possibility that CXCL9 induction was due to transactivation of CXCL9 promoter caused by cytokines from HSV-2–infected Vero cells, HSV-2 stocks were filtered using 100-kDa centrifugal filter unit. ME-180 cells were transfected with (−495/+33)CXCL9 and then infected with the retained HSV-2 on membrane. Membrane-retained HSV-2 significantly promoted CXCL9 expression, whereas virus-free supernatants had no effect (Fig. 2C). Furthermore, HSV-2 or UV-inactivated HSV-2 was used to infect cells transfected with (−495/+33)CXCL9, showing that UV-inactivated virus had little effect on transactivation of CXCL9 promoter (Fig. 2D). These data together indicate that productive HSV-2 infection directly induces CXCL9 expression by transactivation of CXCL9 promoter in human cervical epithelial cells.

Bioinformatic analysis indicated the presence of several consensus cis elements, including NF-κB, AP-1, IFN-stimulated response element (ISRE), and C/EBP binding sites in the CXCL9 promoter (Fig. 2E). Because findings in the current study demonstrated a transcriptional activation of CXCL9 promoter by HSV-2, we therefore investigated the roles of these cis elements in the regulation of HSV-2–induced CXCL9 gene transcription. The reporter constructs containing serial 5′ deletions of CXCL9 promoter were transfected into ME-180 cells. Five hours posttransfection, cells were cultured alone or infected with HSV-2. Deletion from nt −495 to −129 did not affect HSV-2–induced luciferase activity. Further deletion to nt −67 completely eliminated HSV-2–induced luciferase activity (Fig. 2F). These data indicate that the sequence between nt −129 and −67 is essential for the activation of CXCL9 promoter by HSV-2.

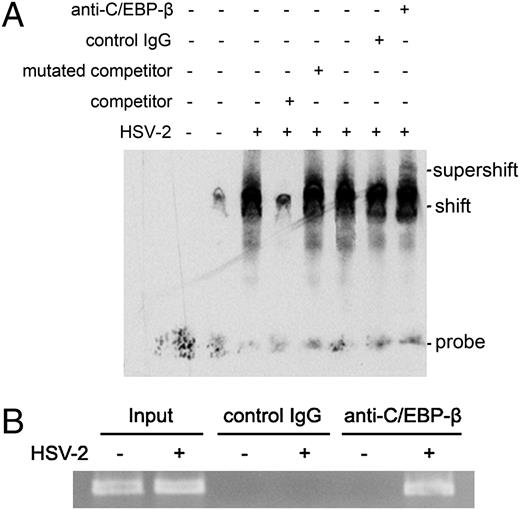

Analysis of CXCL9 promoter revealed that there is a potential C/EBP binding site within nt −129 to nt −67 (Fig. 2E). To investigate the role of C/EBP binding site on CXCL9 activation, plasmids with mutation of the C/EBP binding or two neighboring NF-κB binding sites were constructed. Mutation of the two NF-κB binding sites did not affect HSV-2–induced promoter activity, whereas mutation of C/EBP binding site significantly abolished HSV-2–induced CXCL9 activation (Fig. 2G). These results suggest that C/EBP binding site is essential for the HSV-2–induced activation of CXCL9 promoter.

Six members of C/EBPs, including C/EBP-α, C/EBP-β, C/EBP-γ, C/EBP-δ, C/EBP-ε, and C/EBP-ζ, have been characterized, whereas C/EBP-β is an important transcriptional activator in the regulation of genes involved in immune and inflammatory responses (32). To determine whether C/EBP-β binds to CXCL9 promoter after HSV-2 infection, EMSA was performed using biotin-labeled C/EBP-β consensus oligonucleotides in CXCL9 promoter (−99 to −70) as probes. ME-180 cells were cultured alone or infected with HSV-2, and the nuclear extracts were incubated with biotin-labeled probes at room temperature. The binding activity of C/EBP-β significantly increased in cells infected with HSV-2, compared with uninfected cells (Fig. 3A). To determine the specificity of C/EBP-β–binding activity, nuclear extracts were incubated with the labeled C/EBP-β consensus oligonucleotides in the presence of either an unlabeled wild-type C/EBP-β–binding probe or a mutated probe. Wild-type C/EBP-β consensus oligonucleotides rather than the mutated oligonucleotides significantly abrogated C/EBP-β complexes (Fig. 3A). We confirmed the authenticity of C/EBP-β band using supershift assay by incubation of nuclear extracts with Ab against C/EBP-β, showing that incubation of the nuclear extracts with anti-C/EBP-β Ab supershifted the specific retardation signal (Fig. 3A).

Chromatin immunoprecipitation assay was also performed to determine whether C/EBP-β binds to CXCL9 promoter in vivo. Chromatin fragments were prepared from ME-180 cells infected with HSV-2 and immunoprecipitated with Ab against C/EBP-β. A 110-bp DNA fragment containing the C/EBP-β binding site in CXCL9 promoter was amplified by PCR using specific primers. Results showed that PCR products were only produced from DNA isolated from cells infected with HSV-2 in the presence of anti–C/EBP-β Ab, but not detectable in the presence of control Ab or in uninfected cells (Fig. 3B). These data demonstrate that C/EBP-β binds to the predicted C/EBP binding site in CXCL9 promoter.

To confirm the essential roles of C/EBP-β in HSV-2–induced CXCL9 expression, specific siRNA was used to knock down the expression of C/EBP-β. ME-180 cells were cotransfected with (−495/+33)CXCL9 and C/EBP-β siRNA or control siRNA. Twenty-four hours posttransfection, cells were cultured alone or infected with HSV-2 and subsequently assayed for luciferase activity. The transcriptional activation of CXCL9 promoter induced by HSV-2 was significantly reduced by knockdown of C/EBP-β (Fig. 4A). The impact of C/EBP-β on HSV-2–induced CXCL9 expression was further confirmed by ELISA, showing that C/EBP-β knockdown significantly decreased the protein level of CXCL9 in HSV-2–infected cells (Fig. 4B).

We further determined the effect of C/EBP-β on the transcriptional activation of CXCL9. ME-180 cells were cotransfected with plasmid expressing C/EBP-β and reporter plasmid (−495/+33)CXCL9. The transcriptional activity of CXCL9 was significantly higher in cells transfected with C/EBP-β–expressing constructs compared with that of the control cells (Fig. 4C). The protein level of CXCL9 was also measured in ME-180 cells transfected with plasmids expressing C/EBP-β. Overexpression of C/EBP-β significantly upregulated the expression of CXCL9 protein as assessed by ELISA (Fig. 4D). These results together indicate that C/EBP-β is crucial for HSV-2–induced CXCL9 expression.

To investigate the effect of HSV-2 on C/EBP-β expression, ME-180 cells were cultured alone or infected with HSV-2, and the phosphorylated C/EBP-β and total C/EBP-β protein were analyzed, respectively. HSV-2 had no effect on the level of total C/EBP-β protein, but significantly increased the phosphorylation of C/EBP-β protein on Thr²³⁵ (Fig. 4E). We next analyzed the cellular location of C/EBP-β after HSV-2 infection, showing that C/EBP-β persisted in the cytoplasm and nucleus in uninfected cells. After HSV-2 infection, C/EBP-β completely translocated from cytoplasm to nucleus (Fig. 4F). These data indicate that HSV-2 infection induces phosphorylation and nuclear translocation of C/EBP-β.

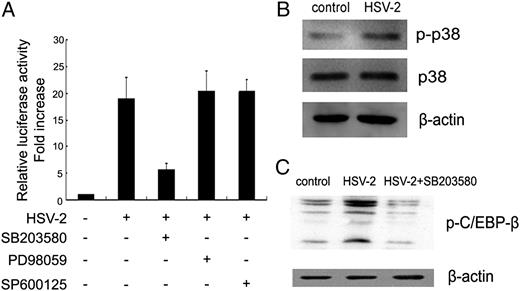

It is known that HSV-2 can regulate the expression of downstream genes by activating MAPK pathways (33); however, the underlying mechanisms remain elusive. To investigate whether MAPK pathway was involved in transcriptional activation of CXCL9 promoter by HSV-2, ME-180 cells were transfected with (−495/+33)CXCL9 reporter plasmid; pretreated with PD98059 (ERK inhibitor), SP600125 (JNK inhibitor), or SB203580 (p38 inhibitor); and then infected with HSV-2. Luciferase reporter assay showed that pretreatment of cells with SB203580, but not with PD98059 or SP600125, significantly decreased HSV-2–induced CXCL9 promoter activity (Fig. 5A).

We then determined the impact of HSV-2 infection on p38 MAPK pathway activation. ME-180 cells were infected with HSV-2, and the phosphorylation level and total protein level of p38 were examined by Western blot. HSV-2 infection increased the phosphorylation level of p38, but did not affect the total protein level of p38 (Fig. 5B). We also found that inhibition of p38 activation significantly decreased the phosphorylation of C/EBP-β by Western blot (Fig. 5C). Taken together, these results suggest that HSV-2–induced CXCL9 expression in human cervical epithelial cells is mediated through the activation of p38 MAPK pathway.

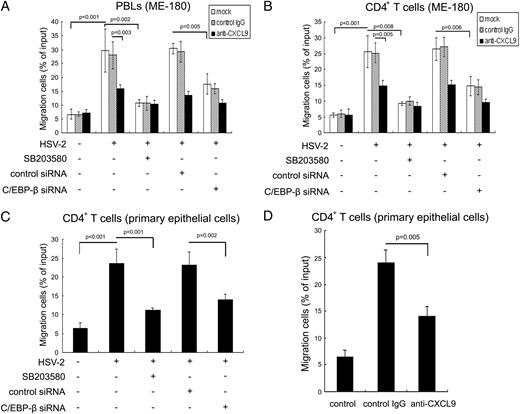

To assess the functionality of HSV-2–induced CXCL9 protein, chemotaxis assay was performed using activated PBLs or CD4⁺ T cells. ME-180 cells were infected with HSV-2, and the chemotactic activity of supernatants was determined. Within the 2-h time frame of the experiment, minimal migration of PBLs or CD4⁺ T cells was observed in response to supernatants from uninfected cells. In response to supernatants from HSV-2–infected cells, the migratory activity of PBLs and CD4⁺ T cells was significantly increased (Fig. 6A, 6B). Cell migration was significantly decreased upon the addition of anti-CXCL9 neutralizing Ab to supernatants from HSV-2–infected cells, whereas a control Ab did not have such effect (Fig. 6A, 6B), indicating the specificity of CXCL9-induced CD4⁺ T cell migration. The impact of C/EBP-β knockdown and p38 MAPK pathway inactivation on migration of PBLs and CD4⁺ T cells was also examined. ME-180 cells were transfected with control siRNA or C/EBP-β siRNA, or treated with SB203580 before HSV-2 infection, and chemotactic activity was then determined. Knockdown of C/EBP-β or inhibition of p38 MAPK pathway significantly decreased the migration of PBLs and CD4⁺ T cells (Fig. 6A, 6B).

The role of CXCL9 secreted by primary cervical epithelial cells in CD4⁺ T cell recruitment was also determined by chemotaxis assay. Primary cervical epithelial cells were infected with HSV-2, and the chemotactic activity of supernatants was determined using primary CD4⁺ T cells. In response to supernatants from HSV-2–infected primary epithelial cells, the migration activity of CD4⁺ T cells significantly increased, whereas C/EBP-β siRNA but not control siRNA transfection decreased the migration activity of CD4⁺ T cells. Furthermore, treatment with SB203580 after HSV-2 infection also significantly decreased the chemotactic activity of supernatants (Fig. 6C). Consistent with the results from HSV-2–infected ME-180 cells, pretreatment with CXCL9 neutralization Ab significantly decreased the chemotactic activity of supernatants form HSV-2–infected primary cervical epithelial cells (Fig. 6D). Although we cannot rule out the possibility that other chemokines might also be induced, the incomplete neutralization of migration activity was most likely due to the lack of an optimal CXCL9 neutralizing Ab. Nevertheless, our findings indicate that p38-C/EBP-β pathway is involved in HSV-2–induced CXCL9-mediated migration of PBLs and CD4⁺ T cells (Fig. 7).

HSV-2 infection is associated with an increased risk of HIV-1 acquisition. The infectious HSV-2 ulceration is considered to be one of the major reasons that increase HIV-1 acquisition. Antiviral drugs, such as acyclovir, have been shown to reduce the frequency of both clinical and subclinical ulcerations (34, 35). However, in clinical trials, suppressive therapy with acyclovir does not decrease the rates of HIV-1 acquisition (36, 37). Furthermore, acyclovir appears to have a smaller effect on the frequency of genital ulcer disease as well as a smaller effect on the frequency and quantity of lesional HSV DNA in African women and Peruvian men (38), compared with its effects in men in the United States. The observed regional variation in the clinical and virologic efficacy of acyclovir brings into question the lack of impact on HIV-1 acquisition and may reflect a lower efficacy or lack of adherence in the HIV-1 prevention trial. Moreover, the observation that recruited CD4⁺ T cells persist at sites of HSV-2 reactivation for months after healing, even with daily antiviral therapy, has been proposed as an alternative explanation of the inability of anti–HSV-2 therapy to reduce HIV-1 acquisition (13). In the current study, based on our observation that CXCL9 is significantly elevated in HSV-2–positive women, we conducted experiments using both primary human cervical epithelial cells and cell lines. We have demonstrated that HSV-2 directly induces CXCL9 expression in human cervical epithelial cells and that HSV-2–induced transcription of CXCL9 is mediated by activation of p38-C/EBP-β pathway. We have further revealed that CXCL9 induced by HSV-2 can recruit CD4⁺ T cells.

CXCL9 was found to be inducible and critical for control of genital HSV-2 infection in mice (22). However, whether HSV-2 can induce the expression of CXCL9 in human cells and the molecular mechanisms underlying the induction of CXCL9 after HSV-2 infection has not been previously characterized. In the current study, using human cervical epithelial cells as a model, we found that HSV-2 activated the CXCL9 promoter and induced its expression in a dose-dependent manner, indicating that HSV-2 is capable of directly inducing CXCL9 expression in infected human cervical epithelial cells. Such a HSV-2–induced CXCL9 expression was confirmed at both mRNA and protein levels. Furthermore, we found that UV-inactivated HSV-2 was unable to induce CXCL9 expression, suggesting that the induction of CXCL9 requires productive HSV-2 infection. To this end, our data indicate that the actual viral component responsible for the induction of CXCL9 is highly likely to be RS1 (Supplemental Fig. 1). RS1 is a major transcriptional activator and essential for progression beyond the immediate-early phase of infection. Given the complexity of HSV-2 genome containing >70 genes, we cannot completely rule out the involvement of other HSV-2 components that may positively or negatively regulate CXCL9 expression. Future investigations will determine whether additional viral components are involved. Of interest, we did not observe CXCL9 induction by HPV-16, which infects human cervical epithelial cells, nor by the Japanese encephalitis virus, which can infect multiple cell subsets, including epithelial cells (Supplemental Fig. 2), suggesting that the induction of CXCL9 by HSV-2 in cervical epithelial cells may be specific.

Transcriptional activation of CXCL9 is ultimately dependent on the activation of the cis elements in its promoter. IFN-γ–induced expression of CXCL9 in macrophages was reported to be mediated by the transcriptional factor, STAT1α, which binds to the ISRE site in the CXCL9 promoter (39), whereas several viral proteins were found to induce CXCL9 (monokine induced by IFN-γ) expression in vitro through binding to the NF-κB site (28, 40). By constructing and analyzing a series of deletion mutants of the CXCL9 promoter, we demonstrate that the promoter region between −129 and −67 bp is critical for transcriptional activation of CXCL9 by HSV-2. Bioinformatic analysis of CXCL9 promoter predicted a C/EBP binding site, and this was confirmed by site-directed mutagenesis, showing that the C/EBP binding site in CXCL9 promoter is responsible for the transcriptional activation of the CXCL9 gene by HSV-2.

Many genes encoding cytokines and chemokines have C/EBP binding sites within their promoters, and transcriptional factor C/EBP-β has been shown to affect the expression of IL-6, IL-12, CCL5, and CCL4 through the C/EBP binding sites on the target gene promoters (41). To determine whether C/EBP-β is indeed involved in HSV-2–induced CXCL9 expression, we used siRNA to knock down the expression of C/EBP-β in human cervical epithelial cells prior to HSV-2 infection. Our results revealed a direct correlation between the levels of C/EBP-β and CXCL9. Moreover, overexpression of C/EBP-β was also found to stimulate CXCL9 expression. These data indicate that C/EBP-β is a critical mediator of HSV-2–induced CXCL9 expression.

C/EBP-β has been proven to be important for the development, differentiation, and proliferation of mammary epithelial cells (42, 43). Upon stimulation, C/EBP-β can regulate the expression of target genes by increasing their protein levels (44, 45). In addition, phosphorylation of C/EBP-β protein on Thr²³⁵ increases the binding of coactivator p300 and CBP to C/EBP-β, which can regulate its transcriptional activity (46, 47). We found that HSV-2 infection did not increase the protein level of C/EBP-β, but rather enhanced the phosphorylation of C/EBP-β on Thr²³⁵ and induced the translocation of C/EBP-β to nucleus. We further demonstrated that HSV-2 infection increased the binding of C/EBP-β to the C/EBP binding site in the proximal promoter region of CXCL9. Taken together, our data indicate that HSV-2 activates C/EBP-β by phosphorylation of C/EBP-β on Thr²³⁵, promoting the binding of C/EBP-β to the CXCL9 promoter and activating CXCL9 expression.

It has been previously demonstrated that MAPKs phosphorylate C/EBP-β protein on Thr²³⁵ and regulate its transcriptional activity (48). MAPKs are proline-directed serine/threonine-specific protein kinases that regulate cellular activities, such as gene expression, mitosis, differentiation, and cell survival/apoptosis. In mammalian cells, three principal MAPK pathways have been identified, including ERK, JNK, and p38 (49). We used specific inhibitors to block the activation of MAPK pathways prior to HSV-2 infection and revealed that inhibition of p38 pathway significantly decreased the promoter activity of CXCL9 induced by HSV-2, indicating that p38 activation is required for HSV-2–induced CXCL9 expression.

CXCL9 attracts leukocytes to sites of infection and inflammation, and shares the receptor CXCR3 with CXCL10 (50). It was reported that elevated expression levels of CXCL9 and CXCL10 were found in mice after HSV-2 infection, and the levels were associated with the mobilization of HSV-2–specific CTL and NK cells (22). We observed that CXCL9 level was significantly higher in the mucus from HSV-2–positive women than that from HSV-2–negative women. We further demonstrated that the chemotactic activity was substantially increased in supernatants harvested from both primary human cervical epithelial cells and cell lines infected with HSV-2, and blockade of CXCL9 by a neutralizing Ab significantly decreased the migration of activated PBLs and CD4⁺ T cells. Our data imply that CXCL9 expression induced by HSV-2 may play an important role in the recruitment of CD4⁺ T cells to the infection area after HSV-2 infection.

C/EBP-β is known to be an important mediator in CCL3, CCL4, and CCL2 expression and leukocyte recruitment induced by IL-1β (51, 52), whereas p38 MAPK pathway plays a critical role in endothelial chemokine production and leukocyte recruitment upon stimulation (53, 54). In the current study, we showed that p38-C/EBP-β pathway was critical for HSV-2–induced CXCL9 expression. By using specific siRNA or inhibitors to block the activation of p38-C/EBP-β pathway, we further demonstrated that knockdown of C/EBP-β or inhibition of p38 MAPK pathway significantly decreased HSV-2–induced CD4⁺ T cell migration. Taken together, it is reasonable to conclude that HSV-2–induced CXCL9 is capable of regulating the migration of CD4⁺ T cells, and that p38-C/EBP-β pathway is critical for CXCL9-mediated chemotaxis.

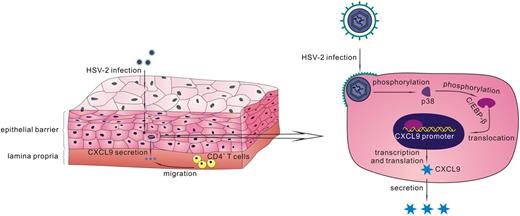

In conclusion, based on our finding that CXCL9 is augmented in the cervical mucus of HSV-2–positive women, we demonstrate that HSV-2 can directly induce CXCL9 expression in human cervical epithelial cells, and that binding of C/EBP-β to CXCL9 promoter is important for HSV-2–mediated transcriptional activation of CXCL9. Our results also reveal that p38-C/EBP-β pathway activated by HSV-2 is critical for CXCL9 induction and the recruitment of CD4⁺ T cells. We propose a model as described in Fig. 7. HSV-2 infection activates p38 MAPK pathway and phosphorylates C/EBP-β at Thr²³⁵ site. C/EBP-β then translocates to the nucleus and binds to CXCL9 promoter, resulting in transcriptional activation of CXCL9. Secreted CXCL9 protein in turn recruits CD4⁺ T cells to HSV-2–infected mucosal sites. When HIV-1 reaches mucosal tissues disrupted by HSV-2 infection, the recruited CD4⁺ T cells may be targeted by HIV-1. Although other mechanisms also likely exist, findings in our study provide one molecular explanation for HSV-2–induced CXCL9 expression, which may recruit CD4⁺ T cells to the infection area and potentially increase the risk of HIV-1 sexual transmission.

We would like to thank all the participants involved in this study.

The authors have no financial conflicts of interest.
