Estrogen Signaling Contributes to Sex Differences in Macrophage Polarization during Asthma Free

Asthma is a chronic inflammatory constricting of the airways that causes wheezing, coughing, and shortness of breath. More than 300 million people worldwide are reported to suffer from asthma (1). Asthma is a heterogeneous disorder consisting of allergic, corticosteroid-sensitive, Th2-driven, and corticosteroid-resistant Th17-driven neutrophilic endotypes. The incidence and severity of asthma exhibit sex differences, affecting mostly boys in childhood and women in adulthood (2–4). Several lines of clinical and experimental evidence suggest that sex hormones, specifically estrogen, play a role in asthma development and progression (5–7). Fluctuations in circulating estrogen reflect changes in severity and incidence of asthma. Approximately 50% of women hospitalized for asthma-related symptoms are reported to be premenstrual, and 33–52% of asthmatic women report premenstrual worsening of symptoms (8–12). Spikes in menstrual hormones correlate with impaired lung function, indicated by a decline in forced expiratory volume in 1 s, largely during the late follicular phase in which circulating estrogen levels peak (13, 14). In mouse models of allergic lung inflammation, female mice have been shown to exhibit worsened eosinophilic inflammation, increased B and T cell infiltration, increased Th2 cytokines in the lung, and more serum IgE compared with male mice following allergen challenge (15, 16).

Alveolar macrophages have emerged as major cellular mediators of allergic lung inflammation and tissue remodeling. The bronchoalveolar lavage (BAL) fluid and airway walls from asthmatic patients have more M2-polarized macrophages, and this correlates with impaired lung function (17, 18). In mice, the intratracheal instillation of M2-polarized alveolar macrophages prior to OVA challenge results in enhanced eosinophilia in the BAL and effector T cells in the interstitium (19). Likewise, the intratracheal instillation of alveolar macrophages from OVA-sensitized mice results in enhanced eosinophilic and T cell infiltration into the lungs following OVA challenge compared with mice receiving macrophages from naive animals (20). The depletion of alveolar macrophages prior to allergen challenge results in a dramatic reduction of the classical features of allergic inflammation, including eosinophil influx into the BAL and Th2 cytokine production as well as tissue remodeling and fibrosis (21). Because the incidence and severity of asthma exhibit sex and sex hormone–mediated differences in humans and mice and M2-polarized alveolar macrophages confer disease severity, we reasoned that there may be underlying sex differences in M2 polarization in the allergic lung. Thus, we hypothesized that enhanced M2 polarization of alveolar macrophages contributes to the sex differences in allergic lung inflammation described in asthma. We also sought to explain the molecular basis for sex differences in M2 polarization in vivo and in vitro.

OVA and Avertin used for mouse experiments were obtained from Sigma-Aldrich (St. Louis, MO). LIVE/DEAD Zombie UV and LIVE/DEAD yellow stains and Abs specific for mouse CD11c-PECy7 (clone N418), CD45-allophycocyanin (clone 30F11), CD11b-allophycocyanin Cy7 (clone M1/70), Ly6C-PerCP Cy5.5 (clone HK1.4), Ly6G-allophycocyanin Cy7 (clone 1A8), CD16/CD32, and anti-mouse PerCP Cy5.5 were obtained from BioLegend (San Diego, CA). SIGLEC F-BV421 (clone E50-2440) and Arg1 (clone 19) Abs and Fix/Perm and Perm buffers were obtained from BD Biosciences (San Jose, CA), and anti-rabbit PE Abs were obtained from BioLegend and R&D Systems (Minneapolis, MN). A polyclonal Ab against mouse YM1 was obtained from Stemcell Technologies (Vancouver, BC, Canada), and mouse inducible NO synthase (iNOS) and FIZZ1 from Abcam (Cambridge, MA). Abs against mouse estrogen receptor (ER)α (MC-20) and β-actin as well as recombinant ERα were obtained from Santa Cruz Biotechnologies (Santa Cruz, CA). Pierce bicinchoninic acid protein assay reagents, SuperScript III First Strand Synthesis System, and 2× SYBR Green PCR master mix were obtained from Thermo Scientific (Rockford, IL). Criterion TGX 10 and 4–20% polyacrylamide gels, anti-rabbit HRP, anti-mouse HRP, and polyvinylidene difluoride membrane were obtained from Bio-Rad (Hercules, CA). Primers for quantitative PCR (qPCR) were obtained from IDT (Coralville, IA). Amersham ECL reagent was obtained from GE Healthcare (Piscataway, NJ). RNeasy kit was obtained from Qiagen (Valencia, CA). Imject alum adjuvant was obtained from Thermo Fisher (Grand Island, NY).

C57BL/6 and LysM-CRE mice were obtained from Jackson Laboratories. ERα^flox/flox mice were generously provided by J.-Å. Gustafsson (Karolinska Institutet, Stockholm, Sweden) (22). All study protocols using mice were in compliance with and approved by the Johns Hopkins University Animal Care and Use Committee. For OVA-induced allergic lung inflammation studies, the protocol of Wang et al. (23) was followed. Briefly, male and female adult 8-wk-old mice were i.p. injected with 100 μg OVA in Imject alum (Thermo Scientific) on days 1 and 6. On days 12 and 14, the mice were nebulized with 1% OVA in PBS for 40 min. On day 16, the mice were anesthetized with 2.5% Avertin, and BAL was collected by lavage for further analysis. For qPCR analysis, alveolar macrophages were isolated by 2-h adhesion in culture, and eosinophils and lymphocytes were removed by washing with cold PBS. Ovariectomized C57BL/6 mice were purchased from Charles River Laboratories. The bilateral ovariectomy surgeries were carried out at 3 wk of age. Estrogen and placebo pellets (Innovative Research of America, Sarasota, FL) were implanted on day 7 of the OVA protocol and contain 0.5 mg E2 or placebo. This was done after sensitization to avoid interfering with T cell priming. Serum estrogen was measured by the University of Virginia Center for Research in Reproduction Ligand Assay and Analysis Core.

Bone marrow cells from 5- to 6-wk-old male and female C57BL/6 mice were lavaged from femurs and tibias and collected into αMEM obtained from Lonza (Basel, Switzerland) supplemented with 10% FBS, 4 mM l-glutamate, 100 U/ml penicillin, and 100 mg/ml streptomycin. After an overnight culture at 37°C, 5% CO₂, the nonadherent cells were collected and treated with ammonium-chloride-potassium buffer for RBC lysis. The cells were then cultured in αMEM containing 40 ng/ml mouse rM-CSF for 10 d prior to experimentation. M-CSF was replaced in the medium every 2 d. For IL-4–responsiveness experiments, the cells were treated with IL-4 at the indicated concentrations for 48 h prior to collection. For ERα agonist studies, cells were placed in serum-free and phenol red–free αMEM 24 h prior to IL-4 stimulation. Pretreatment with 4,4′,4′′-(4-propyl-[1H]-pyrazole-1,3,5-triyl) trisphenol (PPT) occurred 16 h prior to IL-4 stimulation (1 ng/ml for 48 h).

LIVE/DEAD staining was carried out on BAL suspensions for 30 min at room temperature in the dark. The cells were stained for CD11c, CD45, and SIGLEC F for 30 min on ice in the dark. The cells were then fixed and permeabilized overnight at 4°C. Intracellular staining for YM1 and iNOS was carried out with anti-CD16/CD32 mouse block for 40 min at room temperature, followed by anti-mouse and anti-rabbit secondary Ab staining for 20 min at room temperature. Stained cells were then analyzed with a LSR II (BD Biosciences), courtesy of the Ross Flow Cytometry Core Facility. Alternatively, samples were analyzed using a CytoFLEX (Beckman Coulter, Brea, CA), courtesy of the Anesthesiology and Critical Care Medicine Flow Cytometry Core. Analysis was carried out on FlowJo single-cell analysis software (Ashland, OR) or CytExpert software (Beckman Coulter). Alveolar macrophages were defined as LIVE/DEAD⁻CD45⁺CD11c⁺SIGLEC F⁺CD11b⁻Ly6C⁻Ly6G⁻ cells, and eosinophils were defined as LIVE/DEAD⁻CD45⁺CD11c⁻SIGLEC F⁺ cells in the BAL.

Lungs were inflated under constant pressure with 10% formalin, as previously described (24). Inflated lungs were fixed for 24 h and then resuspended in 70% ethanol. Lungs were paraffin embedded, sectioned, and stained with periodic acid–Schiff (PAS) and H&E by the Molecular and Comparative Pathobiology Histology Laboratory at the Johns Hopkins University School of Medicine. PAS staining analysis was carried out blindly. First, the samples were number coded. Then five alveoli from each sample were randomly chosen for analysis. PAS⁺ cells were counted and normalized to the pixel circumference of each selected alveolus. The data were then represented as PAS⁺ cells/1000 pixels.

Cells were lysed in lysis buffer containing 1% Nonidet P-40, 50 mM HEPES (pH 8), 5 mM EDTA, 10 mM sodium pyrophosphate, 50 mM NaF, 0.25% sodium deoxycholate, 1 mM PMSF, 10 mM benzamidine, 1 μg/ml pepstatin, 10 μg/ml leupeptin, 20 mM iodoacetimide, and 100 μg/ml soybean trypsin inhibitor. The lysates were centrifuged at 14,000 rpm for 15 min at 4°C. Radioimmunoprecipitation assay buffer (50 mM Tris, 150 mM NaCl, 1 mM EDTA, 1% Triton X-100, 1% Nonidet P-40, and 0.1% SDS) was used for the detection of sex hormone receptors. The protein concentration of the supernatants was then measured using the Pierce bicinchoninic acid protein assay reagents, and 25 μg protein was loaded in each well of either 10 or 4–20% Criterion TGX polyacrylamide gels (Bio-Rad). The gels were transferred onto a 0.2-mm polyvinylidene difluoride membrane that was then probed with Abs against YM1, ARG1, FIZZ1, and β-actin. Secondary Abs conjugated to HRP were used to detect target proteins, which were visualized with ECL reagent and autoradiograph film. Lightly exposed x-ray films were used for densitometric analysis. Films were scanned, and band intensities were measured using ImageJ software (National Institutes of Health). Target proteins were normalized to β-actin internal control. To assess fold changes in signal, the target protein/β-actin values were then normalized to the control group within each experiment.

Chromatin immunoprecipitation (ChIP) analysis was carried out on 2 × 15-cm bone marrow–derived macrophage (BMM) dishes per group using the ChIP-IT kit obtained from Active Motif (Carlsberg, CA), per manufacturer’s protocol. Primer sequences for qPCR analysis of immunoprecipitated chromatin were previously published (25).

RNA was collected in RLT or TRIzol buffer and processed using RNeasy mini kit (Qiagen). qPCR was performed using the indicated primers and the 7500 fast real-time PCR instrument from Applied Biosystems (Grand Island, NY). Primer sequences for M2 genes have been previously published (26).

Blood was collected from allergen-challenged male and female mice by cardiac puncture. Serum was obtained by centrifugation. Total IgE was measured using the OptEIA kit from BD Biosciences.

All graphs and statistical analyses were generated using Prism GraphPad software (La Jolla, CA). Unless otherwise indicated, each experiment was carried out at least three independent times. Mouse experiments contain four mice per group and were repeated at least twice. Statistical significance was measured using a parametric Student t test, and a p value <0.05 was considered significant.

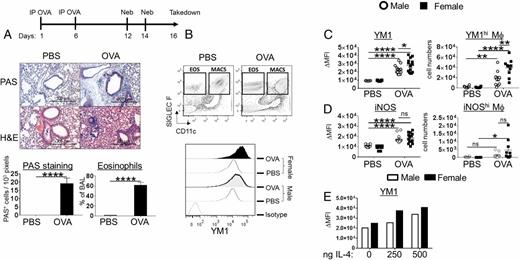

Asthma afflicts women more than men. Mouse models reflect this sex difference. Female animals have more eosinophils and M2 macrophages in their lungs and BAL fluid, higher serum IgE, greater Th2 cytokine production and T cell numbers, and impaired lung function compared with males following allergen challenge (15, 16, 19, 27). Earlier reports of sex differences in M2 responses in allergic mice were based on immunohistochemistry staining for YM1 as an M2 marker and IFN regulatory factor 5 as an M1 marker in lung sections, which is not a quantitative technique (27). Therefore, although it is clear that female mice contain more YM1-expressing cells, it is not known whether YM1 expression is higher in M2-polarized macrophages from female mice compared with those from male mice. To assess quantitative and qualitative sex differences in M2 polarization during allergic lung inflammation, we used FACS analysis on whole lung and BAL from allergic and healthy mice. We conducted these studies in C57BL/6 mice, knowing that we would employ macrophage-specific ERα^flox/flox animals on the B6 background as a part of these studies. Male and female C57BL/6 mice were sensitized to OVA twice 5 d apart and then aerosol challenged with OVA twice 2 d apart (28). We chose to use this acute OVA model to measure sex differences in macrophage polarization as alveolar macrophages are critical initiators of allergic lung inflammation (21). Despite reports that suggest C57BL/6 mice are resistant to Th2 inflammation, mice sensitized and challenged by this protocol show enhanced inflammation by H&E staining, increased mucus production by PAS staining, Th2 cytokines, serum IgE, and eosinophil influx into the airways (Fig. 1A, Supplemental Fig. 1). To measure sex differences after OVA challenge, alveolar macrophages were collected by lung lavage at 48 h, and the M2 marker, YM1, was measured by FACS. Alveolar macrophages were identified in the BAL based on their coexpression of CD11c, SIGLEC F, and CD45 as well as the lack of CD11b, Ly6C, and Ly6G (Fig. 1B). YM1 is a canonical M2 marker in mice that has been shown to promote Th2 responses and eosinophil inflammation (29). OVA challenge induced robust M2 responses in the OVA-sensitized mice compared with PBS controls (Fig. 1C). Alveolar macrophages from female mice expressed significantly higher YM1 following OVA challenge compared with male macrophages, as indicated by a shift in mean fluorescence intensity (Fig. 1B, 1C). Furthermore, the BAL from female mice contained significantly more YM1^hi macrophages compared with male mice, whereas the number of iNOS^hi macrophages did not exhibit a sex difference (Fig. 1D). No induction of YM1 was observed in interstitial macrophages (data not shown). This sex difference was also observed when male and female mice were intratracheally instilled with IL-4 in a dose-dependent manner (Fig. 1E, Supplemental Fig. 2).

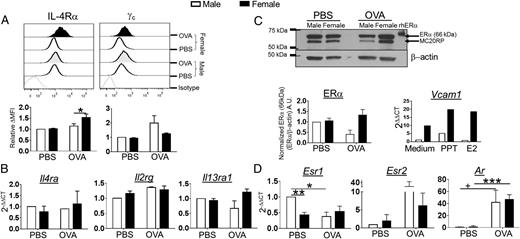

We wanted to understand the molecular basis of this sex difference in male and female alveolar macrophages. Because IL-4 and IL-13 can polarize macrophages to an M2 phenotype, we hypothesized that differences in expression of IL-4Rs on the surface of alveolar macrophages might explain the observed enhanced M2 polarization in female mice following OVA challenge. Therefore, we quantified the amount of IL-4Rα, γ_c, and IL-13Rs by FACS and qPCR in control and allergen-sensitized and -challenged male and female mice. Alveolar macrophages from female mice exhibited a statistically significant increase in surface IL-4Rα expression following OVA challenge, whereas male alveolar macrophages did not (Fig. 2A). Although this is a small shift in mean fluorescence intensity for IL-4Rα, our previous studies and those of others have shown that the ratio of IL-4R chains has profound impacts on IL-4 signaling and downstream M2 gene expression (26, 30). OVA challenge did not significantly alter γ_c expression on either male or female alveolar macrophages (Fig. 2A). Because there is no reliable Ab to detect mouse IL-13Rα1 by FACS analysis, we measured IL-13Rα1 and IL-13Rα2 transcripts by qPCR in RNA extracted from macrophages lavaged from male and female mouse lungs following OVA challenge. We found more mRNA for the IL-13Rα1 chain in female macrophages than in male macrophages following OVA challenge, although this difference was not statistically significant (Fig. 2B). Although sex differences in IL-13Rα2 expression have been reported in splenic macrophages (31), IL-13Rα2 mRNA was not detectable in alveolar macrophages from either group (data not shown). Expression of mRNA for IL-4Rα and γ_c mirrored the surface protein expression found on alveolar macrophages by FACS (Fig. 2B).

The engagement of ERs has been associated with wound-healing activity in macrophages and M2 gene expression in vitro (32). To determine whether differential expression of sex hormone receptors could account for the sex differences in M2 responses following OVA challenge, we measured the expression of ERα, ERβ, and androgen receptor by Western blot and qPCR. We used an adherence protocol to enrich alveolar macrophages from other cellular infiltrates found in the BAL of allergic animals from ∼10 to ∼80% of total cellular content (Supplemental Fig. 3). For detection of ERα by Western blot, we used the polyclonal ERα Ab (MC-20) raised against the C terminus of mouse ERα that detects the full-length 66-kDa isoform of ERα as well as at the previously described 61-kDa MC-20 reactive protein (Fig. 2C, upper panel) (33). There were no differences in ERα expression in alveolar macrophages in naive male and female animals (Fig. 2C, left panel). However, the expression of ERα in alveolar macrophages from male mice was reduced following challenge with OVA (Fig. 2C, right panel). ERα consists of several isoforms in humans and mice that arise from splice variants and the use of alternative transcription start sites (reviewed in Ref. 34). We therefore used a qPCR primer set that recognizes the hinge and dimerization regions present in all ERα isoforms (66, 46, and 36 kDa in mice) for this analysis. Intriguingly, female alveolar macrophages from control C57BL/6 mice expressed less mRNA for ERα (Esr1) than did male macrophages (Fig. 2D). There was a trend to increased ERα mRNA expression in alveolar macrophages from female mice following OVA challenge (Fig. 2D). Again, male alveolar macrophages exhibited a statistically significant reduction in expression of mRNA for ERα expression following OVA challenge (Fig. 2D).

Alveolar macrophages from naive male and female mice express similar levels of ERα. However, differences in the amount of ERα in alveolar macrophages may not necessarily reflect responsiveness to ERα ligands. Therefore, we tested the responsiveness of alveolar macrophages from male and female mice to estrogen and the ERα agonist PPT. BAL macrophages from male and female mice were stimulated with either estrogen or PPT for 24 h. The expression of a known estrogen-responsive gene in macrophages, VCAM1 (35), was measured by qPCR. Alveolar macrophages from female mice exhibited enhanced basal expression of VCAM1, most likely reflecting differences in circulating estrogen (Fig. 2C, right panel). Stimulation with PPT increased VCAM1 expression in both sexes, although female alveolar macrophages exhibited much higher expression. Although male alveolar macrophages did not exhibit overt induction of VCAM1 in response to estrogen, alveolar macrophages from female mice did.

ERβ has been shown to enhance M1 gene expression and suppress M2 gene expression (32). Expression of mRNA for ERβ (Esr2) increased with OVA challenge in both sexes, particularly in macrophages from male animals, although this was not statistically significant (Fig. 2D). Interestingly, androgen receptor expression was dramatically increased in alveolar macrophages from both males and females following OVA challenge. Taken together, these data indicate that female mice exhibit enhanced M2 gene expression in vivo during allergic lung inflammation. This may be at least partially accounted for by the increased surface expression of IL-4Rα and ERα following OVA challenge in alveolar macrophages from female mice.

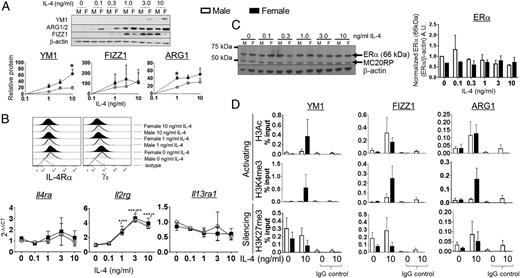

After observing that there was a sex difference in the M2 polarization of alveolar macrophages in the mouse model of allergic lung inflammation, we used a reductionist approach to determine whether the sex differences were an intrinsic property of macrophages derived from male or female animals rather than the environment within the allergic lung. To address this, we employed an in vitro model using BMMs from male and female C57BL/6 mice. These cells were differentiated in culture for 10 d (in the absence of exogenous hormones) prior to stimulation with IL-4. We measured M2 gene expression by Western blot following stimulation with increasing concentrations of IL-4 for 48 h. BMMs from female mice exhibited significantly higher expression of the canonical mouse M2 genes, YM1 and ARG1, in a concentration-dependent manner in response to IL-4 compared with BMMs from male mice (Fig. 3A). Interestingly, the induction of FIZZ1, another hallmark mouse M2 gene, in response to IL-4 did not seem to exhibit female dominance. FIZZ1 has been demonstrated to limit Th2 responses to worm infection in vivo (36, 37), although its precise role in allergic lung inflammation is not fully understood. We also looked for sex differences in M2 polarization in response to IL-13. Although a similar female-dominant M2 gene expression is observed with IL-13 stimulation, the magnitude of gene induction was much lower than it is with IL-4 (data not shown), as we observed previously (26). These data suggest that macrophages exhibit sex hormone–independent differences in the degree of M2 polarization in response to IL-4. To test whether changes in IL-4R expression accompanied the increased M2 gene expression in these in vitro experiments, we measured the expression of IL-4Rα, γ_c, and IL-13Rα1 by FACS and qPCR. As expected, IL-4 treatment resulted in the progressive downregulation of surface IL-4Rα and γ_c in BMMs due to receptor internalization, with no apparent sex differences (Fig. 3B, upper panel) (38, 39). Interestingly, the amount of mRNA for γ_c, but not IL-4Rα or IL-13Rα1, increased in a concentration-dependent manner with IL-4 stimulation in both male and female macrophages (Fig. 3B, lower panel). We also used Western blot to measure expression of ERα in the BMM to determine sex differences in the effect of IL-4 exposure on ER expression. Treatment with IL-4 did not change ERα expression in BMMs from male or female mice (Fig. 3C).

Previous studies have demonstrated that the induction of M2 genes by IL-4 involves epigenetic control of M2 gene expression, involving histone H3 acetylation and trimethylation of H3 K4 as well as the reciprocal reduction of trimethylated H3 K27 (25, 40, 41). Acetylation of H3 and trimethylation of H3 K4 are characteristic of transcriptionally active chromatin (reviewed in Ref. 42). Because we had determined that M2 gene expression was different between female and male macrophages following IL-4 stimulation, we hypothesized that there were epigenetic differences in the promoters of the M2 genes in macrophages from males and females. BMMs from male and female mice were stimulated with IL-4 for 48 h, and chromatin was harvested and analyzed for histone modifications at the YM1, FIZZ1, and ARG1 promoters by ChIP-qPCR. Female BMMs exhibited dramatic increases in H3Ac and H3K4me3 at the YM1 promoter relative to male BMMs (Fig. 3D, upper and middle panels, black bars). Likewise, females exhibited reduced repressive H3K27me3 at the YM1 promoter (Fig. 3D, bottom panel, black bar). Acetylation of H3 at the FIZZ1 and ARG1 promoters did not exhibit sex differences, although the Arg1 promoter in female macrophages did exhibit enhanced trimethylation of H3K4 and a reduction of trimethylation of H3K27 compared with macrophages from male mice (Fig. 3D, middle and lower panels). Together these data suggest that M2 gene promoters are epigenetically regulated in a sex-specific manner when macrophages are stimulated with IL-4.

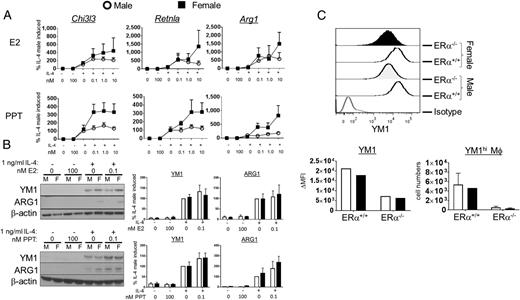

We have shown that M2 polarization, in vitro with IL-4 and in vivo in a mouse model of allergic lung inflammation, exhibits sex differences. ERα signaling has previously been shown to enhance M2 gene expression and wound-healing responses in macrophages (32). Next, we determined the effect of engagement of ERα with an ERα-specific agonist on M2 gene expression in IL-4–polarized BMMs from male and female mice. To this end, we exposed male and female BMMs to increasing concentrations of estrogen or the selective ERα agonist PPT for 16 h prior to a 48-h stimulation with IL-4. We then measured M2 gene expression by qPCR and Western blot. Estrogen modestly increased M2 gene expression in both male and female BMMs (Fig. 4A, 4B, upper panels). PPT-treated BMMs from female mice (Fig. 4A, 4B, lower panels, black squares) exhibited a concentration-dependent increase in the amount of IL-4–induced mRNA for all three M2 genes compared with PPT treatment alone. Male BMMs, however, did not exhibit PPT-enhanced M2 gene mRNA following IL-4 treatment (Fig. 4A, lower panels, open circles). However, IL-4–stimulated BMMs from both male and female mice exhibited increased YM1 and ARG1 protein following pretreatment with PPT (Fig. 4B, lower panels). The different responses to estrogen and PPT may be due either to regulatory signaling through other inhibitory ERs, such as ERβ and/or G protein–coupled ER-30, or to differences in EC₅₀ between PPT and E2 on ERα activity (32, 43–45). The ERβ agonist, diarylpropionitrile, had no effect on IL-4–induced M2 gene expression (data not shown). These data suggest that engaging ERα enhanced the capacity of female macrophages to polarize to an M2 phenotype while having little effect on male macrophages.

Our in vitro ER-agonist data suggest that ERα is the estrogen-recognizing receptor that enhances M2 gene expression. We hypothesized that mice lacking functional ERα in their macrophages would exhibit impaired M2 polarization in vivo when challenged with OVA. To test this, we employed a LysM-CRE ERα^flox/flox mouse to compare M2 polarization in an ERα-sufficient and -deficient model. We challenged LysM-CRE ERα^flox/flox as well as CRE⁻ ERα^flox/flox littermate control mice with OVA and measured YM1 expression in alveolar macrophages. ERα deficiency resulted in a dramatic reduction of YM1 expression in both male and female mice (Fig. 4C). The abundance of YM1^hi alveolar macrophages was also dramatically reduced in ERα-deficient mice following challenge with OVA (Fig. 4C). Taken together, these data suggest that ERα is instrumental in promoting M2 polarization in vivo. Thus, an estrogen-rich environment may enhance M2 polarization through engagement of ERα in women and can thereby contribute to sex differences in asthma in humans.

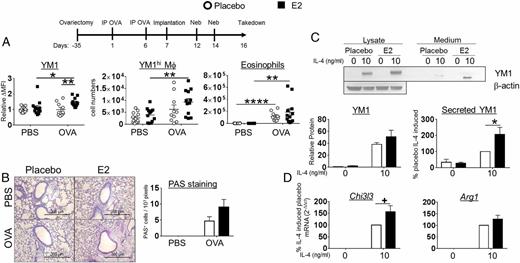

We have demonstrated female-dominant M2 polarization in vivo and in vitro as well as the enhancing effects of estrogen and PPT on M2 polarization in macrophages from female mice in vitro. Next, we asked whether estrogen would enhance M2 polarization in vivo following allergen challenge. To address this, we implanted female mice that had undergone bilateral ovariectomy surgery (OVx mice) with either placebo- or estrogen-secreting s.c. pellets (see scheme of protocol, Fig. 5A). Bilateral ovariectomy surgery was performed at 3 wk of age, prior to reproductive maturation and estrogen and progesterone production to avoid the epigenetic effects of estrogen on M2 promoters that we observed in vitro (Fig. 3C). Furthermore, to avoid confounding effects of estrogen on T cell priming, we implanted pellets on day 7 after the mice were sensitized to OVA. After two challenges with aerosolized OVA, the mice were euthanized and assessed for allergic lung inflammation by histology as well as macrophage polarization by FACS. First, to validate successful pellet implantation, we collected serum from each mouse and measured estrogen concentrations. Placebo-implanted mice exhibited a mean serum estrogen concentration of 8.236 ± 1.322 pg/ml (n = 24 mice), and E2-implanted mice exhibited a mean serum estrogen concentration of 990.167 ± 87.813 pg/ml (n = 24 mice). This corresponded to a mean uterine weight of 54.077 ± 3.199 mg (n = 24 mice) in the E2-implanted mice, whereas the placebo group lacked defined uterine structure on day 16.

The alveolar macrophages from female OVx mice implanted with E2-secreting pellets exhibited increased YM1 expression compared with placebo pellet-implanted mice following allergen challenge (Fig. 5A, left panel). Estrogen-implanted mice also had more YM1^hi alveolar macrophages following allergen challenge compared with placebo-implanted mice (Fig. 5A, middle panel). Estrogen implantation resulted in increased eosinophil infiltration into the alveolar space compared with mice lacking estrogen, after allergen challenge (Fig. 5A, right panel). Mucus production quantified by PAS staining was elevated in the estrogen-implanted allergic mice compared with the placebo group (Fig. 5B). To test whether estrogen had long-term effects on macrophage polarization, we measured YM1 in IL-4–stimulated BMMs harvested from OVx mice implanted with either placebo- or E2-secreting pellets. These BMMs were differentiated in the absence of exogenous hormones for 10 d prior to stimulation. Cellular expression and secretion of YM1 into the culture medium were significantly increased in BMMs from E2 pellet–implanted mice compared with cells from placebo-implanted mice (Fig. 5C, upper and middle panel). IL-4–stimulated BMMs from E2 pellet–implanted mice also exhibited increased expression of Chi3l3 and Arg1 mRNA compared with the placebo-implanted group (Figs. 5D). These data suggest that estrogen has long-lasting effects on M2 gene promoter activity even after removal of the cells from the animal for 10 d and when exogenous hormone is absent. These data may also explain the sex differences that we observed in histone modifications at M2 gene promoters in IL-4–stimulated BMMs from male and female mice. Together, these findings implicate estrogen in eliciting sex differences in asthma by enhancing M2 polarization in the allergic lung (Fig. 6).

Asthma is a major public health issue that burdens more women than men. Asthma exhibits sex differences with respect to prevalence and severity, affecting mostly boys in childhood and women in adulthood. These sex differences implicate sex hormones like estrogen in enhancing allergic inflammation in the lung. Others have shown that M2-activated alveolar macrophages are critical in recruiting inflammatory cells like eosinophils and in secreting factors that promote tissue remodeling and fibrosis in animal models of asthma (19, 21, 46). Likewise, the sputum and airway walls of asthmatic patients are rich with M2-polarized alveolar macrophages, and their expression of M2 markers like CD206 and CCL17 positively correlates with asthma severity (47, 48). Inhaled glucocorticoid treatment is a mainstay therapy used to dampen inflammatory gene expression by leukocytes, including macrophages, in asthmatic patients (49). However, women are more likely to develop severe, steroid-resistant asthma than men, and this may be due in part to interactions between estrogen and glucocorticoid receptors (50, 51). It is therefore paramount to develop a detailed understanding of how sex hormones like estrogen skew macrophage polarization and function and how hormones contribute to sex differences in alveolar macrophage polarization and function in asthma.

We employed an acute mouse model of allergen challenge to assess sex differences in macrophage polarization, as these are key early events that determine the outcome of allergic lung inflammation in the chronic setting (21). There are differences between acute and chronic models of allergic lung inflammation in mice. Notably, repeated challenge with allergen leads to a dampening of Th2 cytokine production and cellular infiltration into the lungs of mice (52, 53). We were especially interested in the early cellular and molecular events that shape the inflammatory response in the allergic lungs. However, it is clear that M2 macrophages are enriched and persist chronically in the lungs of people with asthma (18, 47, 48, 54–57).

In this work, we undertook that endeavor using in vitro and in vivo models of M2 polarization. In this study, we show differences in macrophage polarization, at the cellular and molecular level, depending on the sex of the animal from which the cells were obtained. We report that alveolar and bone marrow–derived macrophages from female mice expressed higher amounts of the classical M2 markers, YM1 and ARG1, following stimulation with IL-4 than do macrophages from male mice (summarized in Fig. 6). We further demonstrate that engagement of ERα by estrogen or the ERα agonist, PPT, enhanced M2 gene expression to a greater degree in macrophages from female mice compared with macrophages from male mice. Finally, we report that this sex difference is relevant in vivo in a mouse model of allergic lung inflammation, in which female mice exhibit enhanced YM1 expression in alveolar macrophages following allergen challenge, compared with male mice. The expression of the M1 marker iNOS was not different between male and female macrophages following allergen challenge, suggesting that M2 polarization may be uniquely regulated in a sex-specific manner. Furthermore, ovariectomy reduced M2 polarization in vivo, and the reintroduction of estrogen into OVx mice restored M2 polarization of BAL macrophages. ERα is most likely the major estrogen-recognizing receptor to drive M2 polarization as we show that mice with ERα deficiency in their macrophages exhibited dramatic reduction in YM1 expression in vivo following challenge with OVA. We show that these sex differences coincide with increased expression of IL-4Rα and ERα on female macrophages following challenge with aerosolized OVA. The differential pattern of IL-4R and ER expression in males and females suggests that these two networks may function synergistically to promote M2 polarization. Finally, we demonstrate that macrophages from female mice exhibit more histone marks of transcriptionally active chromatin at M2 gene promoters compared with males. This most likely reflects chromatin that is poised to respond to IL-4/IL-13 signals in macrophages from female mice. It is also possible that ERs modulate the promoters of M2 genes, as they are known to interact with histone acetyl transferases, and thus regulate macrophage polarization through epigenetic mechanisms. Our work also underscores the importance and necessity of the new National Institutes of Health directive to understand relevant biological variables such as sex in biomedical research. It is clear that sex and sex hormones have biological consequences on immune cells (58). Separating studies by sex, and understanding and reporting which sex was used for experiments, is critical for interpreting data.

The increase of IL-4Rα expression in alveolar macrophages from allergic female mice and the reduction of ERα expression in alveolar macrophages from allergic male mice may result in an overall female-dominant expression of M2 genes in vivo following challenge with OVA. More work needs to be done to dissect sex differences in IL-4 signaling in macrophages and how estrogen can affect these signaling events. Estrogen signaling is complex, involving genomic and nongenomic pathways. Therefore, such studies would have to be comprehensive enough to accommodate these features and would have to acknowledge that acute exposure to estrogen may have different consequences on M2 signaling than chronic exposure to the hormone. We cannot detect any effects of acute or chronic estrogen exposure on IL-4–induced STAT6 phosphorylation in macrophages (data not shown). However, estrogen may also impact the IRS2/Akt pathway and most likely also regulates the assembly of histone-modifying factors at M2 promoters. These questions will be addressed in further studies.

These findings have major implications for diseases in which skewing of macrophages serves a pathological role and for which sex is a factor. For example, tumor-associated macrophages (TAMs) acquire an M2-like phenotype and remodel the extracellular matrix to promote tumor metastasis. TAM presence is enhanced in ER⁺ breast cancers and leads to increased epithelial–mesenchymal transition (59). It is not clear whether estrogen antagonism of TAMs would be of therapeutic value, but it may diminish the tumor-promoting properties in these cells. Consistently, women are at greater risk of small cell and adenocarcinoma lung cancers than men (60, 61). Furthermore, these cancers are promoted by factors such as hormone replacement therapy and are characterized by M2-polarized macrophages (62, 63).

Understanding the impact of estrogen on sex-biased diseases is paramount for guiding the development of effective therapies. One major challenge to estrogen-based therapeutics is maximizing cell specificity and minimizing unintended impact on reproductive function. Women are burdened with the highest incidence of allergy (64, 65) and autoimmune diseases (66–68). Generally speaking, women respond to infection and vaccination with increased Ab production compared with men, and this reflects a predisposition to a Th2 bias in women compared with a Th1 bias in men (69–71). However, ERs are expressed in virtually all leukocytes and can thus impact all aspects of immunobiology. Therefore, understanding the molecular mechanisms that cause estrogen sensitivity and alter cellular function in macrophages in women is an important goal. The impact of estrogen on innate and adaptive immunity is context and cell specific. For example, estrogen is known to downregulate the expression of the autoimmune regulator, thereby compromising central tolerance and promoting autoimmune disease in women (72). Estrogen enhances Th1 and Th2 cytokine production by T cells and stimulates Ab production by B cells, in vitro (73–76). However, estrogen pellet implantation in experimental autoimmune encephalomyelitis mice suppresses Th1 cytokine production by CD4 T cells in an ERα-dependent manner (73). Estrogen enhances IL-6 and IL-10 production in splenic dendritic cells and LPS/CpG-induced IL-12 production in bone marrow–derived dendritic cells (77, 78). In BMMs, estrogen seems to promote M2 gene expression while suppressing M1 gene expression (32, 79–81). In our model, estrogen primed macrophages for enhanced M2 gene induction following stimulation with IL-4, and this effect is long-lived. Macrophages from female mice are more sensitive to this priming than their male counterparts. Consistent with the idea that estrogen skews macrophages to an M2 phenotype, estrogen treatment downregulates TNF-α, CCR2, and CCL3 in the spinal cord to alleviate Th1/Th17-mediated pathology associated with multiple sclerosis in a mouse experimental autoimmune encephalomyelitis model (82). This propensity to an enhanced M2 phenotype in female mice in our model of allergic lung inflammation needs to be addressed in asthmatic women. Our work points to alternative therapeutic avenues that could be harnessed to effectively antagonize this estrogen-enhanced macrophage phenotype by pharmacological intervention. Women are less responsive to corticosteroid treatment than men and may therefore benefit from therapy that targets the ER or pathways downstream of the ER (83).

The work discussed in this study has shed light onto the effects of estrogen on the cellular and molecular function of alveolar and bone marrow–derived macrophages. However, there are many avenues left to explore in this regard. It remains unclear exactly how estrogen modulates macrophage responsiveness to Th2 cytokines. ERs can alter gene expression by directly engaging estrogen response elements, heterodimerizing with other transcriptional regulators, and signaling through protein kinases. Thus, the molecular biology behind the sex differences in macrophage polarization reported in this work is most likely complex and multifaceted. ERs may enhance macrophage polarization by recruiting histone acetylases and demethylases to M2 gene promoters. It is critical to identify the histone-modifying and transcription factor–binding partners associated with the ERs in initiating the transcription of M2 genes in macrophages and understanding how estrogen affects this interaction. This will enable the targeting of a specific protein–protein interaction using small-molecule inhibitors to suppress M2 gene expression in alveolar macrophages in the lungs of asthmatic women. Understanding the complex interaction between IL-4 and estrogen signaling in macrophages will help develop therapies for various allergic and autoimmune diseases that disproportionately burden women. Further research is needed to develop an in-depth molecular understanding of estrogen signaling in macrophages and its role in contributing to sex differences in many different diseases.

We thank Mireya Becerra-Diaz and Sarah M. McCormick for assisting with sample collection and processing, and intellectual contributions to this project. We extend our gratitude to the University of Virginia Center for Research in Reproduction Ligand Assay and Analysis Core for serum estrogen measurements. We thank Patricia Wilcox at the Molecular and Comparative Pathobiology Histology Laboratory at the Johns Hopkins University School of Medicine for help with paraffin embedding, slicing, and staining tissue for histological analysis.

The authors have no financial conflicts of interest.
